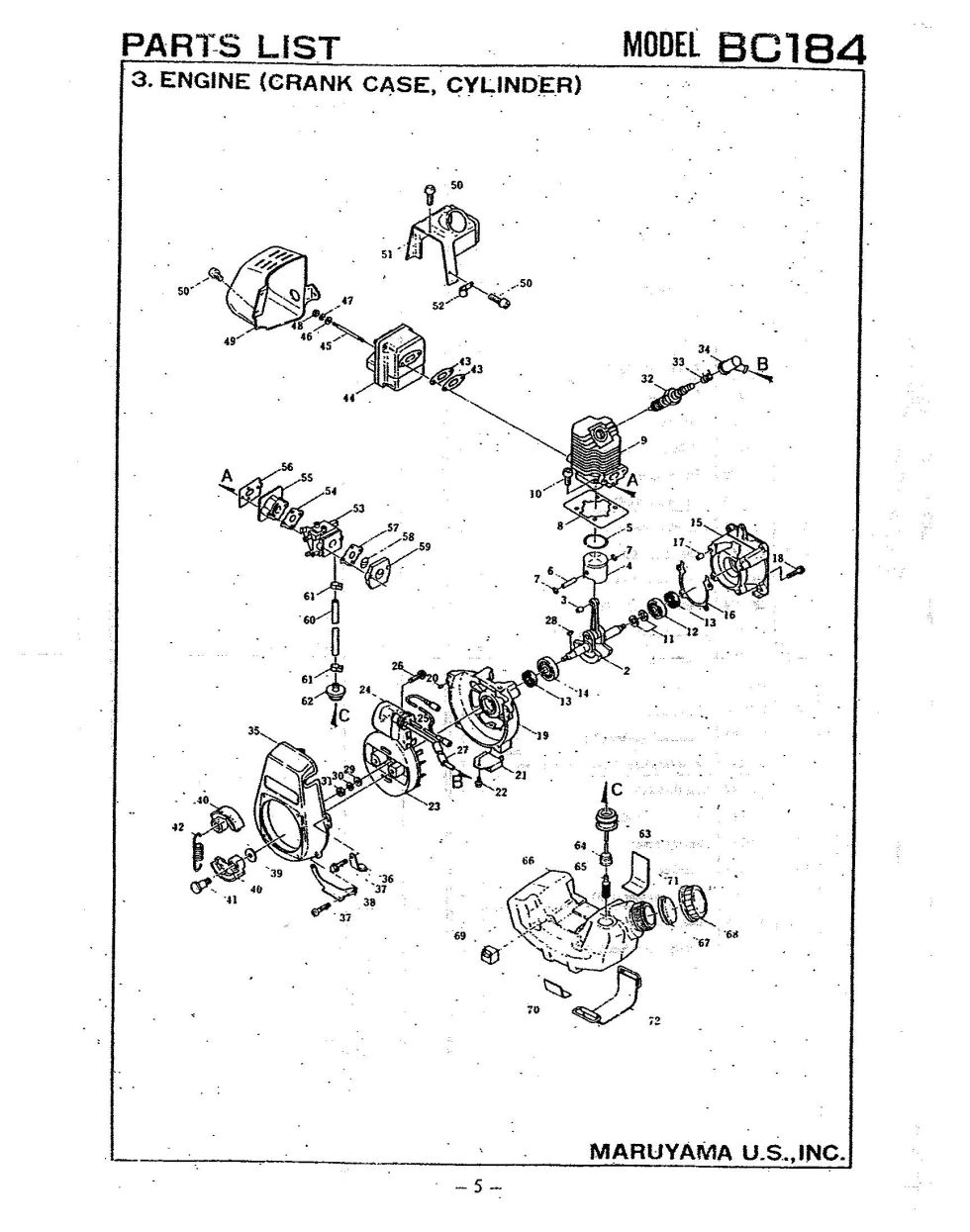

Home :: Parts Lookup :: Trimmers and Brushcutters :: BC184 Engine (Crankcase, Cylinder) breadcrumb_end

Model Type:

Model:

Assembly:

All Diagrams for this Model

Position number	SKU	Product title	Price
2	944599	944599 - NLA CRANK SHAFT ASSY	$208.99
3	944153	944153 - NLA BEARING	$12.99
4	944148	944148 - NLA PISTON	$32.99
5	944149	944149 - NLA PISTON RING	$13.99
6	944150	944150 - NLA PISTON PIN	$6.99
7	944151	944151 - NLA SNAP RING	$2.99
8	944129	944129 - NLA GASKET	$13.99
9	944128	944128 - NLA CYLINDER	$133.99
10	944130	944130 - NLA SCREW	$2.99
12	943842	943842 - NLA BALL BEARING	$16.99
13	943843	943843 - NLA OIL SEAL	$13.99
14	943841	943841 - NLA BALL BEARING	$15.99
15	996397	996397 - NLA CRANKCASE	$63.99
16	944159	944159 - NLA GASKET	$2.99
18	943190	943190 - SCREW	$2.99
19	944553	944553 - NLA CRANK CASE	$75.99
21	996388	996388 - NLA IGNITER	$136.99
22	944184	944184 - SCREW	$2.99
23	944697	944697 - NLA FLYWHEEL	$134.99
24	996398	996398 - USE: 996430	$76.99
26	944183	944183 - BOLT	$2.99
27	944191	944191 - NLA TUBE	$2.99
29	071120	071120 - WASHER	$2.99
30	901545	901545 - USE: 12502	$2.99
31	943863	943863 - NLA NUT	$2.99
32	943982	943982 - USE: 573183	No Longer Available Obsolete.
33	943771	943771 - NLA SPRING	$2.99
34	943278	943278 - NLA SPARK PLUG CAP	$9.99
35	996400	996400 - NLA FAN HOUSING	$56.99
36	944162	944162 - NLA CABLE BRACKET	$6.99
37	943462	943462 - NLA SCREW	$2.99
38	944171	944171 - TANK BRACKET	$2.99
39	943837	943837 - NLA WASHER	$6.99
40	943647	943647 - NLA CLUTCH SHOE	$25.99
41	943646	943646 - NLA CLUTCH BOLT	$11.99
42	943934	943934 - NLA CLUTCH SPRING	$10.99
43	944145	944145 - NLA GASKET	$10.99
44	944384	944384 - NLA MUFFLER ASSY	$32.99
45	944144	944144 - NLA STUD	$7.99
46	071107	071107 - Obsolete - USE PART #073345	No Longer Available Obsolete.
47	943174	943174 - USE: 944492	$2.99
48	943949	943949 - NUT	$2.99
49	996391	996391 - NLA MUFFLER COVER	$19.99
50	943461	943461 - SCREW	$2.99
51	944387	944387 - NLA CYLINDER COVER	$18.99
52	944185	944185 - NLA CLAMP	$9.99
53	996402	996402 - NLA CARBURETOR ASSY	$114.99
54	944141	944141 - NLA GASKET	$2.99
55	996392	996392 - NLA INSULATOR	$10.99
56	944165	944165 - NLA GASKET	$2.99
58	944140	944140 - NLA SCREEN	$2.99
59	944598	944598 - NLA SPACER	$13.99
60	944176	944176 - NLA TUBE FUEL PICK U	$2.99
61	944602	944602 - NLA CLIP	$7.99
62	944168	944168 - NLA JOINT	$6.99
63	944167	944167 - USE: 591581	$20.99
64	943586	943586 - NLA CLAMP	$7.99
65	944166	944166 - NLA FILTER ASSY	$14.99
66	944601	944601 - NLA FUEL TANK (NO SU	$69.99
67	943977	943977 - USE: 591580	$21.99
68	944398	944398 - NLA TANK CAP	$17.99
69	944172	944172 - NLA DAMPER	$8.99
70	944175	944175 - NLA DAMPER	$2.99
71	944174	944174 - NLA DAMPER	$2.99
72	944173	944173 - NLA TANK BAND	$23.99
