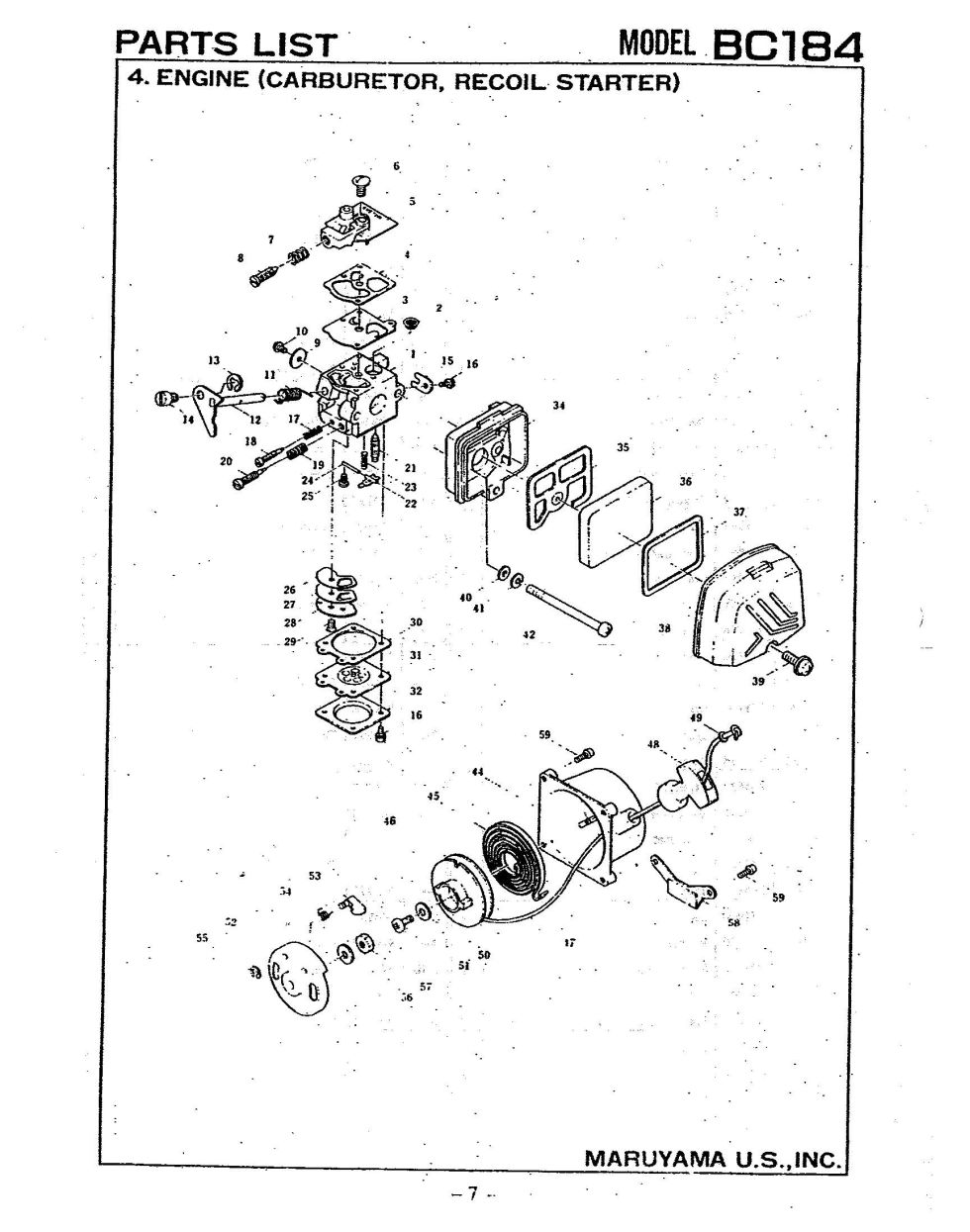

Engine (Carburetor, Recoil Starter)

Position number SKU Product title Price
1 996402 996402 - NLA CARBURETOR ASSY
$114.99
2 944198 944198 - NLA FILTER
$9.99
3 944197 944197 - USE: 416058
$11.99
4 944196 944196 - USE: 416057
$12.99
5 996403 996403 - NLA PUMP COVER
$22.99
6 944193 944193 - NLA SCREW
$6.99
7 944195 944195 - NLA SPRING
$10.99
8 944194 944194 - NLA ADJUST SCREW
$8.99
9 996404 996404 - NLA THROTTLE VALVE
$6.99
10 944204 944204 - NLA SCREW
$6.99
11 944200 944200 - NLA SPRING
$12.99
12 944199 944199 - NLA THROTTLE SHAFT
$22.99
13 944202 944202 - NLA SNAP RING
$2.99
14 944201 944201 - NLA CABLE ADJUSTER
$5.99
15 944222 944222 - NLA CLIP
$9.99
16 944221 944221 - NLA SCREW
$6.99
17 944206 944206 - NLA SPRING
$12.99
18 944205 944205 - NLA ADJUST SCREW
$17.99
19 944208 944208 - NLA SPRING
$12.99
20 944207 944207 - NLA ADJUST SCREW
$18.99
21 944213 944213 - NLA NEEDLE VALVE
$20.99
22 944214 944214 - NLA CONTROL LEVER
$7.99
23 944215 944215 - NLA SPRING
$10.99
24 944216 944216 - NLA PIN
$6.99
25 944217 944217 - NLA SCREW
$9.99
26 944211 944211 - NLA GASKET
$23.99
27 944210 944210 - NLA CIRCUIT DIAPHRAG
$12.99
28 944209 944209 - NLA CIRCUIT PLATE
$14.99
29 944212 944212 - NLA SCREW
$9.99
30 944218 944218 - NLA GASKET
$12.99
31 944219 944219 - USE: 261873
$12.99
32 944220 944220 - NLA COVER
$12.99
34 944597 944597 - NLA CASE
$20.99
35 944381 944381 - NLA AIR CLEANER PLAT
$2.99
36 944133 944133 - NLA ELEMENT
$9.99
37 944136 944136 - NLA AIR CLEANER PLAT
$2.99
38 944382 944382 - NLA AIR CLEANER CAP
$8.99
39 944137 944137 - SCREW
$2.99
40 071104 071104 - WASHER
$2.99
41 901518 901518 - SPRING WASHER
$2.99
42 944138 944138 - BOLT
$2.99
44 996406 996406 - NLA CASE
$32.99
45 944230 944230 - NLA SPIRAL SPRING
$24.99
46 944229 944229 - NLA RECOIL REEL
$19.99
48 944232 944232 - NLA RECOIL STARTER H
$15.99
49 944502 944502 - WASHER
$8.99
50 996407 996407 - USE: 071104 No Longer Available
Obsolete.
51 996395 996395 - SCREW
$2.99
52 944705 944705 - NLA PULLEY
$19.99
53 944224 944224 - NLA PAWL
$7.99
54 944706 944706 - NLA RETURN SPRING
$7.99
55 944226 944226 - USE: 13525
$2.99
56 071120 071120 - WASHER
$2.99
57 943863 943863 - NLA NUT
$2.99
58 944170 944170 - NLA TANK BRACKET
$2.99
59 943986 943986 - NLA SCREW
$2.99
