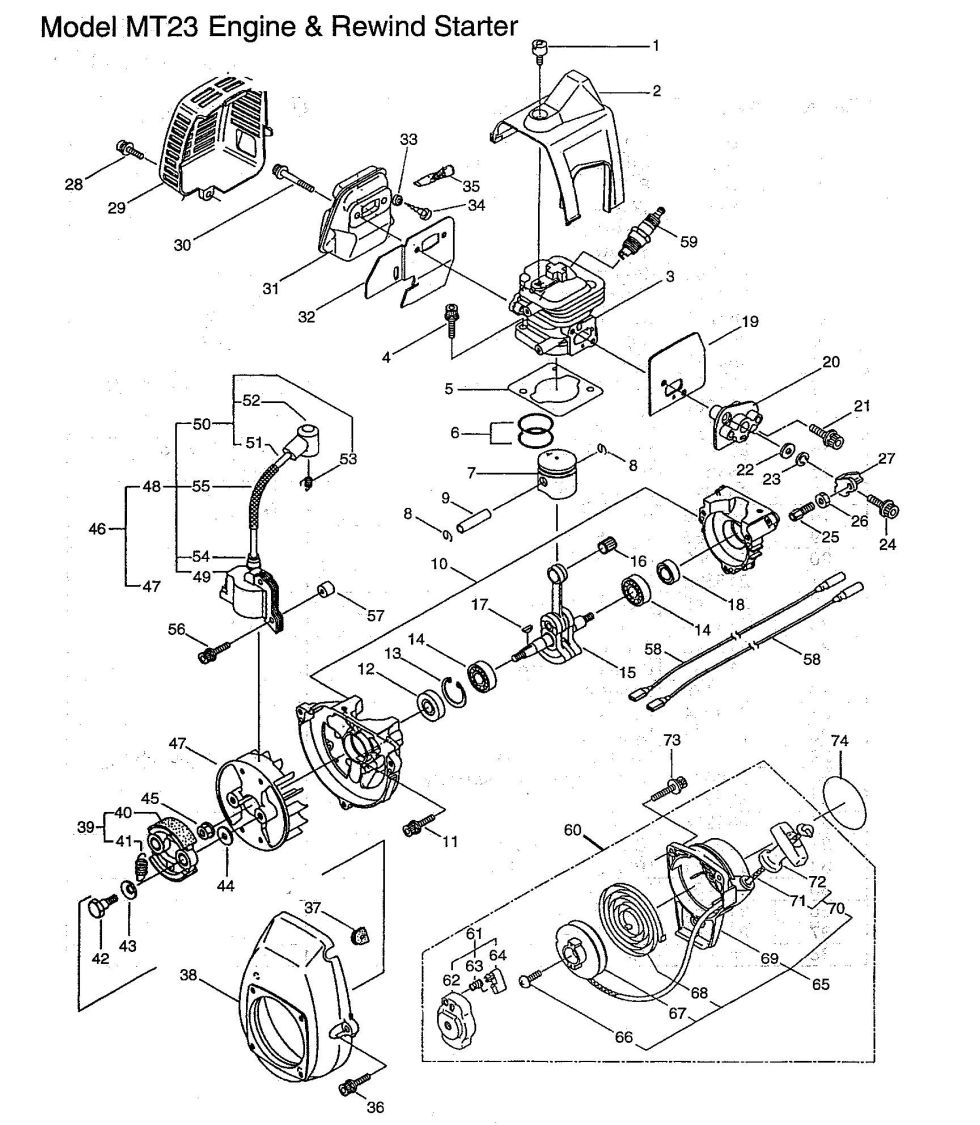

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MT23. You have selected the Engine diagram for the Maruyama MT23 M-Line Equipment. Below you will find an interactive part diagram for the MT23 Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MT23 parts not shown in this diagram you may select from one of the other MT23 part assemblies or select a different M-Line Equipment altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama M-Line Equipment parts.

Position number SKU Product title Price
.34 089530 089530 - SCREW(M3X10)
$2.99
1 264022 264022 - USE: 286349 (obsolete)
use part #286349
$2.99
2 264733 264733 - NLA CYLINDER COVER (
$22.99
3 263768 263768 - CYLINDER
$154.99
4 261250 261250 - BOLT M5X20
$2.99
5 263770 263770 - GASKET
$2.99
6 263789 263789 - PISTON RING
$7.99
7 264719 264719 - USE: 266467
$31.99
8 261576 261576 - CIRCLIP
$2.99
9 261036 261036 - PISTON PIN
$16.99
10 264312 264312 - CRANKCASE
$81.99
11 261612 261612 - BOLT
$2.99
12 262712 262712 - NLA OIL SEAL
$2.99
13 054676 054676 - SNAP RING
$2.99
14 261181 261181 - BEARING
$16.99
15 263719 263719 - CRANKSHAFT/ ROD ASSY
$153.99
16 263957 263957 - BEARING NEEDLE
$21.99
17 261076 261076 - WOODRUFF KEY
$2.99
18 262713 262713 - NLA OIL SEAL
$2.99
19 263774 263774 - GASKET
$2.99
20 263772 263772 - INSULATOR
$19.99
21 261246 261246 - CAP SCREW M5X25
$2.99
22 012487 012487 - WASHER
$2.99
23 089901 089901 - WASHER
$2.99
24 215351 215351 - CAP SCREW(M5X25)
$2.99
25 261877 261877 - ADJUSTER
$6.99
26 261878 261878 - NUT
$2.99
27 264634 264634 - STAY
$7.99
28 261607 261607 - BOLT M5X16
$2.99
29 263802 263802 - MUFFLER COVER
$19.99
30 264223 264223 - CAP SCREW(M5X40)
$2.99
31 264729 264729 - MUFFLER
$59.99
32 263777 263777 - GASKET
$22.99
33 264857 264857 - WASHER
$2.99
35 262395 262395 - SPARK ARRESTER M-LIN
$18.99
37 261202 261202 - GROMMET
$2.99
38 264732 264732 - FAN COVER
$29.99
39 264025 264025 - CLUTCH ASSY.
$24.99
40 264026 264026 - CLUTCH SHOE
$23.99
41 264028 264028 - SPRING CLUTCH
$7.99
42 264505 264505 - CLUTCH BOLT
$5.99
43 261777 261777 - WAVE WASHER
$2.99
44 261189 261189 - WASHER
$2.99
45 261077 261077 - NUT
$7.99
46 263976 263976 - MAGNETO ASSY
$185.99
47 263570 263570 - ROTOR/ FAN
$76.99
48 263978 263978 - USE: 267400
$133.99
49 263977 263977 - USE: 267401
$80.99
50 261744 261744 - USE: 267403 (obsolete)
use part #267403
$23.99
51 261071 261071 - NLA IGNITION CABLE
$10.99
52 261074 261074 - PLUG CAP
$13.99
53 261075 261075 - CONNECTOR
$2.99
54 261072 261072 - CAP
$2.99
55 261073 261073 - TUBE
$8.99
56 261256 261256 - BOLT M4X25
$2.99
57 261078 261078 - NLA SPACER -
$2.99
58 263804 263804 - USE: 283735
$2.99
59 261200 261200 - SPARK PLUG
$20.99
60 263807 263807 - RECOIL STARTER ASSY
$48.99
61 263471 263471 - STARTER PAWL ASSY
$20.99
62 263472 263472 - STARTER
$19.99
63 263474 263474 - RETURN SPRING
$2.99
64 263473 263473 - PAWL
$10.99
65 263808 263808 - RECOIL ASSY
$44.99
66 262922 262922 - SCREW
$2.99
67 261621 261621 - REEL
$14.99
68 261622 261622 - SPIRAL SPRING
$19.99
69 263913 263913 - NLA STARTER ASSY
$33.99
70 115096 115096 - ROPE/ GRIP ASSY
$19.99
71 261627 261627 - STARTER ROPE
$8.99
72 261725 261725 - STARTER GRIP
$9.99
73 261257 261257 - CAP SCREW M4X16
$2.99
74 264742 264742 - NLA LABEL
