Driveshaft Assembly

Driveshaft Assembly

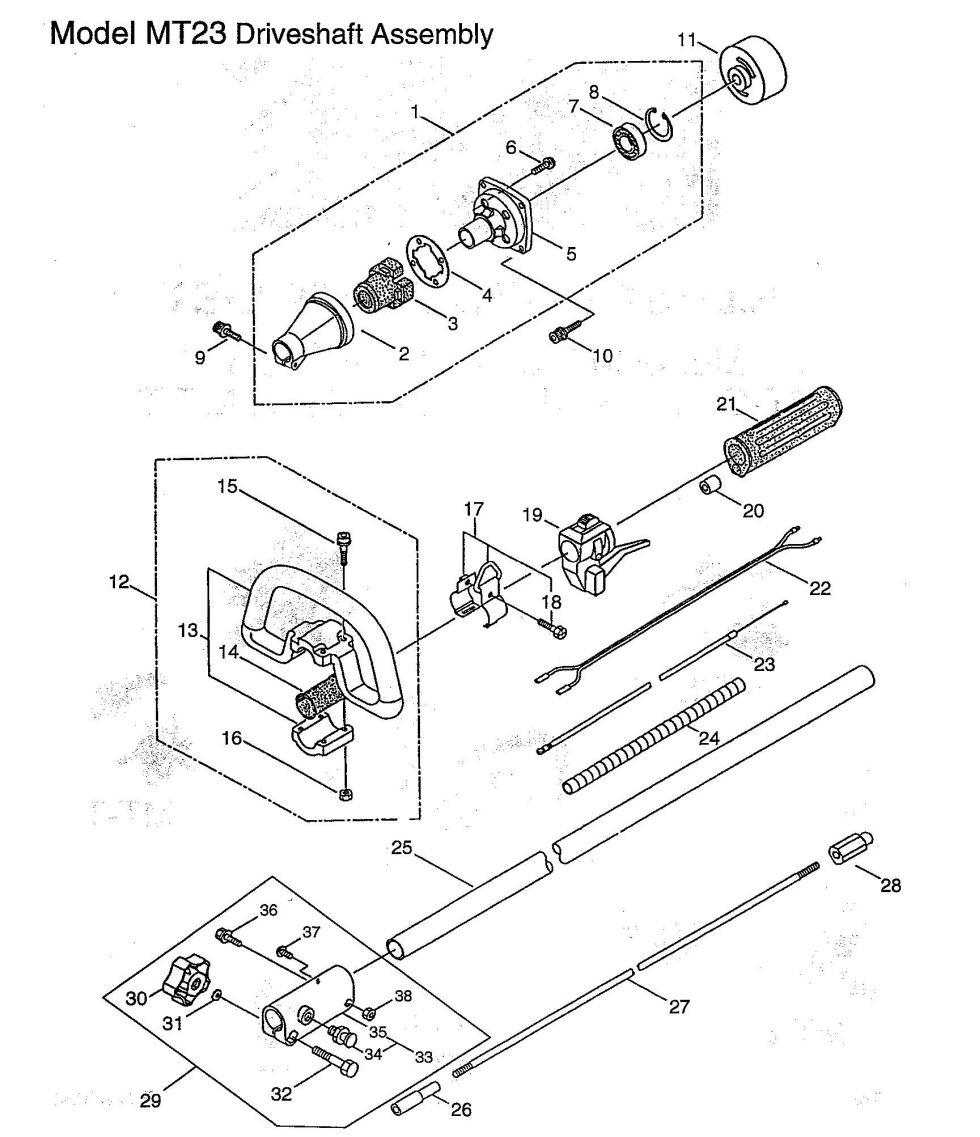

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MT23. You have selected the Driveshaft Assembly diagram for the Maruyama MT23 M-Line Equipment. Below you will find an interactive part diagram for the MT23 Driveshaft Assembly. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MT23 parts not shown in this diagram you may select from one of the other MT23 part assemblies or select a different M-Line Equipment altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama M-Line Equipment parts.

Position number SKU Product title Price
1 220061 220061 - CLUTCH CASE ASSY
$110.99
2 214593 214593 - DRIVESHAFT TUBE ADAP
$41.99
3 214162 214162 - BUFFER
$28.99
4 214163 214163 - WASHER
$11.99
5 220062 220062 - BEARING CASE
$38.99
6 092033 092033 - SCREW(M5X15)
$2.99
7 261743 261743 - USE: 102680
$21.99
8 054676 054676 - SNAP RING
$2.99
9 261246 261246 - CAP SCREW M5X25
$2.99
10 261250 261250 - BOLT M5X20
$2.99
11 054677 054677 - CLUTCH DRUM
$32.99
12 215601 215601 - LOOP HANDLE ASSY
$27.99
13 214982 214982 - HANDLE ASSY
$28.99
14 213171 213171 - PACKING
$8.99
15 215608 215608 - CAP SCREW
$2.99
16 089846 089846 - NUT M5 (obsolete)
use part #081027
$2.99
17 054691 054691 - HANGING BRACKET ASSY
$13.99
18 089738 089738 - BOLT
$2.99
19 219086 219086 - NLA THROTTLE TRIGGER (obsolete)
use part #221465
$62.99
20 214083 214083 - OUTER GUIDE
$2.99
21 215532 215532 - SHAFT GRIP
$24.99
22 213445 213445 - NLA LEAD WIRE
$13.99
23 213444 213444 - THROTTLE CABLE
$13.99
24 213548 213548 - PLASTIC TUBE
$2.99
25 219085 219085 - DRIVESHAFT TUBE
$40.99
26 215276 215276 - LOWER ADAPTER
$42.99
27 219084 219084 - DRIVESHAFT
$27.99
28 220065 220065 - NLA UPPER ADAPT
$11.99
29 219434 219434 - USE: 219489
$38.99
30 219088 219088 - CLAMPING KNOB
$27.99
31 550131 550131 - WASHER
$2.99
32 089976 089976 - BOLT
$2.99
33 219490 219490 - SHAFT COUPLER ASSY
$33.99
34 217171 217171 - PLUNGER ASSY
$19.99
35 219491 219491 - JOINT PIPE
$28.99
36 215351 215351 - CAP SCREW(M5X25)
$2.99
37 219087 219087 - CAP SCREW
$2.99
