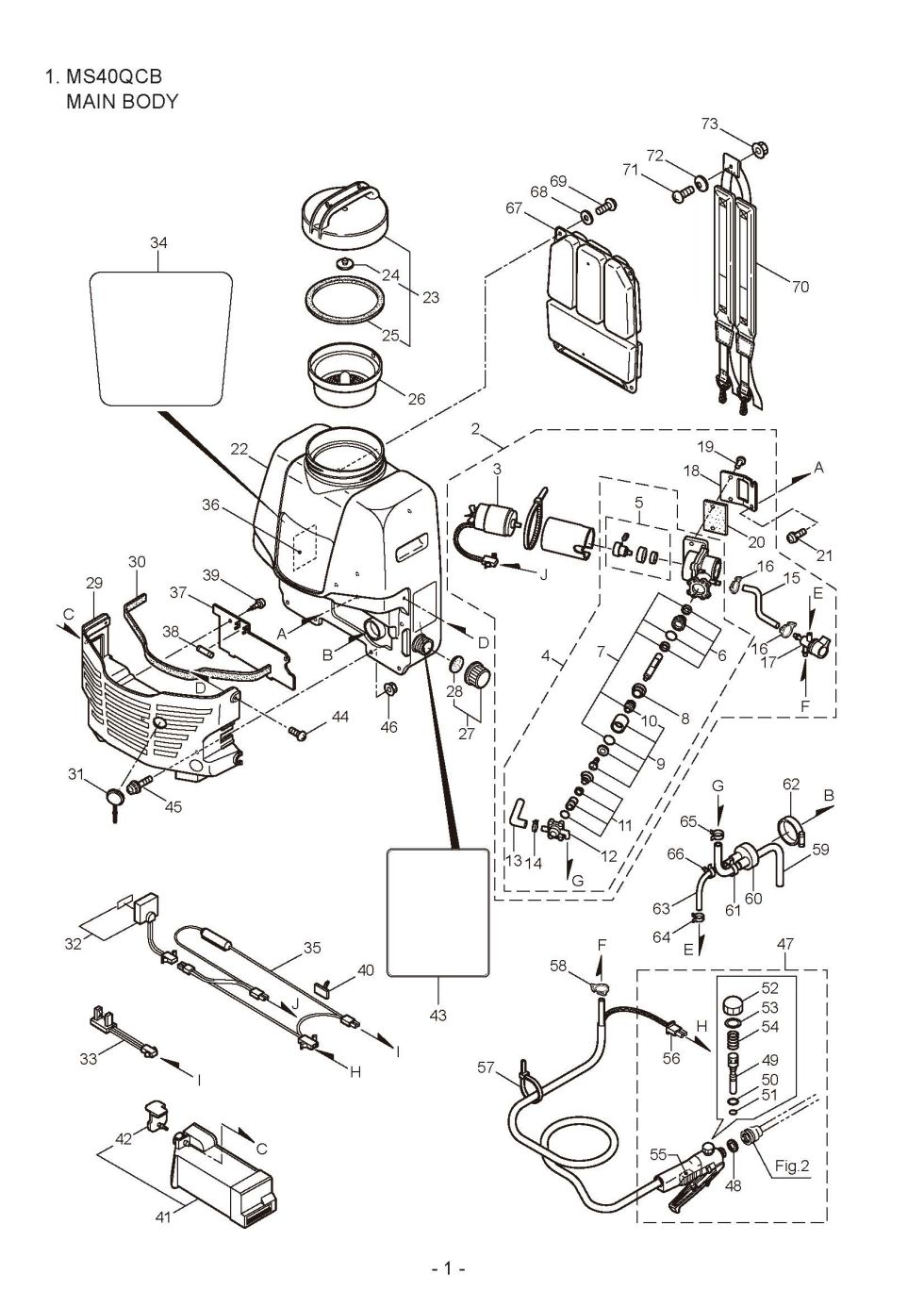

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS40QCB. You have selected the Main Body diagram for the Maruyama MS40QCB Battery Operated Sprayers. Below you will find an interactive part diagram for the MS40QCB Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS40QCB parts not shown in this diagram you may select from one of the other MS40QCB part assemblies or select a different Battery Operated Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Battery Operated Sprayers parts.

Position number SKU Product title Price
2 127125 127125 - PUMP ASSY
$121.99
3 411201 411201 - MOTOR
$92.99
4 403168 403168 - PUMP ASSY
$169.99
5 641928 641928 - CAM SET
$24.99
6 409681 409681 - SEAL SET
$18.99
7 599682 599682 - PACKING SET
$18.99
8 123256 123256 - SEAL RETAINER
$2.99
9 641931 641931 - SUCTION BLOCK ASSY
$29.99
10 121434 121434 - PISTON PACKING
$23.99
11 599680 599680 - DISCHARGE BLOCK ASSY
$19.99
12 116287 116287 - CYLINDER HEAD
$11.99
13 125901 125901 - CAP
$2.99
14 043832 043832 - HOSE BAND #17
$2.99
15 125873 125873 - HOSE
$10.99
16 125370 125370 - CLAMP
$2.99
17 123290 123290 - PRESSURE REGULATOR V
$17.99
18 125889 125889 - PLATE
$2.99
19 123461 123461 - FASTENER
$2.99
20 116304 116304 - BUFFER
$2.99
21 126760 126760 - SCREW M6X10
$2.99
22 126240 126240 - CHEMICAL TANK
$114.99
23 125876 125876 - CAP, CHEMICAL TANK
$20.99
24 126668 126668 - MACHINED DISC
$2.99
25 123216 123216 - PACKING
$5.99
26 123217 123217 - STRAINER
$10.99
27 123417 123417 - CAP ASSY
$2.99
28 123418 123418 - PACKING 27XT2
$2.99
29 125882 125882 - BRACKET
$24.99
30 125884 125884 - PACKING
$2.99
31 126247 126247 - CAP
$2.99
32 124384 124384 - USE: 130294
$31.99
33 126179 126179 - WIRE HARNESS
$20.99
35 126010 126010 - WIRE HARNESS
$17.99
37 125887 125887 - COVER
$2.99
38 115385 115385 - FUSE
$2.99
39 127388 127388 - SCREW M5X12
$2.99
40 146127 146127 - CLAMP
$2.99
41 129191 129191 - BATTERY ASSEMBLY (se
$125.99
42 126750 126750 - CAP
$2.99
43 127870 127870 - LABEL
$15.99
44 127389 127389 - SCREW M6X10
$2.99
45 127390 127390 - SCREW M6X25
$2.99
46 126756 126756 - NUT M6
$2.99
47 642038 642038 - SHUTOFF ASSY
$82.99
48 115865 115865 - PACKING 12X17.5XT3
$2.99
49 117547 117547 - VALVE
$2.99
50 124612 124612 - O RINGS
$2.99
51 014194 014194 - O-RING
$2.99
52 117070 117070 - CAP
$2.99
53 116670 116670 - PACKING
$2.99
54 117074 117074 - SPRING
$2.99
55 117549 117549 - SWITCH
$20.99
56 116013 116013 - CONNECTOR (MALE)
$2.99
57 107046 107046 - BAND CV-125
$2.99
59 125902 125902 - HOSE
$12.99
60 125903 125903 - HOSE BOOT
$6.99
61 103033 103033 - HOSE BAND
$2.99
62 124813 124813 - BAND
$6.99
63 124385 124385 - HOSE
$2.99
64 112530 112530 - CLAMP
$2.99
66 127241 127241 - BAND
$2.99
67 123227 123227 - PAD
$17.99
68 106352 106352 - PACKING
$35.99
69 126758 126758 - SCREW M6X8
$2.99
70 126308 126308 - STRAPS
$30.99
71 127221 127221 - SCREW M6X16
$2.99
72 127224 127224 - WASHER 6X23XT1.6
$2.99
73 127237 127237 - NUT M6
$2.99
