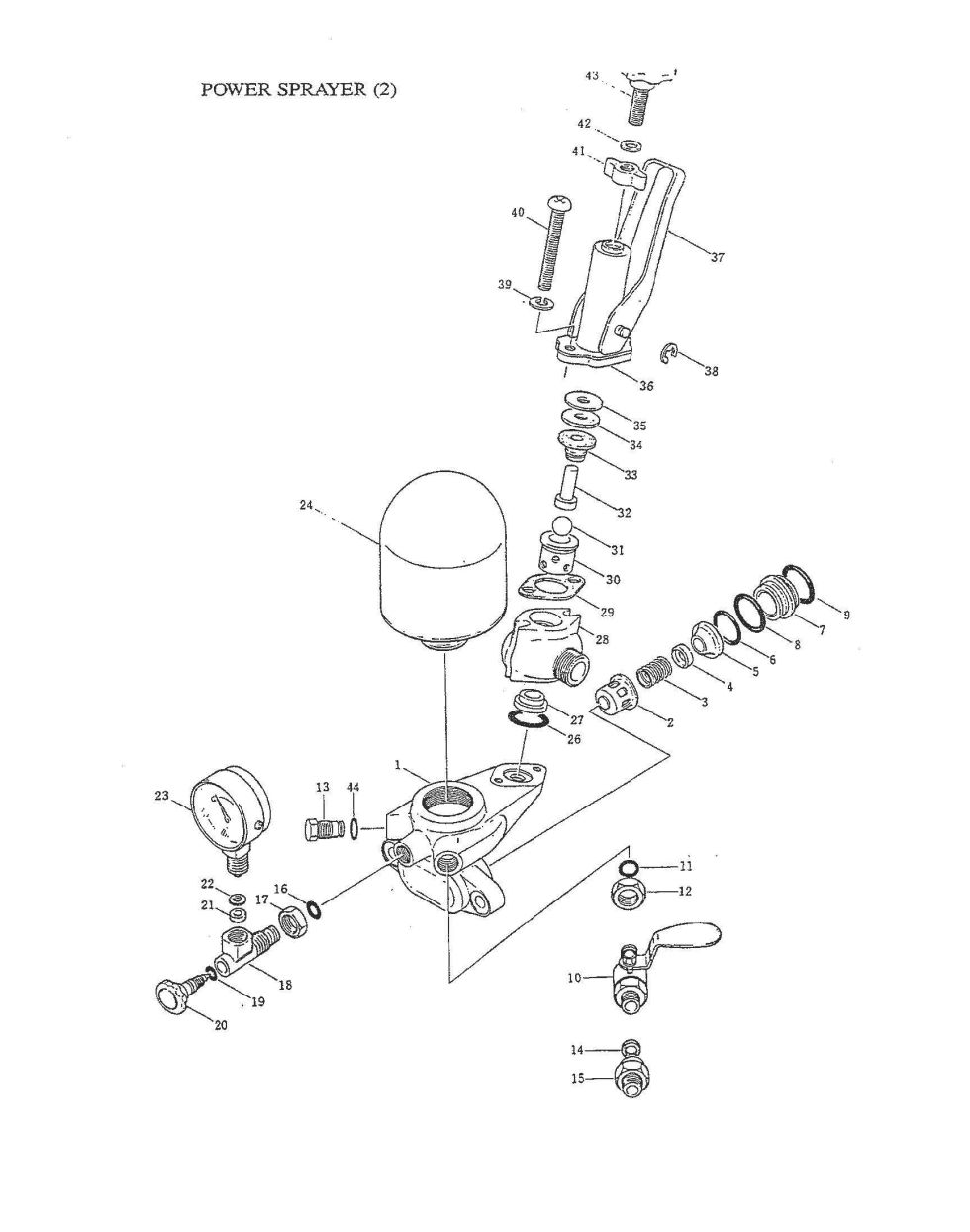

Power Sprayer (2)

Power Sprayer (2)

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS153EMH. You have selected the Power Sprayer (2) diagram for the Maruyama MS153EMH Engine Driven Sprayers. Below you will find an interactive part diagram for the MS153EMH Power Sprayer (2). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS153EMH parts not shown in this diagram you may select from one of the other MS153EMH part assemblies or select a different Engine Driven Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Engine Driven Sprayers parts.

Position number SKU Product title Price
1 101910 101910 - DISCHARGE MANIFOLD
$158.99
2 022841 022841 - DISCHARGE VALVE SACK
$16.99
3 022031 022031 - DISCHARGE VALVE SPRI
$2.99
4 022842 022842 - DISCHARGE VALVE
$7.99
5 105820 105820 - NLA DISCHARGE VALVE
$9.99
7 022931 022931 - PIPE RECEIVER
$14.99
8 023172 023172 - O-RING (P22)
$2.99
9 015862 015862 - ORING
$2.99
10 100154 100154 - NLA COCK ASSY
$34.99
11 022056 022056 - O-RING, COCK
$2.99
12 101394 101394 - USE: 25604
$2.99
13 060563 060563 - BLIND PLUG
$19.99
15 023505 023505 - Obsolete - USE PART #091010 No Longer Available
Obsolete.
18 027478 027478 - PRESSURE GAUGE PROTE
$20.99
19 011341 011341 - O-RING
$2.99
20 027441 027441 - NEEDLE VALVE
$8.99
21 011241 011241 - PACKING
$2.99
22 015453 015453 - WASHER
$2.99
23 101911 101911 - NLA PRESSURE GAUGE
$48.99
24 107752 107752 - AIR CHAMBER
$105.99
26 014179 014179 - O-RING, VALVE BODY
$11.99
27 020971 020971 - P R VALVE SEAT
$12.99
28 023485 023485 - P R VALVE BODY
$52.99
30 012256 012256 - P R VALVE SACK
$9.99
31 107238 107238 - VALVE BALL
$16.99
32 016975 016975 - P R ROD VALVE
$5.99
33 011451 011451 - P R VALVE BELLOWS
$8.99
34 016972 016972 - P R VALVE BELLOWS PA
$2.99
35 012255 012255 - P R VALVE BELLOWS WA
$2.99
37 022939 022939 - P R VALVE HANDLE
$15.99
38 020299 020299 - E-SHAPED SNAP RING
$2.99
39 012502 012502 - SPRING WASHER
$2.99
