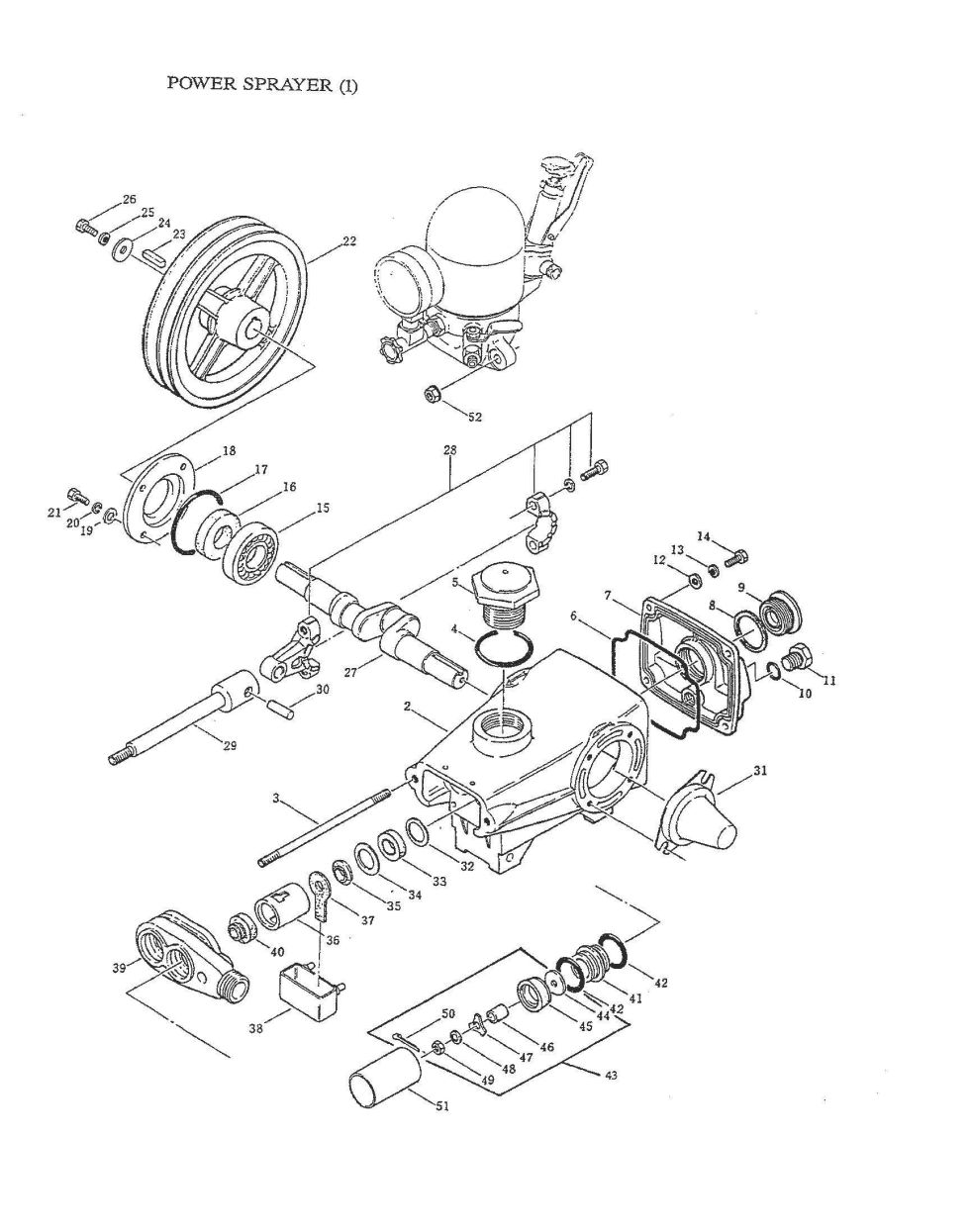

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS153EMH. You have selected the Power Sprayer (1) diagram for the Maruyama MS153EMH Engine Driven Sprayers. Below you will find an interactive part diagram for the MS153EMH Power Sprayer (1). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS153EMH parts not shown in this diagram you may select from one of the other MS153EMH part assemblies or select a different Engine Driven Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Engine Driven Sprayers parts.

Position number SKU Product title Price
4 014177 014177 - O RING
$2.99
6 106963 106963 - O-RING
$5.99
7 106965 106965 - NLA CRANKCASE LID
$19.99
8 044428 044428 - PACKING
$11.99
9 043987 043987 - Obsolete - USE PART #092241 No Longer Available
Obsolete.
10 023170 023170 - O-RING, DRAIN PLUG
$2.99
11 025625 025625 - DRAIN PLUG
$11.99
12 012488 012488 - WASHER M6
$2.99
13 012502 012502 - SPRING WASHER
$2.99
14 092520 092520 - BOLT
$2.99
15 014487 014487 - BEARING
$24.99
16 024159 024159 - OIL SEAL
$7.99
17 026536 026536 - O-RING, OIL SEAL CAS
$2.99
18 026625 026625 - OIL SEAL CASE
$24.99
21 092519 092519 - BOLT
$2.99
22 100837 100837 - V-PULLEY
$89.99
23 014543 014543 - KEY
$8.99
24 100836 100836 - USE: 126198
$2.99
25 015845 015845 - SPRING WASHER
$2.99
26 080126 080126 - BOLT
$2.99
27 103383 103383 - CRANKCASE
$200.99
28 017556 017556 - CONNECTING ROD ASSY
$79.99
29 102280 102280 - PISTON
$59.99
31 025130 025130 - SHAFT PROTECTOR
$7.99
32 020017 020017 - WASHER
$2.99
33 025461 025461 - OIL SEAL
$5.99
34 026854 026854 - WASHER
$2.99
35 026853 026853 - PACKING
$2.99
36 028033 028033 - SEAL PACKING RETAINE
$7.99
37 027711 027711 - FELT PACKING
$2.99
38 028034 028034 - OIL PAN
$2.99
39 028035 028035 - CYLINDER MANIFOLD
$211.99
40 100015 100015 - SEAL PACKING
$21.99
41 016957 016957 - PIPE RECEIVER
$5.99
42 015862 015862 - ORING
$2.99
43 092252 092252 - Obsolete - USE PART #812160 No Longer Available
Obsolete.
44 014122 014122 - SUCTION VALVE SEAT
$11.99
46 027499 027499 - SUCTION VALVE COLLAR
$8.99
47 027500 027500 - SUCTION VALVE STOPPE
$2.99
48 015849 015849 - SPRING WASHER M6
$2.99
49 081240 081240 - NUT M6
$2.99
50 014158 014158 - COTTER PIN 1.6X8
$2.99
51 022929 022929 - CYLINDER PIPE
$38.99
52 101804 101804 - NLA HEX FLANGE NUT (
$2.99
