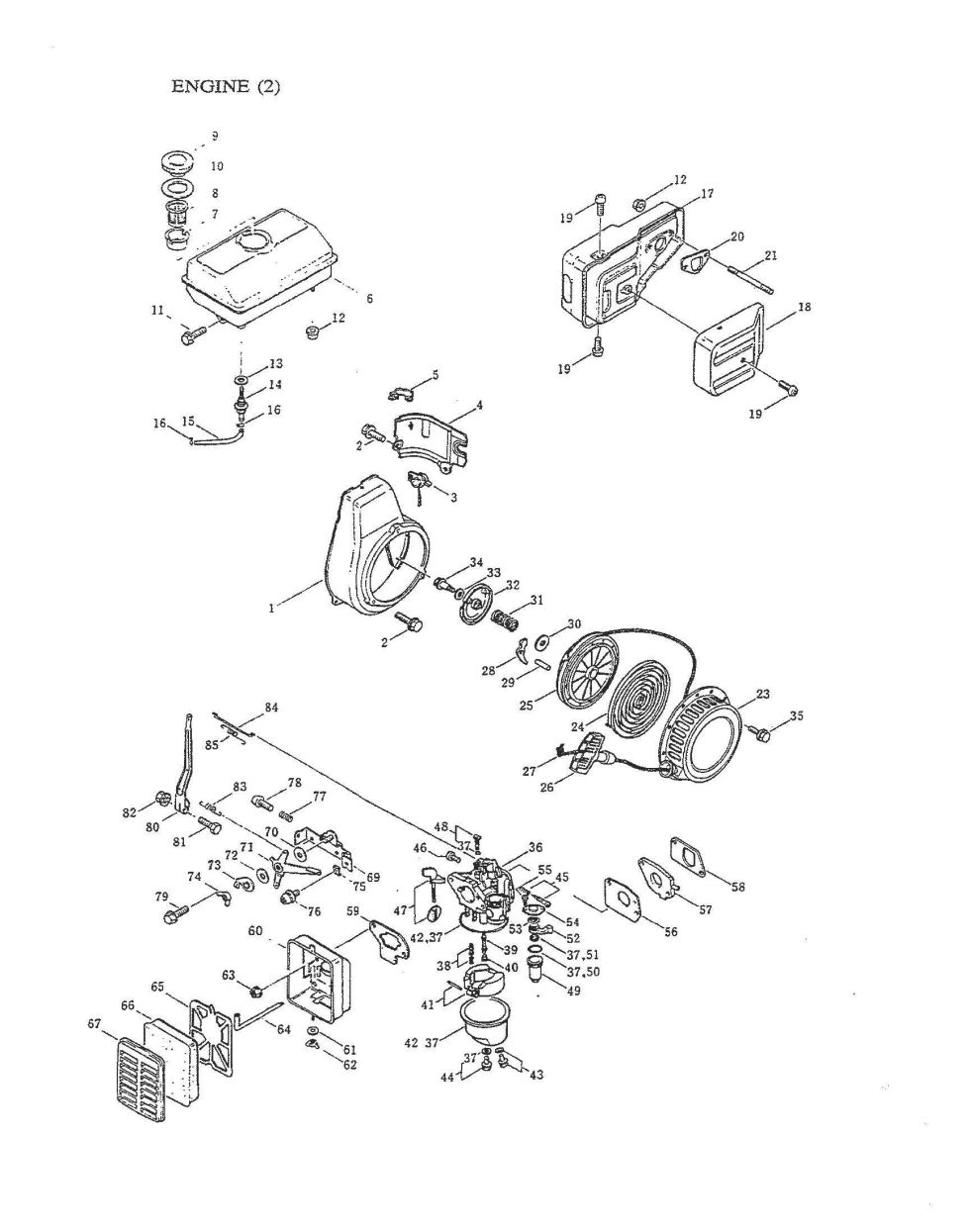

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS153EMH. You have selected the Engine (2) diagram for the Maruyama MS153EMH Engine Driven Sprayers. Below you will find an interactive part diagram for the MS153EMH Engine (2). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS153EMH parts not shown in this diagram you may select from one of the other MS153EMH part assemblies or select a different Engine Driven Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Engine Driven Sprayers parts.

Position number SKU Product title Price
1 998220 998220 - NLA FAN COVER ASSY
$130.99
2 990467 990467 - BOLT
$13.99
3 998221 998221 - ENGINE STOP SWITCH A
$41.99
4 998222 998222 - SHROUD
$33.99
5 998223 998223 - TUBE CLIP
$11.99
6 998224 998224 - NLA FUEL TANK ASSY
$105.99
7 990430 990430 - FUEL FILTER HOLDER
$25.99
8 990429 990429 - FUEL FILTER
$41.99
9 998225 998225 - NLA FUEL FILLER CAP
$35.99
10 990428 990428 - NLA PACKING
$2.99
11 998230 998230 - FLANGE BOLT
$2.99
12 990487 990487 - NUT
$2.99
13 998226 998226 - NLA FUEL TANK JOINT
$2.99
14 998227 998227 - FUEL TANK JOINT ASSY
$29.99
15 998231 998231 - FUEL TUBE
$2.99
16 990499 990499 - TUBE CLIP
$2.99
17 998228 998228 - MUFFLER ASSY
$90.99
18 990433 990433 - MUFFLER SEPERATOR
$29.99
19 998229 998229 - NLA SCREW
$2.99
20 998232 998232 - NLA MUFFLER GASKET
$2.99
21 998233 998233 - STUD BOLT
$14.99
23 998235 998235 - NLA STARTER CASE ASS
$149.99
24 998236 998236 - NLA RETURN SPRING
$25.99
25 998237 998237 - NLA STARTER REEL
$33.99
26 998238 998238 - STARTER GRIP
$30.99
27 998239 998239 - NLA STARTER ROPE
$14.99
28 998240 998240 - NLA STARTER RATCHET
$9.99
29 998241 998241 - RATCHET SHAFT
$8.99
30 998242 998242 - FRICTION PLATE A
$15.99
31 998243 998243 - FRICTION SPRING
$12.99
32 998244 998244 - NLA REEL STARTER COV
$6.99
33 998245 998245 - FRICTION PLATE B
$30.99
34 998246 998246 - NLA REEL COVER BOLT
$16.99
35 998247 998247 - NLA FLANGE BOLT
$2.99
36 998248 998248 - NLA CARBURETOR ASSY
$116.99
37 998249 998249 - NLA GASKET SET
$20.99
38 998250 998250 - FLOAT VALVE SET
$45.99
39 998251 998251 - MAIN NOZZLE
$45.99
40 998252 998252 - MAIN JET
$18.99
41 998253 998253 - FLOAT SET
$44.99
42 998254 998254 - FLOAT CHAMBER SET
$72.99
43 998255 998255 - DRAIN SCREW SET
$21.99
44 998256 998256 - SCREW SET
$35.99
45 998257 998257 - PILOT SCREW SET
$27.99
46 998258 998258 - THROTTLE STOP SCREW
$29.99
47 998259 998259 - CHOKE SET
$82.99
48 998260 998260 - PILOT JET SET
$43.99
49 998261 998261 - FUEL STRAINER CUP
$30.99
50 998262 998262 - O-RING
$14.99
51 998263 998263 - FUEL COCK PACKING
$14.99
52 998264 998264 - COCK LEVER
$22.99
53 998265 998265 - COCK LEVER SPRING
$14.99
54 998266 998266 - LEVER SETTING PLATE
$2.99
55 998267 998267 - SCREW
$2.99
56 998268 998268 - CARBURETOR PACKING
$5.99
57 998269 998269 - CARBURETOR INSULATOR
$18.99
58 998270 998270 - INSULATOR PACKING
$5.99
59 998271 998271 - NLA AIR CLEANER PACK
$2.99
60 998272 998272 - AIR CLEANER CASE ASS
$38.99
61 990492 990492 - WASHER
$2.99
62 990471 990471 - NUT
$7.99
63 998273 998273 - NLA FLANGE NUT
$2.99
64 998274 998274 - BREATHER TUBE
$23.99
65 990423 990423 - NLA AIR CLEANER GRID
$13.99
66 990422 990422 - AIR CLEANER ELEMENT
$21.99
67 998275 998275 - NLA AIR CLEANER COVE
$32.99
69 998277 998277 - CONTROL BASE ASSY
$34.99
70 998278 998278 - NLA CONTROL LEVER SP
$13.99
71 998279 998279 - CONTROL LEVER
$30.99
72 998280 998280 - LEVER SPRING
$14.99
73 998281 998281 - CONTROL LEVER WASHER
$20.99
75 990418 990418 - CABLE HOLDER
$13.99
76 990486 990486 - SCREW WASHER
$2.99
77 990419 990419 - CONTROL ADJUSTING SP
$8.99
78 998282 998282 - SCREW
$2.99
80 998283 998283 - GOVERNOR ARM
$39.99
81 991246 991246 - USE: 082101 No Longer Available
Obsolete.
83 998284 998284 - GOVERNOR SPRING
$14.99
84 998285 998285 - GOVERNOR ROD
$11.99
85 998286 998286 - THROTTLE RETURN SPRI
$14.99
