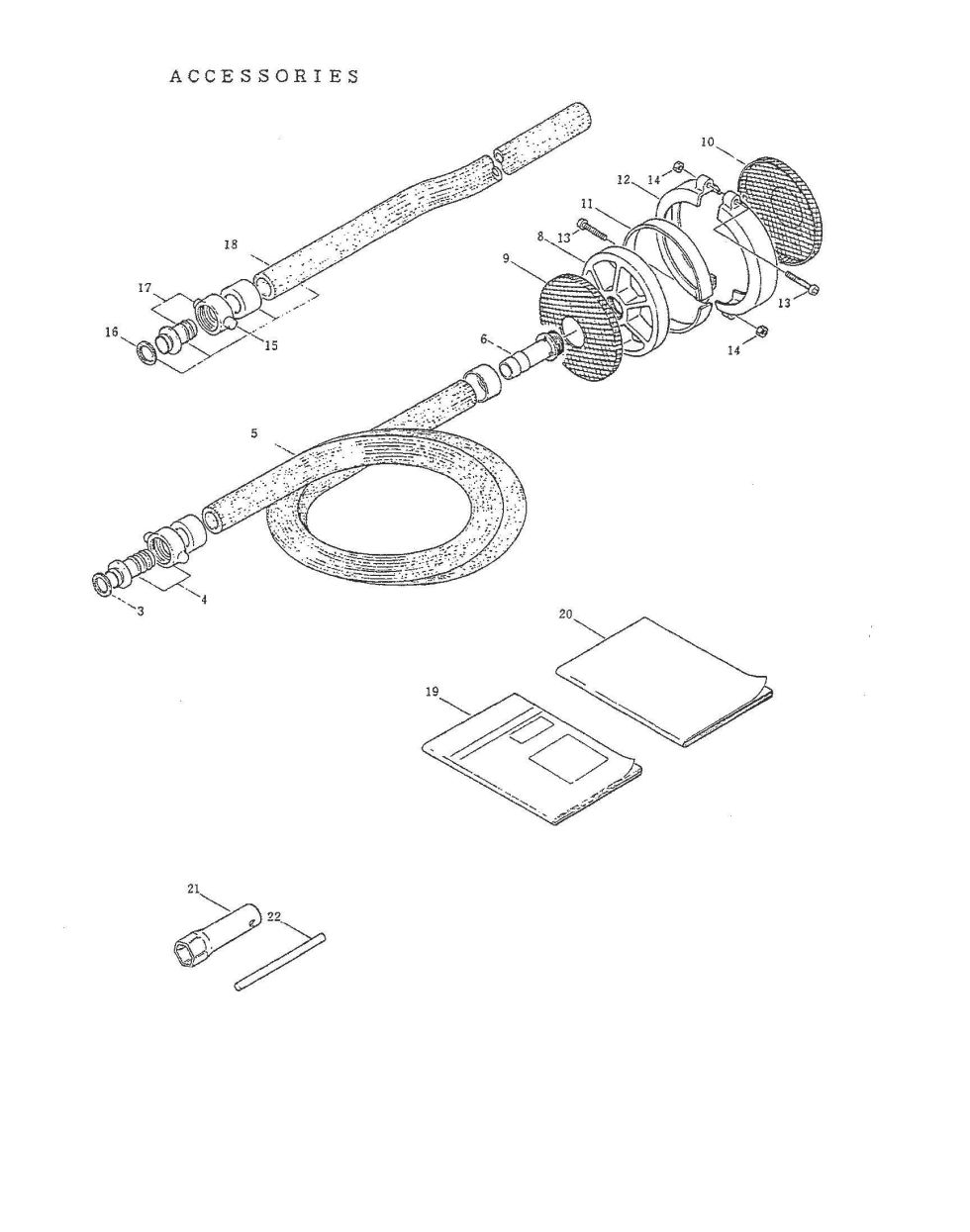

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS153EMH. You have selected the Accessories diagram for the Maruyama MS153EMH Engine Driven Sprayers. Below you will find an interactive part diagram for the MS153EMH Accessories. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS153EMH parts not shown in this diagram you may select from one of the other MS153EMH part assemblies or select a different Engine Driven Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Engine Driven Sprayers parts.

Position number SKU Product title Price
3 103685 103685 - PACKING
$2.99
4 098009 098009 - HOSE COUPLING
$22.99
5 103573 103573 - HOSE
$33.99
6 106637 106637 - HOSE COUPLING
$5.99
8 105931 105931 - NLA STRAINER BODY
$13.99
9 105933 105933 - NLA STRAINER NET (UP
$18.99
10 105934 105934 - NLA STRAINER NET (LO
$18.99
11 105935 105935 - NLA WEIGHT
$22.99
12 105932 105932 - NLA STRAINER RING
$5.99
15 104344 104344 - USE: 103572
$36.99
18 104345 104345 - USE: 103573
$24.99
21 101900 101900 - NLA BOX SPANNER
$21.99
22 101912 101912 - NLA BOX HAND
$2.99
