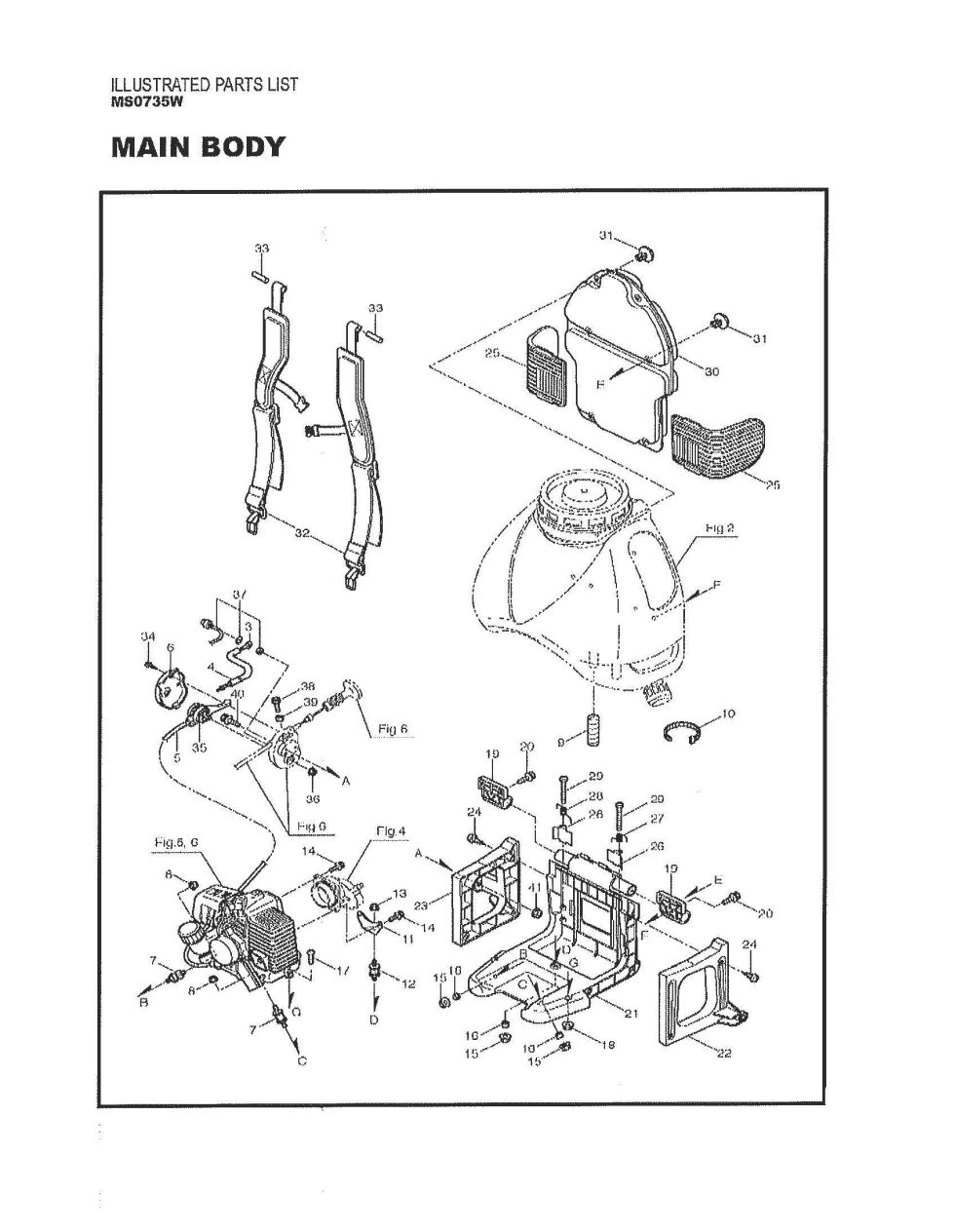

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS0735W. You have selected the Main Body diagram for the Maruyama MS0735W Engine Driven Sprayers. Below you will find an interactive part diagram for the MS0735W Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS0735W parts not shown in this diagram you may select from one of the other MS0735W part assemblies or select a different Engine Driven Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Engine Driven Sprayers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 3 | 114896 | 114896 - GROUND WIRE |
$6.99
|
|
| 4 | 114901 | 114901 - VINYL HOSE |
$2.99
|
|
| 5 | 282365 | 282365 - THROTTLE CABLE MS073 |
$7.99
|
|
| 6 | 125045 | 125045 - THROTTLE COVER |
$6.99
|
|
| 7 | 220212 | 220212 - BUFFER |
$5.99
|
|
| 8 | 100420 |
100420 - NLA FLANGE NUT (obsolete) use part #126756 |
$2.99
|
|
| 9 | 126069 |
$2.99
|
||
| 10 | 104343 | 104343 - BAND |
$2.99
|
|
| 11 | 125803 | 125803 - STAY |
$2.99
|
|
| 14 | 092548 | 092548 - BOLT M5X15 |
$2.99
|
|
| 15 | 125277 | 125277 - NUT |
$2.99
|
|
| 16 | 125053 | 125053 - COLLAR |
$2.99
|
|
| 19 | 125699 | 125699 - NLA BRACKET FOR MS07 |
$2.99
|
|
| 20 | 123951 |
$2.99
|
||
| 21 | 125701 | 125701 - BASE |
$28.99
|
|
| 22 | 125703 | 125703 - STAY (R) MS0735W |
$12.99
|
|
| 23 | 125705 | 125705 - STAY (L) MS0735W |
$12.99
|
|
| 24 | 089538 | 089538 - SCREW |
$2.99
|
|
| 25 | 125707 | 125707 - WAIST PAD |
$10.99
|
|
| 26 | 125709 | 125709 - STOPPER |
$2.99
|
|
| 27 | 125710 | 125710 - SPRING |
$2.99
|
|
| 28 | 125808 | 125808 - SPRING |
$2.99
|
|
| 29 | 126080 | 126080 - SCREW |
$2.99
|
|
| 30 | 125713 | 125713 - CUSHION PAD |
$23.99
|
|
| 31 | 125068 | 125068 - FASTENER |
$2.99
|
|
| 32 | 125714 | 125714 - KNAPSACK BAND |
$30.99
|
|
| 33 | 125717 | 125717 - SHAFT |
$2.99
|
|
| 34 | 082684 | 082684 - TAPPING SCREW |
$2.99
|
|
| 35 | 115148 | 115148 - THROTTLE LEVER |
$17.99
|
|
| 36 | 103549 | 103549 - NLA FLANGE NUT |
$2.99
|
|
| 37 | 114895 | 114895 - STOP BUTTON |
$23.99
|
|
| 39 | 126081 | 126081 - NUT |
$2.99
|
|
| 40 | 092556 | 092556 - BOLT(M6X30) |
$2.99
|
