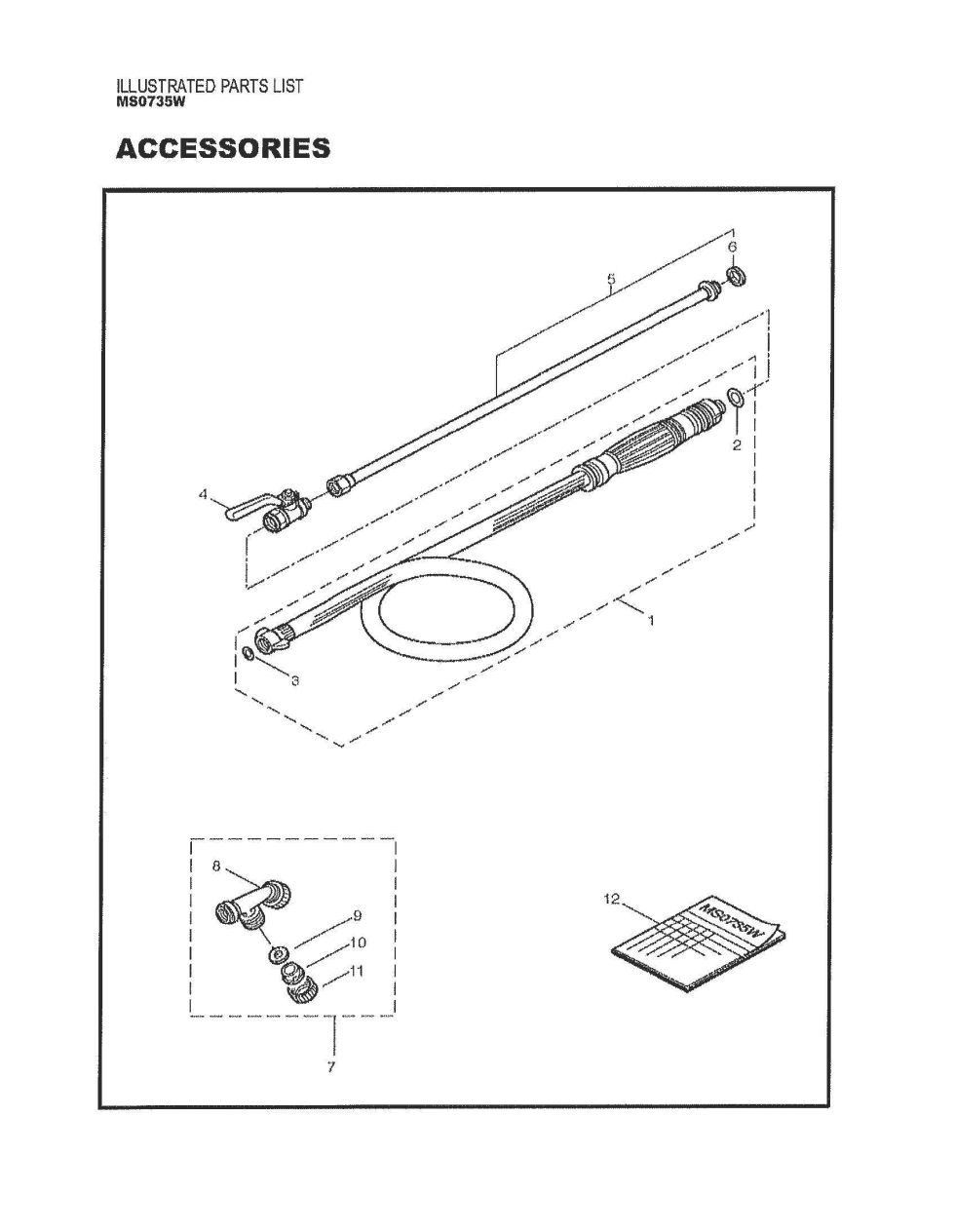

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MS0735W. You have selected the Accessories diagram for the Maruyama MS0735W Engine Driven Sprayers. Below you will find an interactive part diagram for the MS0735W Accessories. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MS0735W parts not shown in this diagram you may select from one of the other MS0735W part assemblies or select a different Engine Driven Sprayers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Engine Driven Sprayers parts.

Position number SKU Product title Price
1 118267 118267 - HOSE ASSY.
$24.99
2 013572 013572 - PACKING
$11.99
3 074369 074369 - PACKING
$2.99
4 105891 105891 - USE: 977763
$24.99
5 124040 124040 - NLA NOZZLE PIPE
$21.99
6 112850 112850 - USE: 574698
$2.99
7 117958 117958 - NOZZLE (obsolete)
use part #471938
$31.99
8 103173 103173 - CAP
$12.99
9 103171 103171 - NLA PACKING
$2.99
10 118266 118266 - NLA NOZZLE PLATE D-5
$12.99
