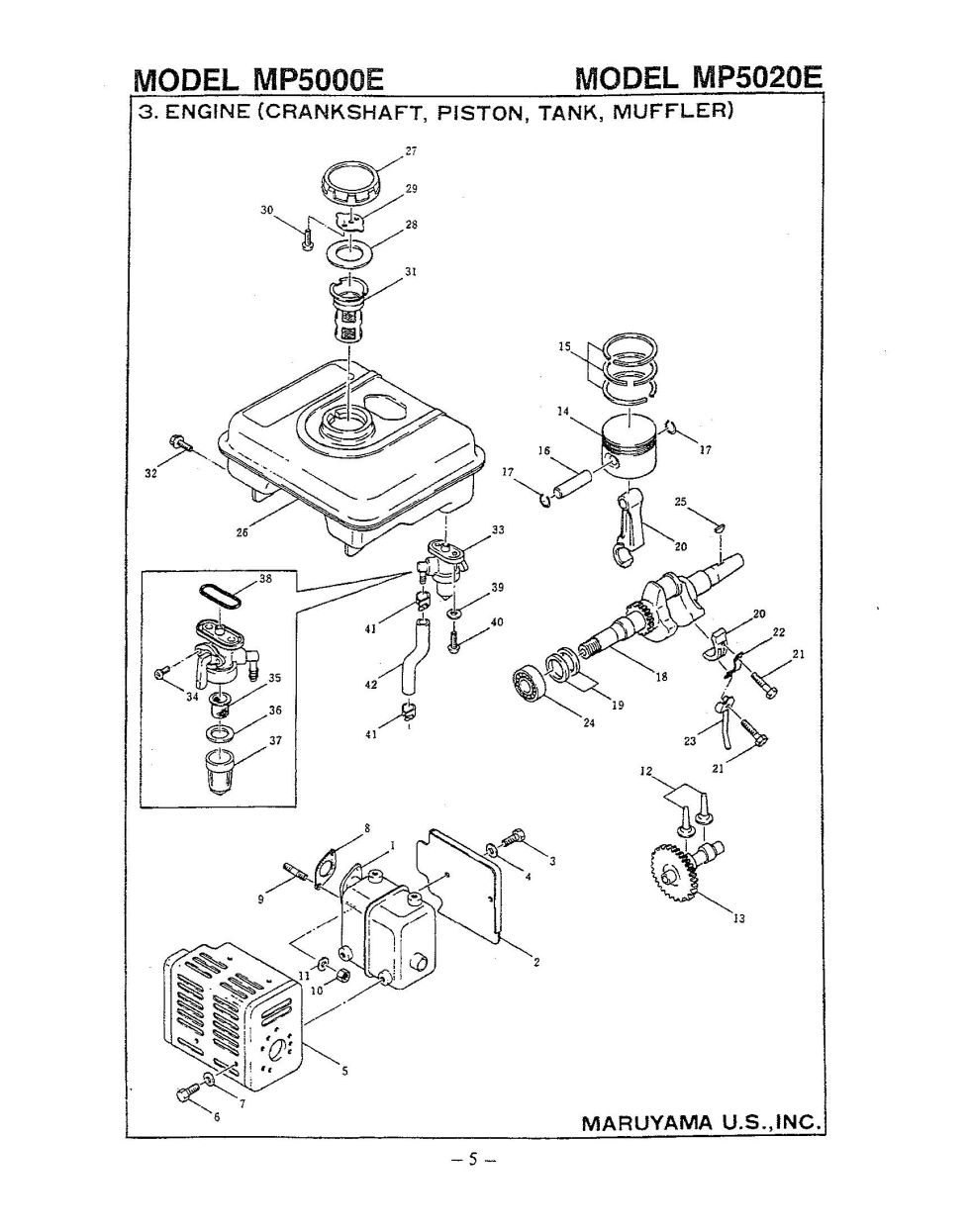

Engine (Crankshaft, Piston, Tank, Muffler)

Engine (Crankshaft, Piston, Tank, Muffler)

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MP5000E, MP5020E. You have selected the Engine (Carburetor, Piston, Tank, Muffler) diagram for the Maruyama MP5000E, MP5020E Water Pumps. Below you will find an interactive part diagram for the MP5000E, MP5020E Engine (Carburetor, Piston, Tank, Muffler). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MP5000E, MP5020E parts not shown in this diagram you may select from one of the other MP5000E, MP5020E part assemblies or select a different Water Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Water Pumps parts.

Position number SKU Product title Price
1 996266 996266 - MUFFLER ASSY
$110.99
2 996267 996267 - MUFFLER COVER
$23.99
3 943729 943729 - BOLT
$8.99
4 944442 944442 - WASHER
$2.99
5 996268 996268 - MUFFLER COVER
$38.99
8 996269 996269 - GASKET
$7.99
9 944914 944914 - NLA STUD
$2.99
10 943863 943863 - NLA NUT
$2.99
11 071120 071120 - WASHER
$2.99
12 996270 996270 - TAPPET
$18.99
13 996271 996271 - CAM GEAR
$154.99
14 996272 996272 - PISTON
$58.99
15 996273 996273 - PISTON RING SET
$46.99
16 944889 944889 - NLA PISTON PIN
$11.99
17 996274 996274 - SNAP RING
$2.99
18 996275 996275 - CRANKSHAFT
$248.99
20 996280 996280 - CONNECTING ROD ASSY
$100.99
21 996281 996281 - BOLT
$14.99
22 996282 996282 - LOCK WASHER
$5.99
23 996283 996283 - SPLASHER ARM
$14.99
24 071896 071896 - BALL BEARING
$25.99
25 071919 071919 - WOODRUFF KEY
$7.99
26 996284 996284 - NLA FUEL TANK ASSY
$155.99
27 996285 996285 - USE: 944895
$24.99
28 944896 944896 - NLA GASKET
$2.99
29 944897 944897 - SPRING
$7.99
30 944898 944898 - SCREW
$2.99
31 944899 944899 - FUEL STRAINER
$14.99
32 996286 996286 - BOLT
$2.99
33 944903 944903 - USE: 999346
$34.99
34 944904 944904 - SCREW
$2.99
35 944905 944905 - STRAINER
$9.99
36 944906 944906 - NLA GASKET
$2.99
37 944907 944907 - FILTER POT
$12.99
38 944908 944908 - NLA O-RING
$2.99
39 944878 944878 - NLA WASHER
$2.99
40 944901 944901 - USE: 584753
$2.99
41 996287 996287 - CLIP
$2.99
42 996288 996288 - TUBE (180L)
$45.99
