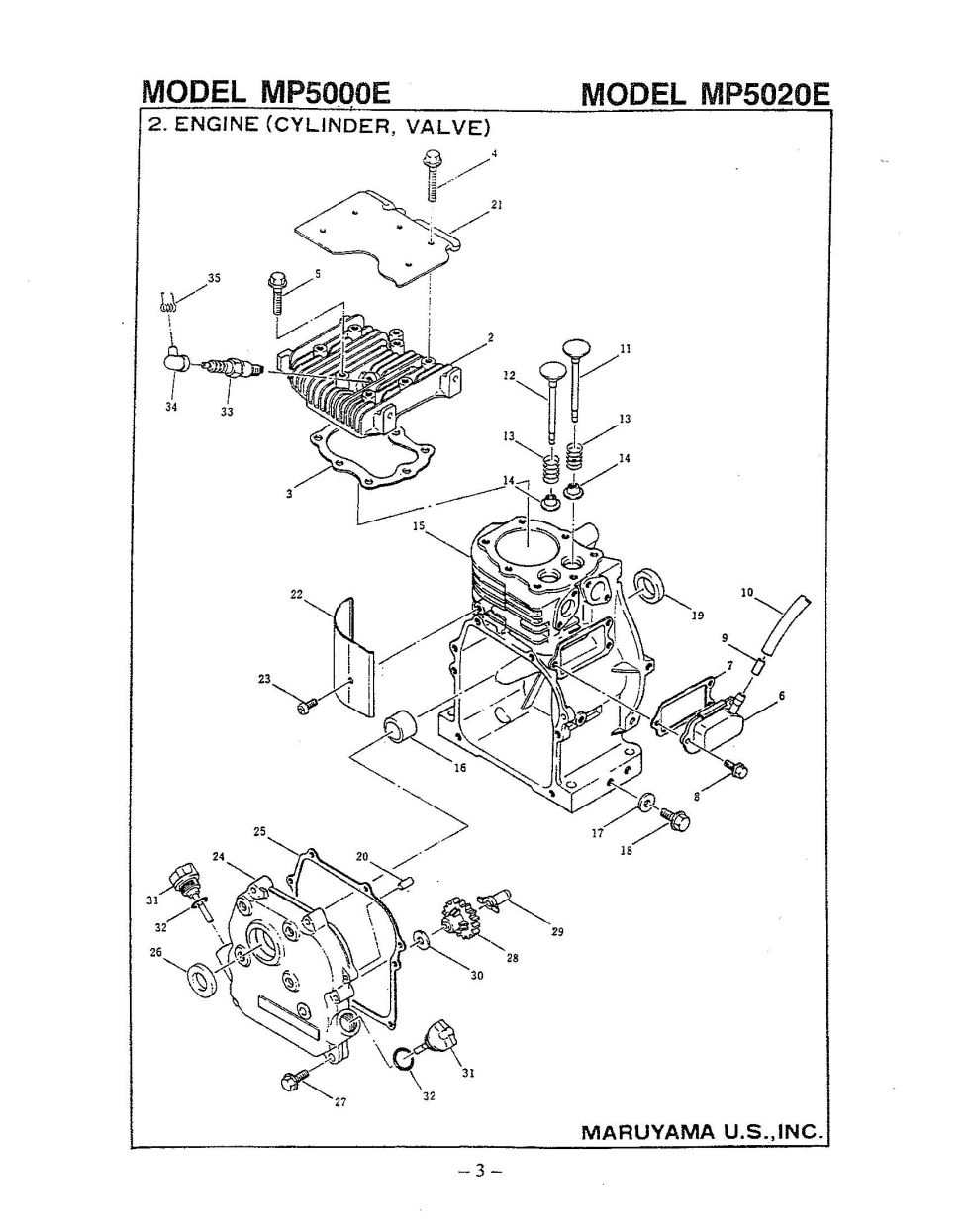

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MP5000E, MP5020E. You have selected the Engine (Cylinder, Valve) diagram for the Maruyama MP5000E, MP5020E Water Pumps. Below you will find an interactive part diagram for the MP5000E, MP5020E Engine (Cylinder, Valve). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MP5000E, MP5020E parts not shown in this diagram you may select from one of the other MP5000E, MP5020E part assemblies or select a different Water Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Water Pumps parts.

Position number SKU Product title Price
2 996240 996240 - CYLINDER HEAD
$89.99
3 996241 996241 - GASKET
$14.99
4 996242 996242 - BOLT
$10.99
5 996243 996243 - BOLT
$2.99
6 996244 996244 - COVER
$23.99
7 996245 996245 - GASKET
$6.99
8 996246 996246 - BOLT
$2.99
9 996247 996247 - PIPE
$2.99
10 944924 944924 - RUBBER TUBE
$18.99
11 996248 996248 - INLET VALVE
$28.99
12 996249 996249 - EXHAUST VALVE
$35.99
13 996250 996250 - SPRING
$10.99
14 996251 996251 - RETAINER
$2.99
15 996252 996252 - CRANKCASE ASSY
$258.99
16 996253 996253 - BEARING
$12.99
17 996254 996254 - USE: 944875
$2.99
18 944876 944876 - BOLT
$2.99
19 996255 996255 - OIL SEAL
$27.99
20 071717 071717 - KNOCK PIN
$2.99
21 996256 996256 - CYLINDER HEAD COVER
$20.99
22 996257 996257 - CYLINDER COVER
$20.99
23 996258 996258 - USE: 414435
$2.99
24 996259 996259 - CRANKCASE COVER
$198.99
25 996260 996260 - GASKET
$16.99
26 996261 996261 - OIL SEAL
$11.99
27 996262 996262 - BOLT
$2.99
28 996263 996263 - GOVERNOR ASSY
$24.99
29 944871 944871 - USE: 583964
$2.99
30 944870 944870 - USE: 584764
$2.99
31 996264 996264 - OIL FILTER CAP
$8.99
32 996265 996265 - O-RING
$2.99
33 944883 944883 - USE: 971978
$13.99
34 944884 944884 - PLUG CAP
$12.99
35 944885 944885 - USE: 583974
$2.99
