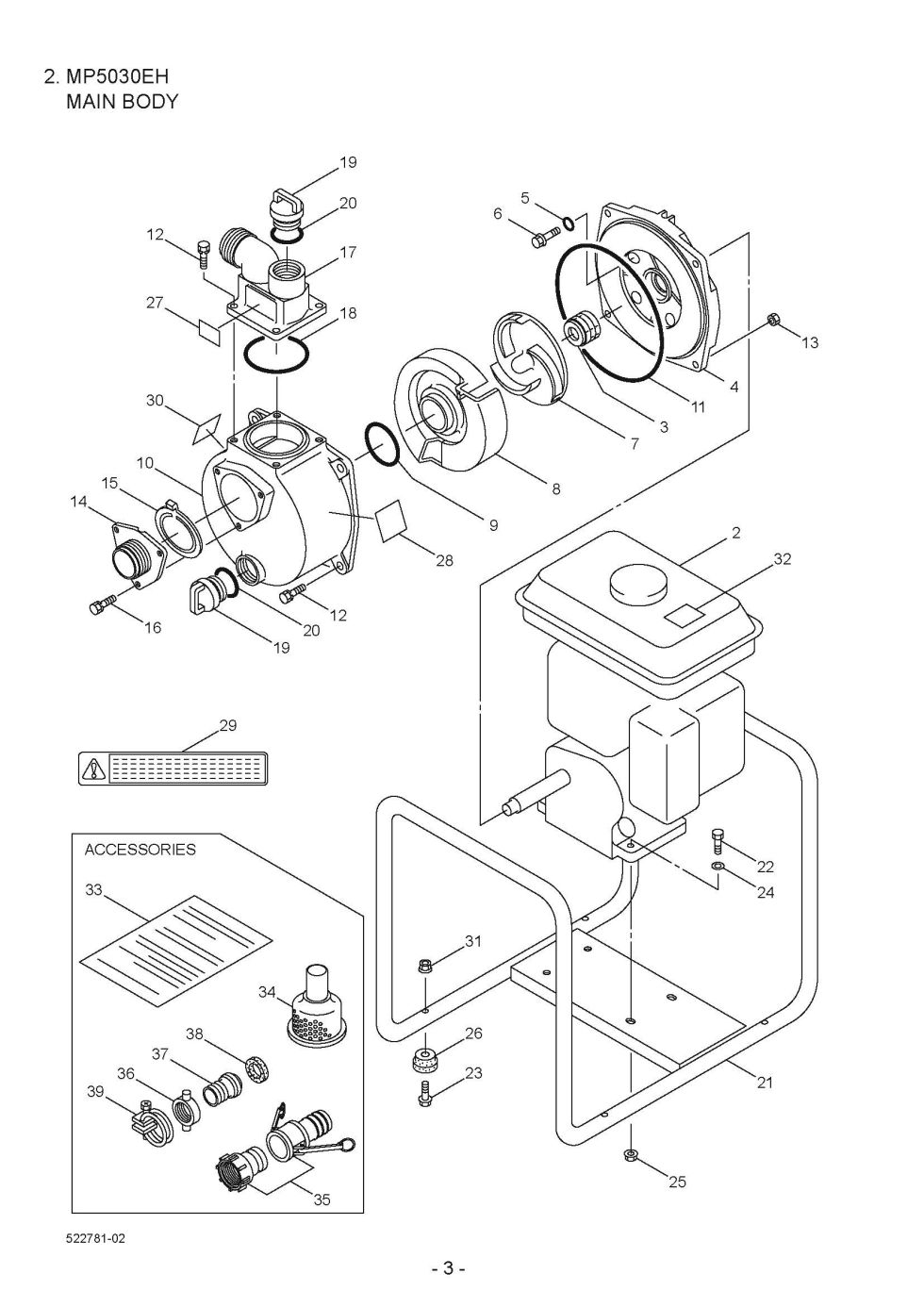

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MP4030EH, MP5030EH. You have selected the Main Body (MP5030EH) diagram for the Maruyama MP4030EH, MP5030EH Water Pumps. Below you will find an interactive part diagram for the MP4030EH, MP5030EH Main Body (MP5030EH). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MP4030EH, MP5030EH parts not shown in this diagram you may select from one of the other MP4030EH, MP5030EH part assemblies or select a different Water Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Water Pumps parts.
Position number | SKU | Product title | Price | |
---|---|---|---|---|
3 | 240072 | 240072 - MECHANICAL SEAL |
$46.99
|
|
4 | 240480 | 240480 - CASING COVER |
$67.99
|
|
5 | 014190 | 014190 - O-RING |
$2.99
|
|
6 | 089721 | 089721 - BOLT |
$2.99
|
|
7 | 240074 | 240074 - IMPELLER |
$72.99
|
|
8 | 240584 | 240584 - SCROLL |
$101.99
|
|
9 | 012392 | 012392 - O-RING |
$2.99
|
|
10 | 240585 | 240585 - CASING |
$119.99
|
|
11 | 016601 | 016601 - O-RING |
$14.99
|
|
12 | 092530 | 092530 - SCREW, HEX M8X25 |
$2.99
|
|
13 | 126521 | 126521 - Nut |
$2.99
|
|
14 | 240586 | 240586 - SUCTION PORT |
$37.99
|
|
15 | 240484 | 240484 - CHECK VALVE |
$22.99
|
|
16 | 126258 | 126258 - HEX, HEAD SCREW |
$2.99
|
|
17 | 240587 | 240587 - DISCHARGE PORT |
$59.99
|
|
18 | 012393 | 012393 - O-RING |
$2.99
|
|
19 | 240082 | 240082 - BLIND PLUG |
$6.99
|
|
20 | 018690 | 018690 - O-RING |
$2.99
|
|
21 | 240487 | 240487 - NLA SET BASE |
$161.99
|
|
22 | 082117 | 082117 - BOLT |
$2.99
|
|
23 | 817028 | 817028 - BOLT |
$6.99
|
|
24 | 127239 | 127239 - WASHER |
$2.99
|
|
25 | 100420 |
100420 - NLA FLANGE NUT (obsolete) use part #126756 |
$2.99
|
|
26 | 028843 | 028843 - FOOT PAD |
$9.99
|
|
27 | 240368 | 240368 - LABEL |
$2.99
|
|
28 | 240019 | 240019 - LABEL |
$2.99
|
|
29 | 120675 | 120675 - DECAL |
$2.99
|
|
32 | 285188 | 285188 - LABEL |
$2.99
|
|
34 | 240495 | 240495 - STRAINER |
$23.99
|
|
35 | 548852 | 548852 - ONE TOUCH COUPLING |
$72.99
|
|
36 | 240096 | 240096 - HOSE FEMALE NUT |
$11.99
|
|
37 | 240865 | 240865 - HOSE COUPLING |
$2.99
|
|
38 | 240098 | 240098 - HOSE BAND |
$6.99
|
