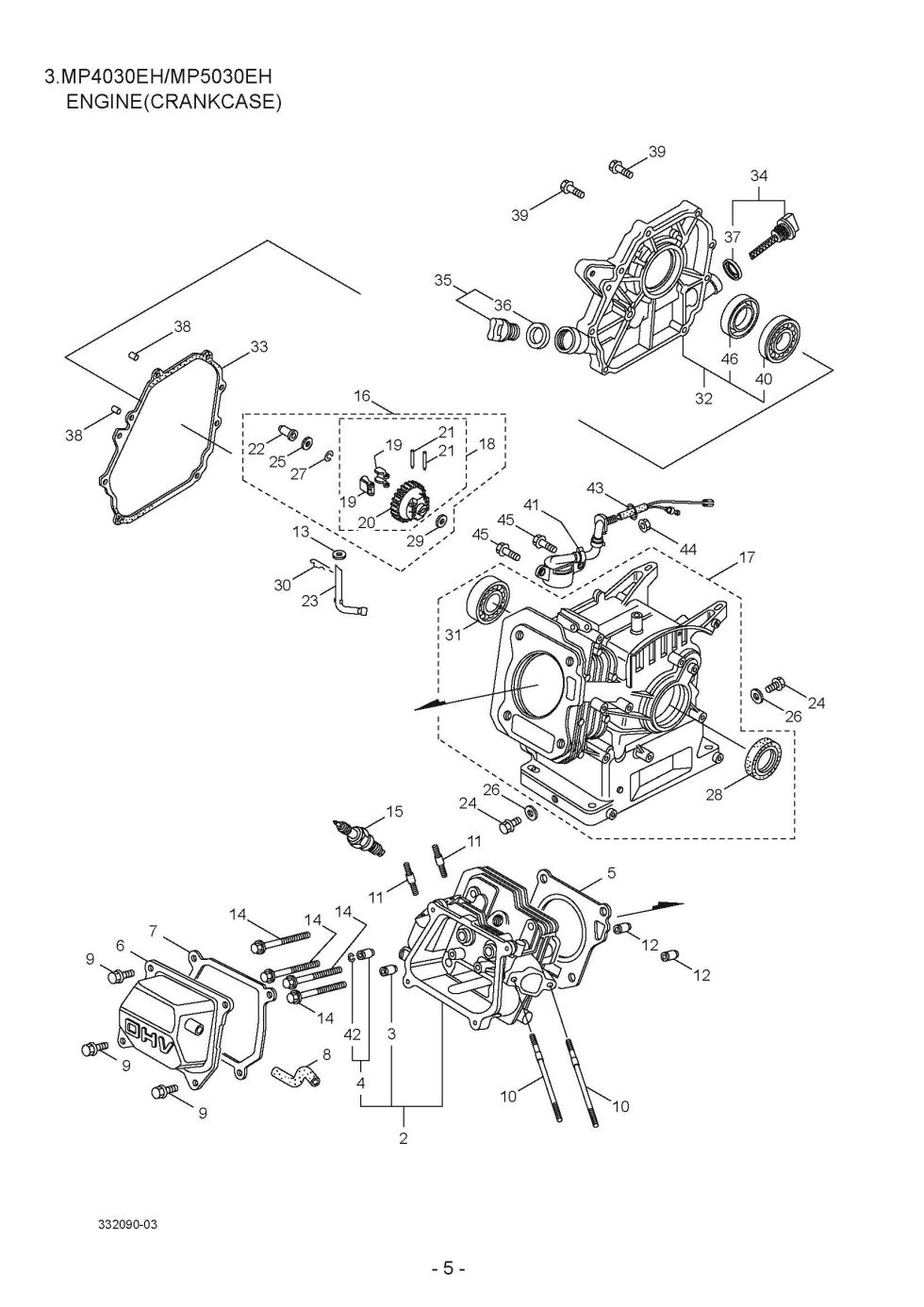

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MP4030EH, MP5030EH. You have selected the Engine (Crankcase) diagram for the Maruyama MP4030EH, MP5030EH Water Pumps. Below you will find an interactive part diagram for the MP4030EH, MP5030EH Engine (Crankcase). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MP4030EH, MP5030EH parts not shown in this diagram you may select from one of the other MP4030EH, MP5030EH part assemblies or select a different Water Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Water Pumps parts.

Position number SKU Product title Price
2 627188 627188 - CYLINDER HEAD COMP
$135.99
3 620734 620734 - INLET VALVE GUIDE
$30.99
4 583642 583642 - EXHAUST VALVE GUIDE
$22.99
5 620735 620735 - CYLINDER HEAD GASKET
$40.99
6 583644 583644 - HEAD COVER COMP.
$30.99
7 583645 583645 - HEAD COVER PACKING
$15.99
8 625223 625223 - BREATHER TUBE
$10.99
9 990467 990467 - BOLT
$13.99
10 625224 625224 - STUD BOLT
$15.99
11 583649 583649 - STUD BOLT
$19.99
12 583650 583650 - DOWEL PIN
$9.99
13 990493 990493 - WASHER
$2.99
14 620737 620737 - FLANGE BOLT
$8.99
15 625225 625225 - SPARK PLUG
$14.99
16 583654 583654 - USE: 626316
$33.99
18 583656 583656 - GOVERNOR ASSY
$50.99
19 583657 583657 - GOVERNOR WEIGHT
$14.99
20 583658 583658 - GOVERNOR WEIGHT HOLD
$31.99
21 998195 998195 - NLA GOVERNOR WEIGHT
$8.99
22 583659 583659 - GOVERNOR SLIDER
$16.99
23 583660 583660 - GOVERNOT ARM SHAFT
$28.99
24 998200 998200 - DRAIN PLUG BOLT
$15.99
25 620739 620739 - THRUST WASHER
$9.99
26 998199 998199 - DRAIN PLUG WASHER
$6.99
27 583662 583662 - GOVERNOR HOLDER CLIP
$6.99
28 620740 620740 - OIL SEAL
$26.99
30 990496 990496 - LOCK PIN
$2.99
31 620741 620741 - RADIAL BALL BEARING
$44.99
32 627190 627190 - CRANKCASE COVER ASSY
$249.99
33 627191 627191 - CASE COVER PACKING
$18.99
34 620744 620744 - OIL FILLTE CAP ASSY
$30.99
35 620745 620745 - OIL FILLER CAP ASSY
$28.99
36 620747 620747 - OIL FILLTER CAP PACK
$19.99
38 990497 990497 - KNOCK PIN
$7.99
39 998198 998198 - FLANGE BOLT
$13.99
41 627189 627189 - OIL LEVEL SWITCH ASS
$104.99
42 620736 620736 - CLIP
$6.99
43 625228 625228 - O-RING
$19.99
44 625229 625229 - FLANGE NUT
$2.99
45 625230 625230 - FLANGE BOLT
$2.99
46 627192 627192 - OIL SEAL
$30.99
