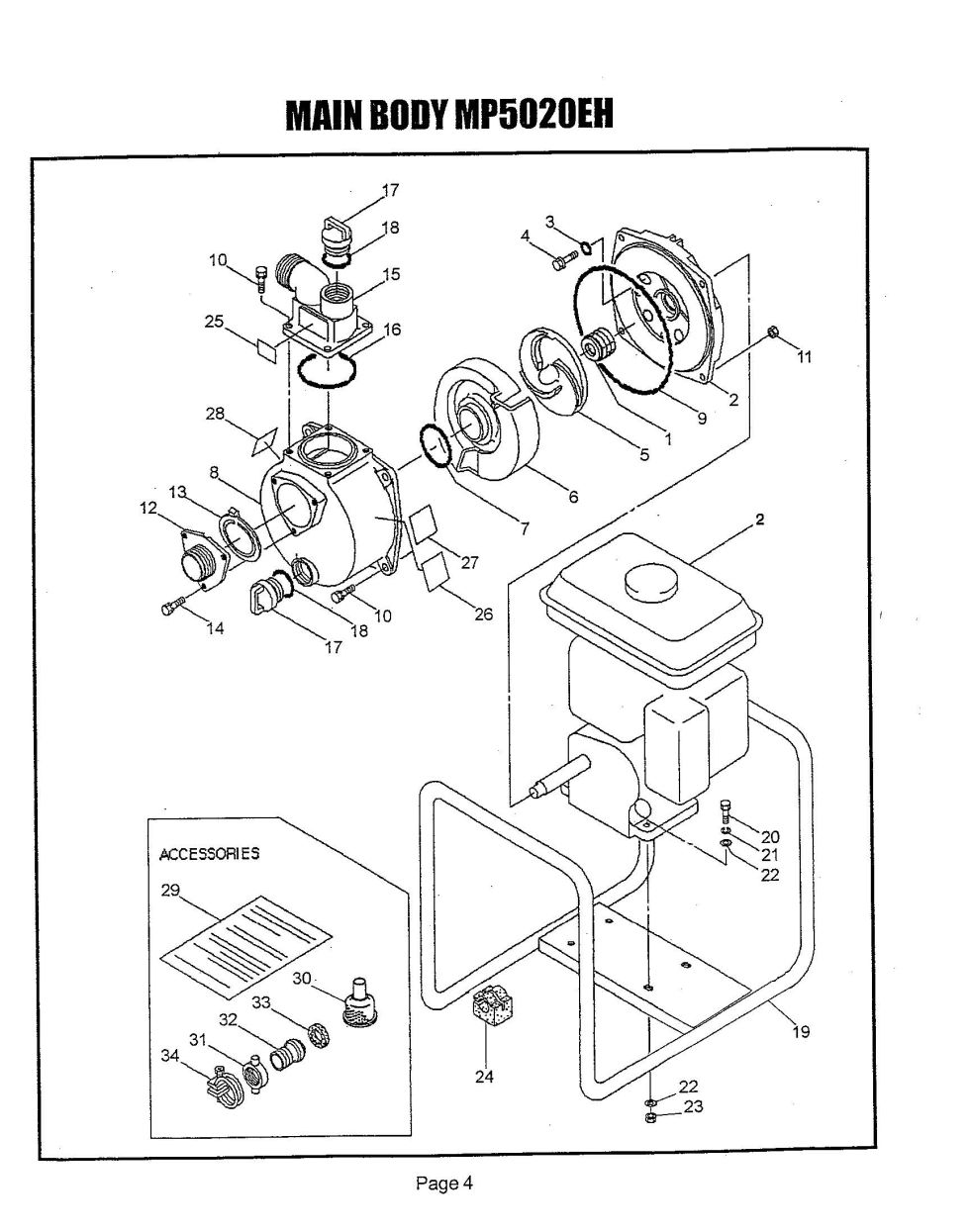

Main Body (MP5020EH)

Main Body (MP5020EH)

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MP4020EH, MP5020EH. You have selected the Main Body (MP5020EH) diagram for the Maruyama MP4020EH, MP5020EH Water Pumps. Below you will find an interactive part diagram for the MP4020EH, MP5020EH Main Body (MP5020EH). If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MP4020EH, MP5020EH parts not shown in this diagram you may select from one of the other MP4020EH, MP5020EH part assemblies or select a different Water Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Water Pumps parts.

Position number SKU Product title Price
1 240072 240072 - MECHANICAL SEAL
$46.99
2 240480 240480 - CASING COVER
$67.99
3 014190 014190 - O-RING
$2.99
4 089721 089721 - BOLT
$2.99
5 240389 240389 - USE: 240074
$45.99
6 240584 240584 - SCROLL
$101.99
7 012392 012392 - O-RING
$2.99
8 240585 240585 - CASING
$119.99
9 016601 016601 - O-RING
$14.99
10 092530 092530 - SCREW, HEX M8X25
$2.99
12 240586 240586 - SUCTION PORT
$37.99
13 240484 240484 - CHECK VALVE
$22.99
14 092521 092521 - HEX, HEAD SCREW
$2.99
15 240587 240587 - DISCHARGE PORT
$59.99
16 012393 012393 - O-RING
$2.99
17 240082 240082 - BLIND PLUG
$6.99
18 018690 018690 - O-RING
$2.99
19 240487 240487 - NLA SET BASE
$161.99
20 080133 080133 - BOLT M8X35X22
$2.99
21 015845 015845 - SPRING WASHER
$2.99
22 012489 012489 - WASHER
$2.99
24 240490 240490 - NLA CUSHION RUBBER
$17.99
25 240368 240368 - LABEL
$2.99
26 240019 240019 - LABEL
$2.99
27 107483 107483 - USE: 120675
$2.99
28 240500 240500 - NLA LABEL
$2.99
30 240495 240495 - STRAINER
$23.99
31 240096 240096 - HOSE FEMALE NUT
$11.99
32 240097 240097 - HOSE FEMALE COUPLING
$2.99
33 014025 014025 - PACKING
$7.99
34 240098 240098 - HOSE BAND
$6.99
