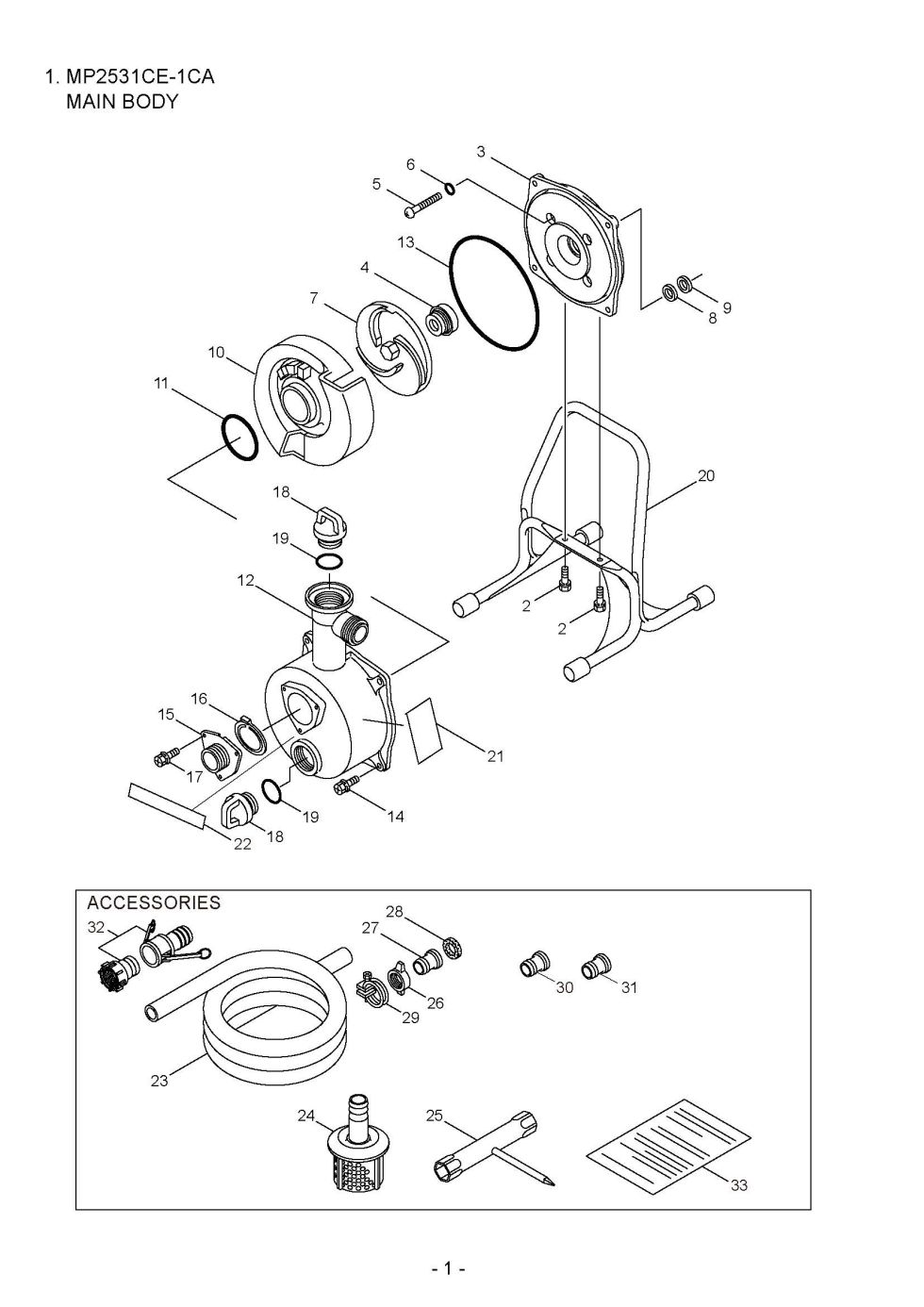

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MP2531CE-1CA. You have selected the Main Body diagram for the Maruyama MP2531CE-1CA Water Pumps. Below you will find an interactive part diagram for the MP2531CE-1CA Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MP2531CE-1CA parts not shown in this diagram you may select from one of the other MP2531CE-1CA part assemblies or select a different Water Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Water Pumps parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 2 | 092513 | 092513 - BOLT |
$2.99
|
|
| 3 | 283896 | 283896 - CASING COVER |
$28.99
|
|
| 4 | 240002 | 240002 - MECHANICAL SEAL |
$24.99
|
|
| 5 | 550162 | 550162 - NLA SCREW |
$2.99
|
|
| 6 | 013918 | 013918 - O-RING |
$2.99
|
|
| 7 | 283910 | 283910 - IMPELLER |
$14.99
|
|
| 8 | 284812 | 284812 - GASKET |
$2.99
|
|
| 9 | 284813 | 284813 - GASKET |
$2.99
|
|
| 10 | 283911 | 283911 - PROTECTOR |
$20.99
|
|
| 11 | 027533 | 027533 - O-RING |
$2.99
|
|
| 12 | 283897 | 283897 - CASING |
$42.99
|
|
| 13 | 012615 | 012615 - O-RING |
$6.99
|
|
| 14 | 092520 | 092520 - BOLT |
$2.99
|
|
| 15 | 240553 | 240553 - USE: 240719 |
$16.99
|
|
| 16 | 283914 | 283914 - CHECK VALVE |
$7.99
|
|
| 17 | 092519 | 092519 - BOLT |
$2.99
|
|
| 18 | 283916 | 283916 - COVER |
$5.99
|
|
| 19 | 284422 | 284422 - O-RING |
$2.99
|
|
| 20 | 283907 | 283907 - BASE |
$46.99
|
|
| 23 | 549288 | 549288 - NLA HOSE |
No Longer Available Obsolete. |
|
| 24 | 284300 | 284300 - STRAINER |
$19.99
|
|
| 25 | 549653 | 549653 - BOX SPANNER |
$2.99
|
|
| 26 | 240028 | 240028 - USE: 272283 |
$5.99
|
|
| 27 | 240858 | 240858 - HOSE COUPLING |
$5.99
|
|
| 28 | 240859 | 240859 - PACKING |
$2.99
|
|
| 29 | 284301 | 284301 - HOSE BAND |
$2.99
|
|
| 30 | 240860 | 240860 - HOSE COUPLING |
$2.99
|
|
| 31 | 240861 | 240861 - NLA ADAPTER |
$2.99
|
|
| 32 | 284562 | 284562 - ONE TOUCH COUPLING |
$39.99
|
