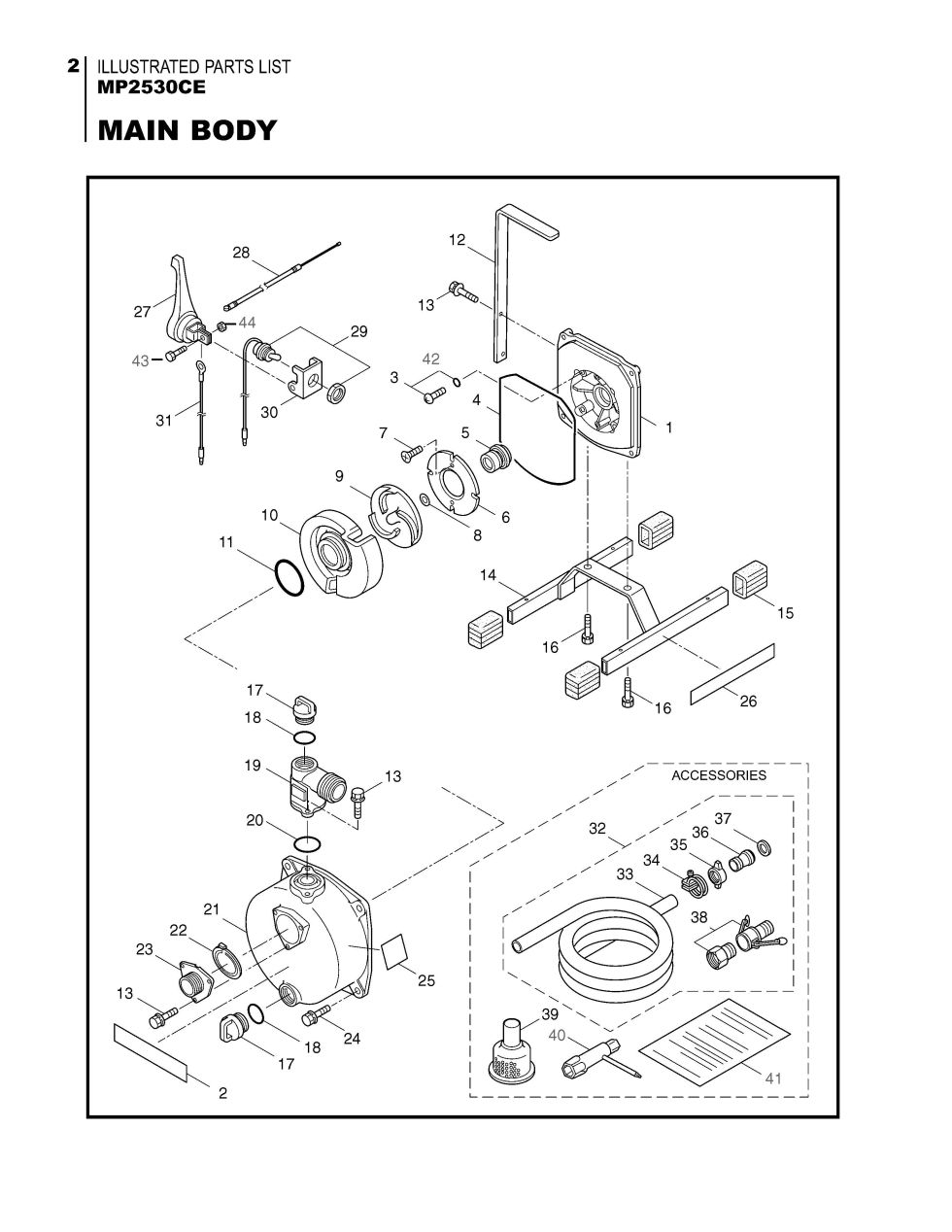

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MP2530CE. You have selected the Main Body diagram for the Maruyama MP2530CE Water Pumps. Below you will find an interactive part diagram for the MP2530CE Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MP2530CE parts not shown in this diagram you may select from one of the other MP2530CE part assemblies or select a different Water Pumps altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Water Pumps parts.

Position number SKU Product title Price
1 240750 240750 - CASING COVER
$70.99
2 547590 547590 - LABEL(MP2530CE)
$2.99
3 547013 547013 - SCREW(M5X0.8X40 W/O-
$2.99
4 014070 014070 - O-RING
$11.99
5 546415 546415 - USE: 240002
$27.99
6 240654 240654 - PLATE
$13.99
7 081709 081709 - SCREW
$2.99
9 240764 240764 - NLA IMPELLER
$37.99
10 240376 240376 - SCROLL
$220.99
11 027533 027533 - O-RING
$2.99
12 240779 240779 - HANDLE
$29.99
13 092519 092519 - BOLT
$2.99
14 240774 240774 - NLA BASE
$56.99
15 240017 240017 - DAMPER
$8.99
16 092513 092513 - BOLT
$2.99
17 240012 240012 - BLIND PLUG
$2.99
18 020285 020285 - O-RING
$2.99
19 240556 240556 - DISCHARGE VALVE
$29.99
20 014178 014178 - O-RING
$2.99
21 240847 240847 - CASING
$58.99
22 240554 240554 - CHECK VALVE
$22.99
23 240719 240719 - INLET PORT
$31.99
24 092520 092520 - BOLT
$2.99
25 547630 547630 - LABEL
$2.99
26 120675 120675 - DECAL
$2.99
27 264876 264876 - THROTTLE LEVER
$17.99
28 265316 265316 - CABLE COMPLETE
$10.99
29 280146 280146 - STOP SWITCH ASSY
$24.99
30 269419 269419 - STAY
$2.99
31 280142 280142 - LEAD
$5.99
32 546285 546285 - SUCTION HOSE ASSY.
$160.99
33 240027 240027 - USE: 998341
$36.99
34 240030 240030 - HOSE BAND
$10.99
35 240028 240028 - USE: 272283
$5.99
36 240858 240858 - HOSE COUPLING
$5.99
37 240859 240859 - PACKING
$2.99
38 534415 534415 - NLA ONE TOUCH COU
$29.99
39 240564 240564 - STRAINER
$21.99
40 210418 210418 - BOX WRENCH/DRIVER
$16.99
42 013918 013918 - O-RING
$2.99
43 081426 081426 - SCREW (M5X15)
$2.99
