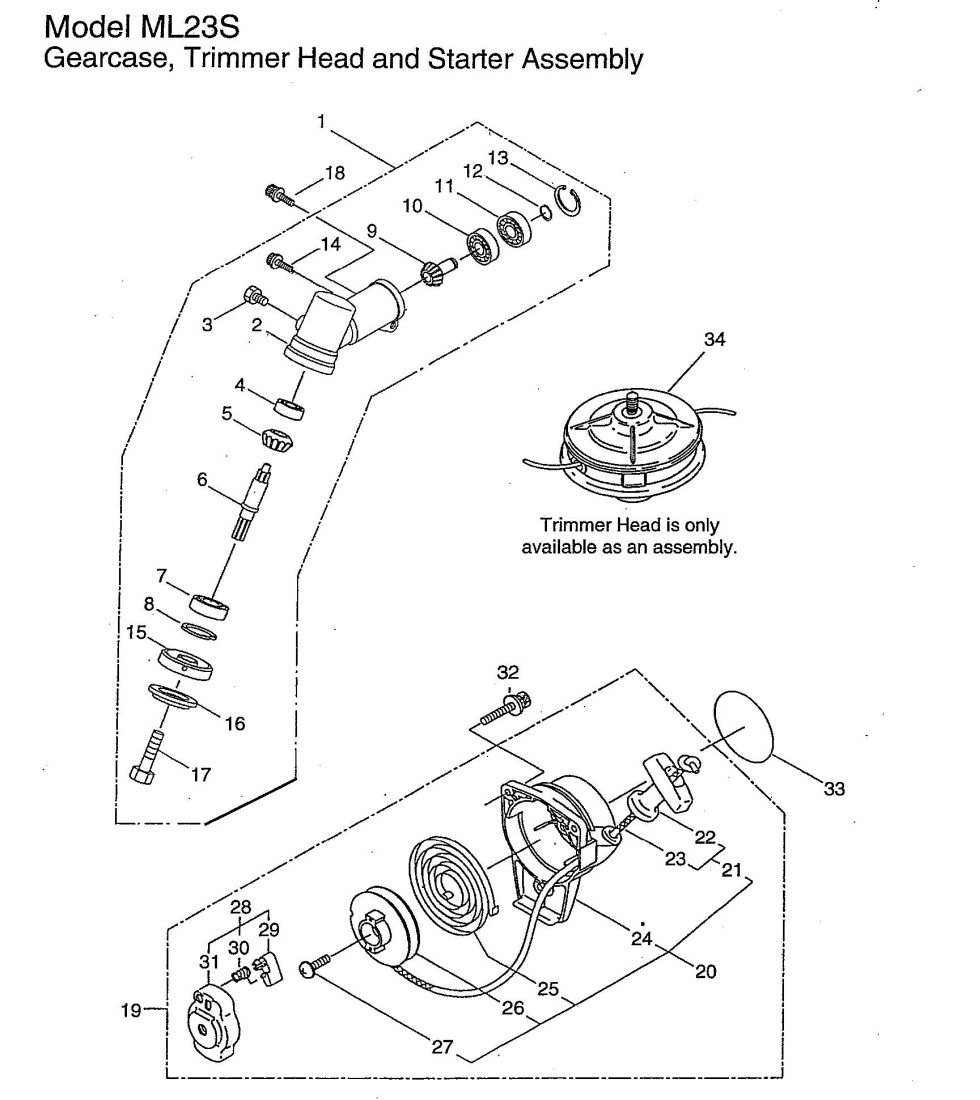

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your ML23S. You have selected the Gearcase diagram for the Maruyama ML23S M-Line Equipment. Below you will find an interactive part diagram for the ML23S Gearcase. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the ML23S parts not shown in this diagram you may select from one of the other ML23S part assemblies or select a different M-Line Equipment altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama M-Line Equipment parts.

Position number SKU Product title Price
1 220066 220066 - GEARCASE ASSEMBLY
$159.99
2 220067 220067 - NLA GEARCASE
$40.99
3 089819 089819 - BOLT
$2.99
4 210554 210554 - BEARING
$9.99
6 215762 215762 - BLADE SHAFT
$46.99
7 212999 212999 - BEARING
$21.99
8 055185 055185 - SNAP RING
$2.99
9 215544 215544 - USE: 227103 (obsolete)
use part #227103
$40.99
10 210560 210560 - BEARING
$10.99
11 140268 140268 - BEARING
$12.99
12 140269 140269 - USE: 228477
$2.99
13 140270 140270 - SNAP RING
$2.99
14 261246 261246 - CAP SCREW M5X25
$2.99
15 212986 212986 - BOSS ADAPTER
$22.99
16 212987 212987 - NLA CLAMPING WAS
$9.99
17 089432 089432 - Obsolete - USE PART #089431 No Longer Available
Obsolete.
18 215993 215993 - CAP SCREW, ALIGNMENT
$2.99
19 263807 263807 - RECOIL STARTER ASSY
$48.99
20 263808 263808 - RECOIL ASSY
$44.99
21 115096 115096 - ROPE/ GRIP ASSY
$19.99
22 261725 261725 - STARTER GRIP
$9.99
23 261627 261627 - STARTER ROPE
$8.99
24 263913 263913 - NLA STARTER ASSY
$33.99
25 261622 261622 - SPIRAL SPRING
$19.99
26 261621 261621 - REEL
$14.99
27 262922 262922 - SCREW
$2.99
28 263471 263471 - STARTER PAWL ASSY
$20.99
29 263473 263473 - PAWL
$10.99
30 263474 263474 - RETURN SPRING
$2.99
31 263472 263472 - STARTER
$19.99
32 261257 261257 - CAP SCREW M4X16
$2.99
33 264742 264742 - NLA LABEL
$2.99
