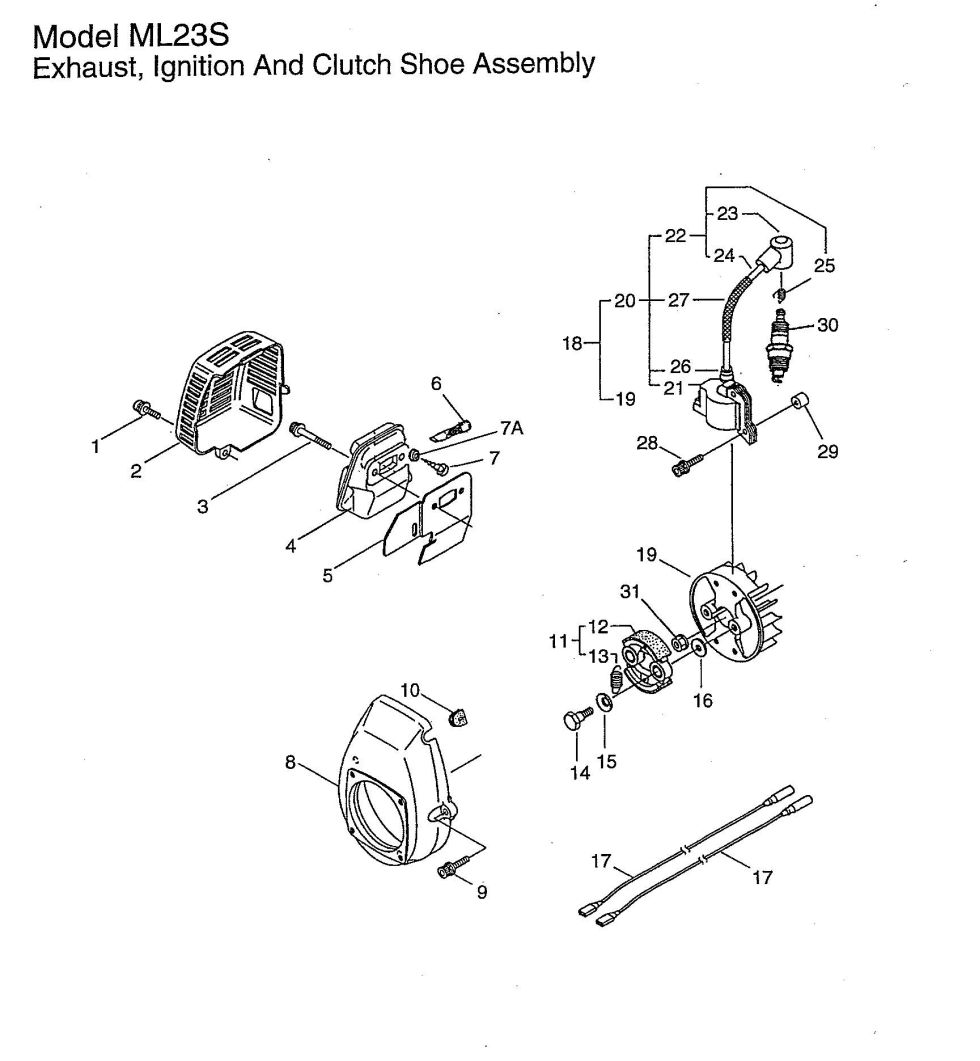

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your ML23S. You have selected the Exhaust, Ignition, Clutch diagram for the Maruyama ML23S M-Line Equipment. Below you will find an interactive part diagram for the ML23S Exhaust, Ignition, Clutch. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the ML23S parts not shown in this diagram you may select from one of the other ML23S part assemblies or select a different M-Line Equipment altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama M-Line Equipment parts.

Position number SKU Product title Price
1 261607 261607 - BOLT M5X16
$2.99
2 263802 263802 - MUFFLER COVER
$19.99
3 264223 264223 - CAP SCREW(M5X40)
$2.99
4 264729 264729 - MUFFLER
$59.99
5 263777 263777 - GASKET
$22.99
6 262395 262395 - SPARK ARRESTER M-LIN
$18.99
7A 264857 264857 - WASHER
$2.99
7 089530 089530 - SCREW(M3X10)
$2.99
8 264732 264732 - FAN COVER
$29.99
9 261250 261250 - BOLT M5X20
$2.99
11 264025 264025 - CLUTCH ASSY.
$24.99
12 264026 264026 - CLUTCH SHOE
$23.99
13 264028 264028 - SPRING CLUTCH
$7.99
14 264505 264505 - CLUTCH BOLT
$5.99
15 261189 261189 - WASHER
$2.99
16 261777 261777 - WAVE WASHER
$2.99
17 263804 263804 - USE: 283735
$2.99
18 263976 263976 - MAGNETO ASSY
$185.99
19 263570 263570 - ROTOR/ FAN
$76.99
20 263978 263978 - USE: 267400
$133.99
21 263977 263977 - USE: 267401
$80.99
22 261744 261744 - USE: 267403 (obsolete)
use part #267403
$23.99
23 261074 261074 - PLUG CAP
$13.99
24 261071 261071 - NLA IGNITION CABLE
$10.99
25 261075 261075 - CONNECTOR
$2.99
26 261072 261072 - CAP
$2.99
27 261073 261073 - TUBE
$8.99
28 261256 261256 - BOLT M4X25
$2.99
29 261078 261078 - NLA SPACER -
$2.99
30 261200 261200 - SPARK PLUG
$20.99
31 261077 261077 - NUT
$7.99
