 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |

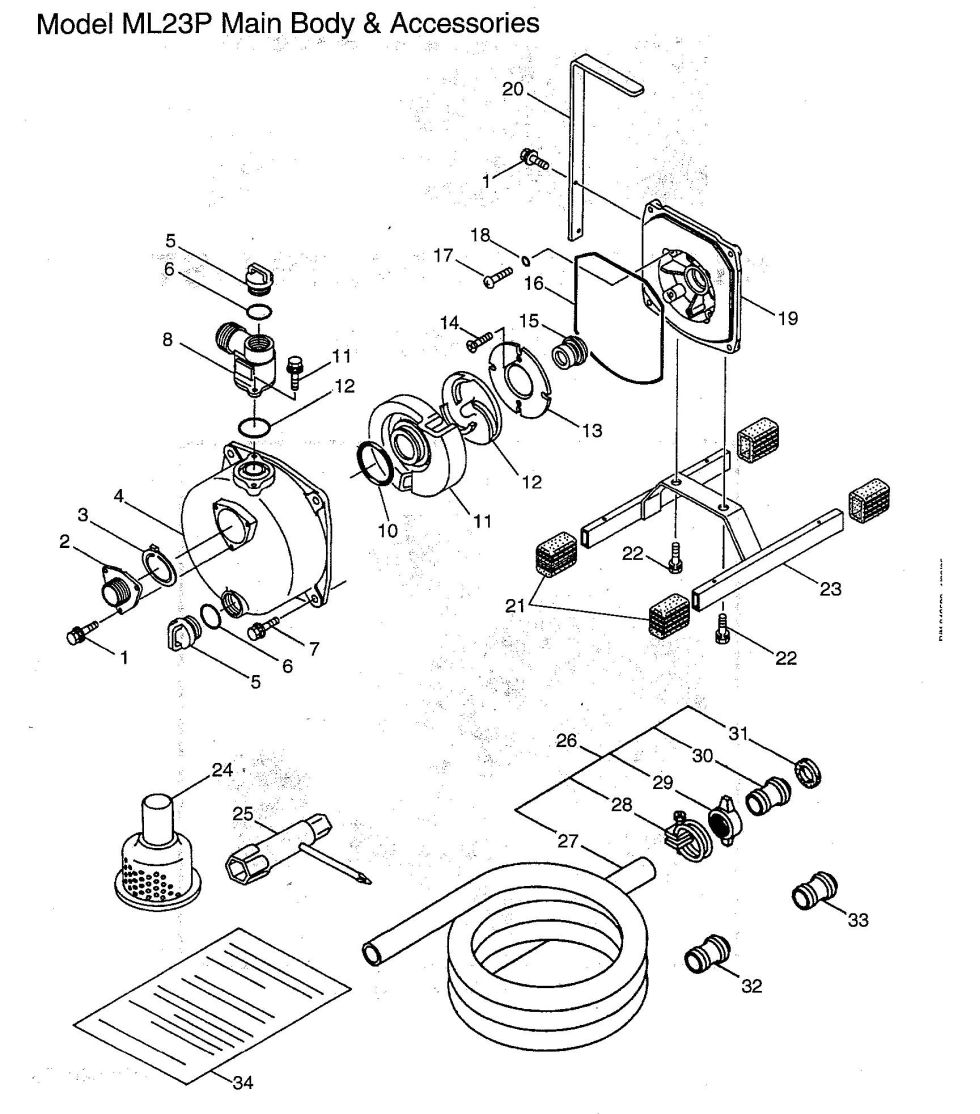

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 092519 | 092519 - BOLT |
$2.99
|
|
| 2 | 240553 | 240553 - USE: 240719 |
$16.99
|
|
| 3 | 240554 | 240554 - CHECK VALVE |
$22.99
|
|
| 4 | 240652 | 240652 - NLA CASING |
$80.99
|
|
| 5 | 240012 | 240012 - BLIND PLUG |
$2.99
|
|
| 6 | 020285 | 020285 - O-RING |
$2.99
|
|
| 7 | 092520 | 092520 - BOLT |
$2.99
|
|
| 8 | 240556 | 240556 - DISCHARGE VALVE |
$29.99
|
|
| 9 | 014178 | 014178 - O-RING |
$2.99
|
|
| 10 | 027533 | 027533 - O-RING |
$2.99
|
|
| 11 | 240376 | 240376 - SCROLL |
$220.99
|
|
| 12 | 240764 | 240764 - NLA IMPELLER |
$37.99
|
|
| 13 | 240654 | 240654 - PLATE |
$13.99
|
|
| 14 | 081709 | 081709 - SCREW |
$2.99
|
|
| 15 | 240002 | 240002 - MECHANICAL SEAL |
$24.99
|
|
| 16 | 014070 | 014070 - O-RING |
$11.99
|
|
| 17 | 550162 | 550162 - NLA SCREW |
$2.99
|
|
| 18 | 013918 | 013918 - O-RING |
$2.99
|
|
| 19 | 240750 | 240750 - CASING COVER |
$70.99
|
|
| 20 | 240752 | 240752 - NLA HANDLE |
$22.99
|
|
| 21 | 240017 | 240017 - DAMPER |
$8.99
|
|
| 22 | 092513 | 092513 - BOLT |
$2.99
|
|
| 23 | 240753 | 240753 - USE: 240774 |
$30.99
|
|
| 24 | 240564 | 240564 - STRAINER |
$21.99
|
|
| 25 | 210418 | 210418 - BOX WRENCH/DRIVER |
$16.99
|
|
| 26 | 240031 | 240031 - NLA SUCTION HOSE |
$78.99
|
|
| 27 | 240027 | 240027 - USE: 998341 |
$36.99
|
|
| 28 | 240030 | 240030 - HOSE BAND |
$10.99
|
|
| 29 | 240028 | 240028 - USE: 272283 |
$5.99
|
|
| 30 | 240029 | 240029 - USE: 240858 |
$2.99
|
|
| 32 | 240101 | 240101 - NLA ADAPTER |
$2.99
|
|
| 33 | 240568 | 240568 - USE: 240861 |
$2.99
|
