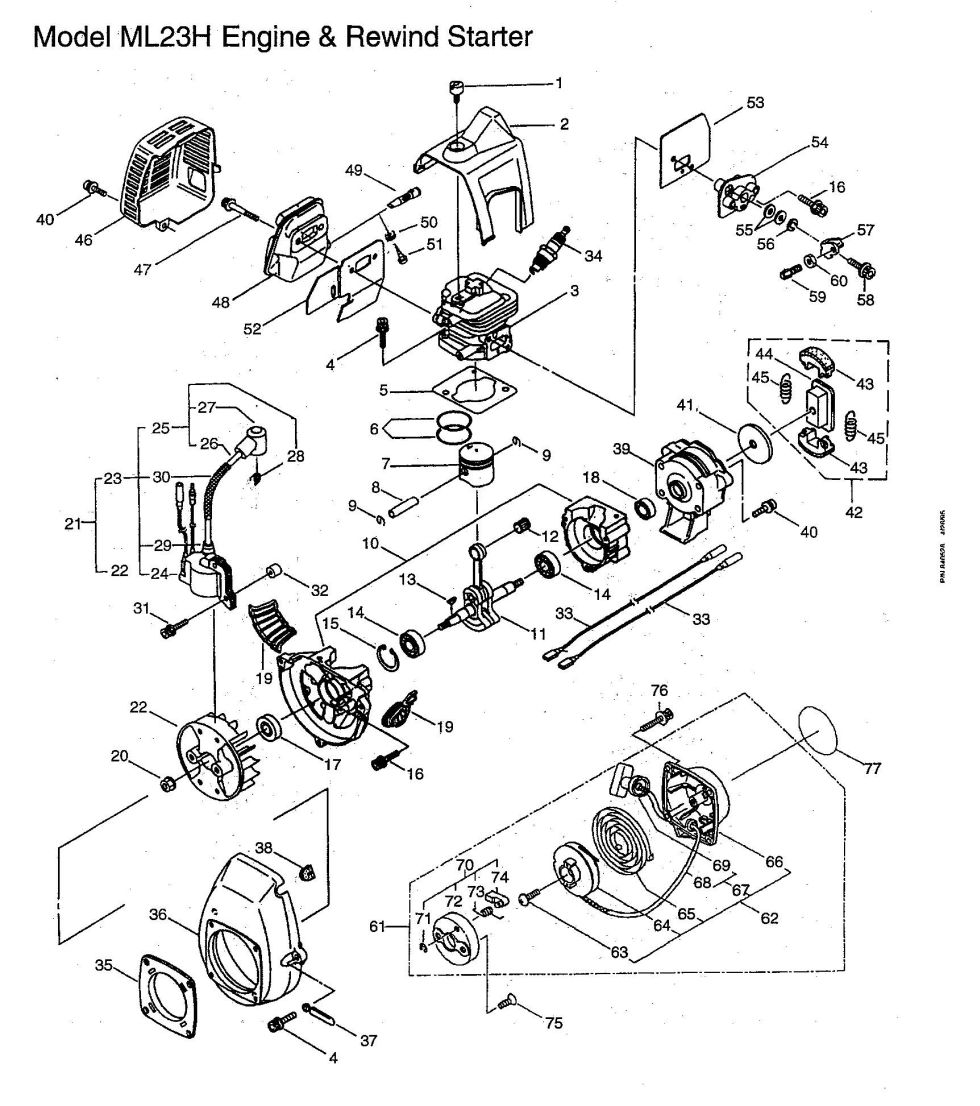

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your ML23H. You have selected the Engine diagram for the Maruyama ML23H M-Line Equipment. Below you will find an interactive part diagram for the ML23H Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the ML23H parts not shown in this diagram you may select from one of the other ML23H part assemblies or select a different M-Line Equipment altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama M-Line Equipment parts.

Position number SKU Product title Price
1 264022 264022 - USE: 286349 (obsolete)
use part #286349
$2.99
2 264976 264976 - CYLINDER COVER
$27.99
3 263768 263768 - CYLINDER
$154.99
4 261250 261250 - BOLT M5X20
$2.99
5 263770 263770 - GASKET
$2.99
6 263789 263789 - PISTON RING
$7.99
7 264719 264719 - USE: 266467
$31.99
8 261036 261036 - PISTON PIN
$16.99
9 261576 261576 - CIRCLIP
$2.99
10 264542 264542 - CRANKCASE
$131.99
11 264643 264643 - CRANKSHAFT
$112.99
12 263957 263957 - BEARING NEEDLE
$21.99
13 261076 261076 - WOODRUFF KEY
$2.99
14 261181 261181 - BEARING
$16.99
15 054676 054676 - SNAP RING
$2.99
16 261246 261246 - CAP SCREW M5X25
$2.99
17 262712 262712 - NLA OIL SEAL
$2.99
18 262713 262713 - NLA OIL SEAL
$2.99
19 264582 264582 - SCREEN
$6.99
20 261077 261077 - NUT
$7.99
21 263976 263976 - MAGNETO ASSY
$185.99
22 263570 263570 - ROTOR/ FAN
$76.99
23 263978 263978 - USE: 267400
$133.99
24 263977 263977 - USE: 267401
$80.99
25 261744 261744 - USE: 267403 (obsolete)
use part #267403
$23.99
26 261071 261071 - NLA IGNITION CABLE
$10.99
27 261074 261074 - PLUG CAP
$13.99
28 261075 261075 - CONNECTOR
$2.99
29 261072 261072 - CAP
$2.99
30 261073 261073 - TUBE
$8.99
31 261256 261256 - BOLT M4X25
$2.99
32 261078 261078 - NLA SPACER -
$2.99
33 261772 261772 - LEAD
$2.99
34 261200 261200 - SPARK PLUG
$20.99
35 265081 265081 - PLATE
$7.99
36 264732 264732 - FAN COVER
$29.99
37 264588 264588 - CLAMP
$2.99
38 261202 261202 - GROMMET
$2.99
39 264585 264585 - CLUTCH CASE
$31.99
40 261607 261607 - BOLT M5X16
$2.99
41 264646 264646 - NLA WASHER
$5.99
42 264959 264959 - NLA CLUTCH ASSY
$29.99
43 264960 264960 - CLUTCH SHOE
$22.99
44 264963 264963 - CLUTCH BOSS
$20.99
45 264964 264964 - SPRING
$6.99
46 263802 263802 - MUFFLER COVER
$19.99
47 264223 264223 - CAP SCREW(M5X40)
$2.99
48 264729 264729 - MUFFLER
$59.99
49 262395 262395 - SPARK ARRESTER M-LIN
$18.99
50 264857 264857 - WASHER
$2.99
51 089530 089530 - SCREW(M3X10)
$2.99
52 263777 263777 - GASKET
$22.99
53 263774 263774 - GASKET
$2.99
54 263772 263772 - INSULATOR
$19.99
55 012487 012487 - WASHER
$2.99
56 089901 089901 - WASHER
$2.99
57 264634 264634 - STAY
$7.99
58 215351 215351 - CAP SCREW(M5X25)
$2.99
59 264736 264736 - ADAPTER
$10.99
60 261878 261878 - NUT
$2.99
61 264534 264534 - RECOIL STARTER ASSY
$45.99
62 264083 264083 - RECOIL ASSY
$43.99
63 262922 262922 - SCREW
$2.99
64 261621 261621 - REEL
$14.99
65 261622 261622 - SPIRAL SPRING
$19.99
66 264084 264084 - NLA STARTER CASE
$33.99
67 115096 115096 - ROPE/ GRIP ASSY
$19.99
68 261627 261627 - STARTER ROPE
$8.99
69 261725 261725 - STARTER GRIP
$9.99
70 264085 264085 - STARTER PAWL ASSY
$17.99
71 020299 020299 - E-SHAPED SNAP RING
$2.99
72 264086 264086 - PAWL CASE
$18.99
73 261631 261631 - RETURN SPRING
$2.99
74 261630 261630 - PAWL
$10.99
75 264535 264535 - SCREW(M6X20)
$2.99
76 264807 264807 - CAP SCREW M5X16
$2.99
77 264742 264742 - NLA LABEL
$2.99
