 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |

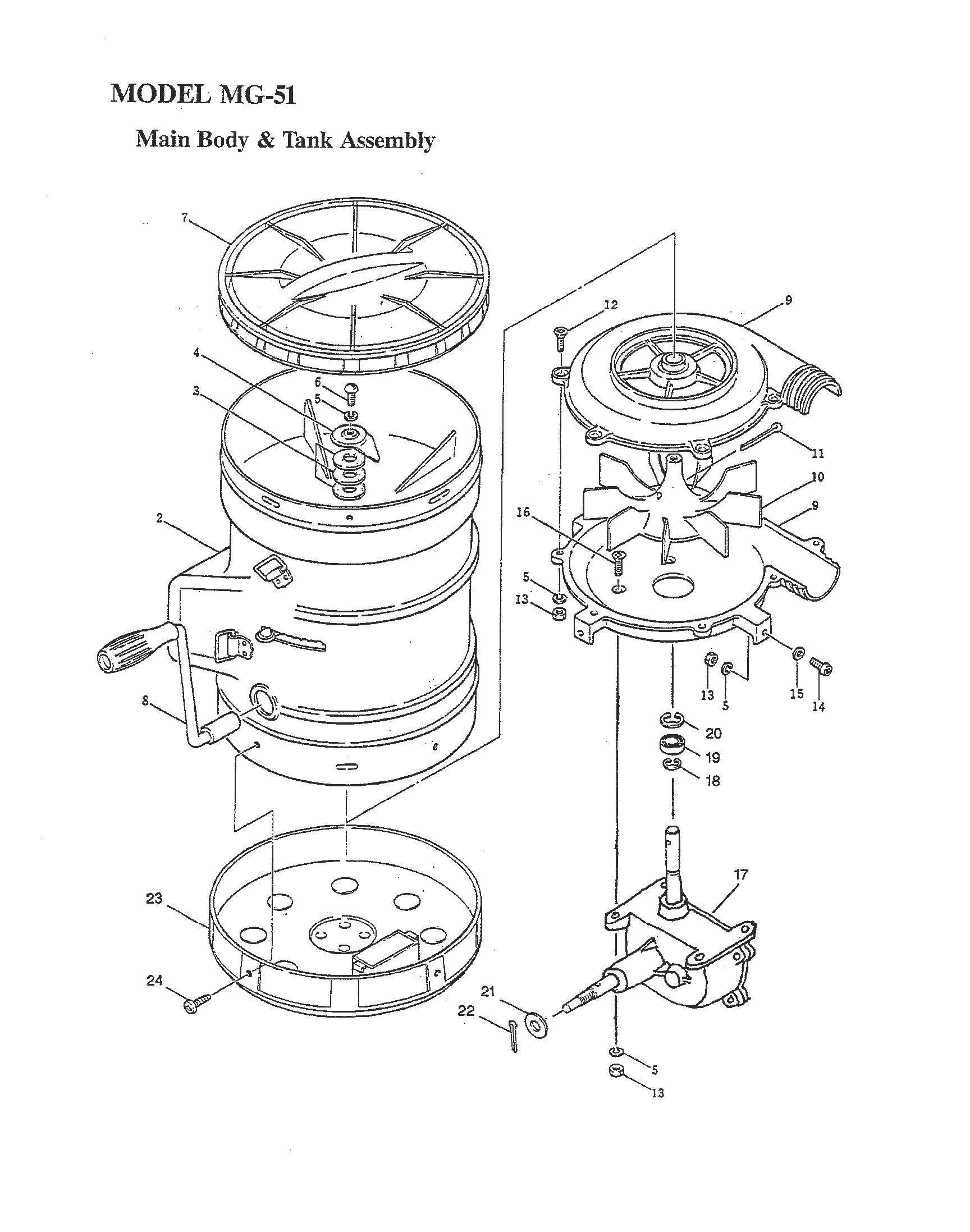

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 2 | 570730 | 570730 - TANMG51K, MAIN BODY |
$75.99
|
|
| 3 | 941002 | 941002 - FELT PACKING |
$2.99
|
|
| 4 | 941003 | 941003 - AGITATOR |
$11.99
|
|
| 5 | 941004 | 941004 - SPRING WASHER M5 |
$2.99
|
|
| 6 | 941005 | 941005 - SCREW M5X10 |
$2.99
|
|
| 7 | 999985 | 999985 - TANK LID |
$30.99
|
|
| 8 | 941011 | 941011 - HANDLE |
$32.99
|
|
| 9 | 941012 | 941012 - FAN CASE |
$58.99
|
|
| 10 | 570731 | 570731 - FAN |
$22.99
|
|
| 11 | 941014 | 941014 - COTTER PIN (3MMX35) |
$2.99
|
|
| 12 | 941015 | 941015 - SCREW M5X18 |
$2.99
|
|
| 13 | 941016 | 941016 - USE: 081027 |
No Longer Available Obsolete. |
|
| 14 | 941017 | 941017 - SCREW M5X12 |
$2.99
|
|
| 15 | 941018 | 941018 - USE: 12487 |
$2.99
|
|
| 16 | 941019 | 941019 - SCREW M5X18 |
$2.99
|
|
| 17 | 941020 | 941020 - GEAR CASE ASSY |
$99.99
|
|
| 18 | 941024 | 941024 - USE: 13515 |
$2.99
|
|
| 19 | 570732 | 570732 - BEARING |
$23.99
|
|
| 20 | 570733 | 570733 - SNAP RING |
$2.99
|
|
| 21 | 941028 | 941028 - WASHER M10 |
$2.99
|
|
| 22 | 941029 | 941029 - COTTER PIN |
$2.99
|
|
| 23 | 570737 | 570737 - TANK BASE |
$23.99
|
|
| 24 | 570738 | 570738 - TAPPING SCREW |
$2.99
|
