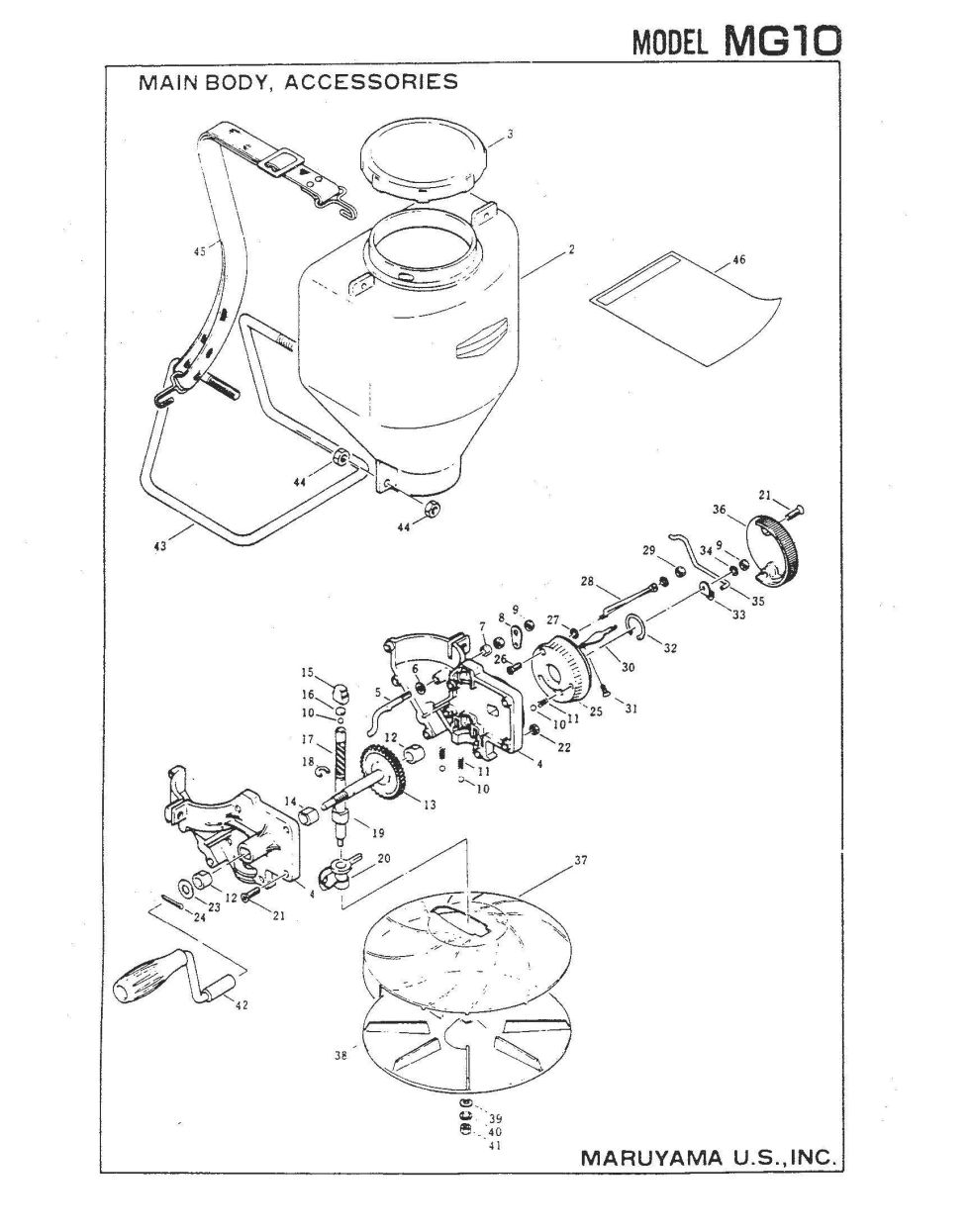

Main Body - Accessories

Main Body - Accessories

Thank you for shopping at MaruyamaParts.com and for using our parts lookup system to find your MG10 parts. You have selected the Main Body - Accessories diagram for the Maruyama MG10. Below you will find an interactive part diagram for the MG10. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the M23H parts not shown in this diagram you may select from one of the other MG10 part assemblies or select a different Manual Duster altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Big M Equipment parts.

Position number SKU Product title Price
2 976579 976579 - CHEMICAL TANK
$74.99
3 976578 976578 - CHEMICAL TANK LID
$22.99
4 941045 941045 - GEAR CASE
$28.99
5 941046 941046 - AGITATOR SHAFT
$6.99
6 941018 941018 - USE: 12487
$2.99
7 941047 941047 - COLLAR
$2.99
8 941048 941048 - AGITATOR ARM B
$2.99
9 941016 941016 - USE: 081027 No Longer Available
Obsolete.
10 941025 941025 - STEEL BALL
$2.99
11 941049 941049 - SPRING
$2.99
12 941050 941050 - HANDLE SHAFT METAL A
$2.99
13 941051 941051 - HANDLE SHAFT
$28.99
14 941052 941052 - HANDLE SHAFT METAL B
$2.99
15 941053 941053 - PROPELLER SHAFT META
$2.99
16 941054 941054 - WASHER
$2.99
17 941055 941055 - PROPELLER SHAFT
$30.99
18 941056 941056 - C-SHAPED SNAP RING
$2.99
19 941057 941057 - PROPELLER SHAFT META
$5.99
20 941058 941058 - DIRECTION ADJUSTER
$14.99
21 941059 941059 - SCREW
$2.99
22 941060 941060 - NUT M4
$2.99
23 941028 941028 - WASHER M10
$2.99
24 941029 941029 - COTTER PIN
$2.99
25 941061 941061 - NLA VOLUME ADJUSTER
$14.99
26 941062 941062 - SCREW
$2.99
27 941063 941063 - WASHER
$2.99
28 941064 941064 - SHUTTER ROD
$13.99
29 941065 941065 - NUT M3
$2.99
30 941066 941066 - VOLUME SHUTTER
$13.99
31 941068 941068 - SCREW
$2.99
32 941069 941069 - C-SHAPED SNAP RING
$2.99
33 941070 941070 - AGITATOR ARM A
$8.99
34 941004 941004 - SPRING WASHER M5
$2.99
35 941071 941071 - AGITATOR ROD
$13.99
36 941072 941072 - VOLUME ADJUSTER COVE
$12.99
37 941531 941531 - USE: 941073
$19.99
38 941074 941074 - PROPELLER
$18.99
39 012488 012488 - WASHER M6
$2.99
40 941532 941532 - TOOTHED WASHER
$2.99
41 941076 941076 - NUT M6
$2.99
42 941077 941077 - HANDLE
$25.99
43 941533 941533 - HANGING FRAME
$28.99
44 941032 941032 - NUT
$2.99
45 941033 941033 - STRAP
$19.99
