 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |

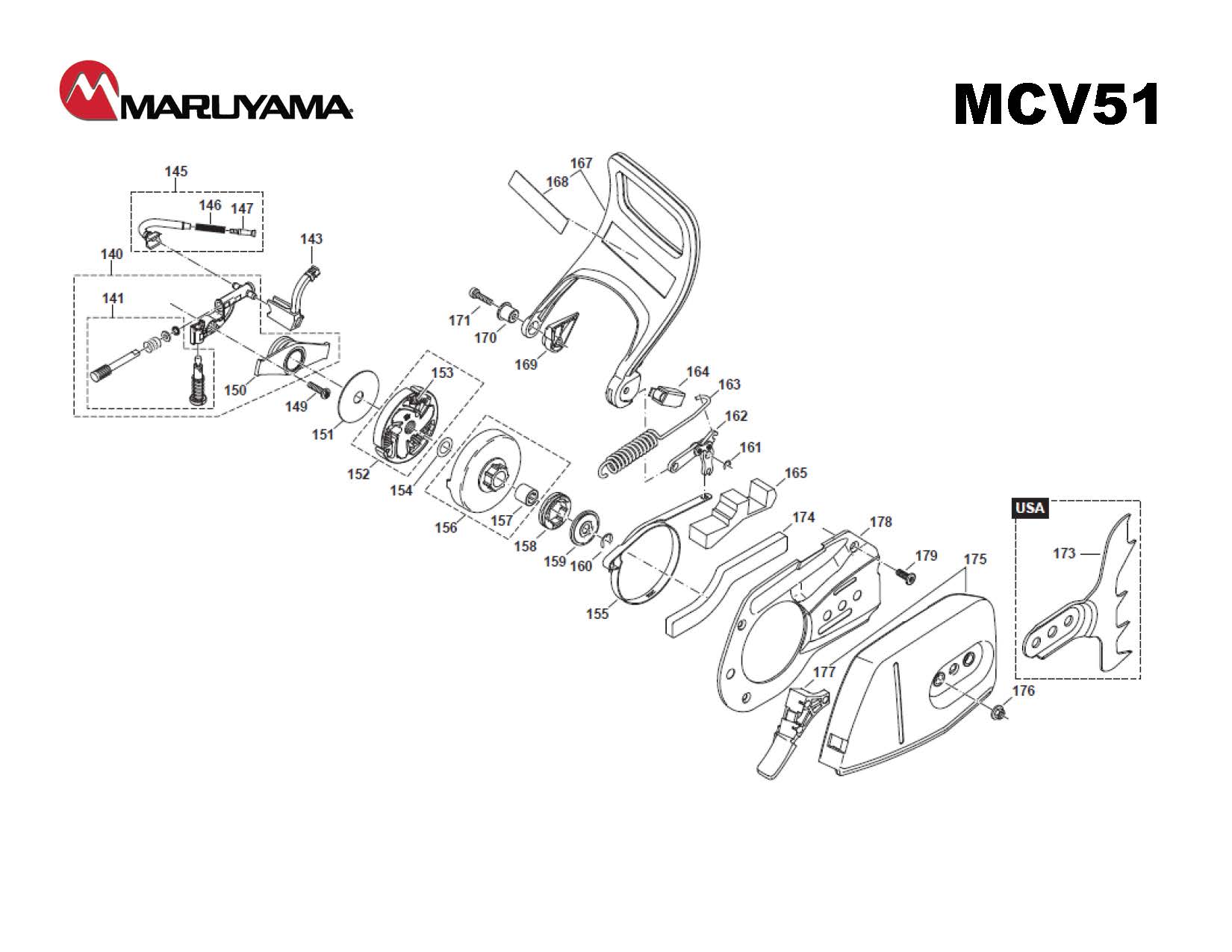

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 140 | 841915 | 841915 - OIL PUMP CPL. |
$135.99
|
|
| 141 | 841916 | 841916 - NLA REPAIR KIT, OIL |
$146.99
|
|
| 143 | 841914 | 841914 - PRESSURE LINE |
$26.99
|
|
| 145 | 841913 | 841913 - SUCTION LINE |
$28.99
|
|
| 146 | 841808 | 841808 - SPRING |
$2.99
|
|
| 147 | 841803 | 841803 - HOSE STEM |
$2.99
|
|
| 149 | 841931 | 841931 - SCREW |
$2.99
|
|
| 150 | 841912 | 841912 - PUMP DRIVE |
$46.99
|
|
| 151 | 841802 | 841802 - DISC |
$12.99
|
|
| 152 | 841891 | 841891 - CLUTCH ASSY. |
$61.99
|
|
| 153 | 841892 | 841892 - SPRING |
$8.99
|
|
| 154 | 841911 | 841911 - SHIM |
$2.99
|
|
| 155 | 841893 | 841893 - BRAKE SPRING |
$46.99
|
|
| 156 | 841909 | 841909 - CLUTCH DRUM CPL. |
$86.99
|
|
| 157 | 841962 | 841962 - NEEDLE SLEEVER |
$26.99
|
|
| 158 | 841809 | 841809 - USE: 840483 |
$26.99
|
|
| 159 | 841910 | 841910 - DISC |
$22.99
|
|
| 160 | 841941 | 841941 - WASHER |
$2.99
|
|
| 161 | 841940 | 841940 - SAFETY WASHER |
$2.99
|
|
| 162 | 841895 | 841895 - BRAKING MECHANISM |
$44.99
|
|
| 163 | 841894 | 841894 - TENSION SPRING |
$17.99
|
|
| 164 | 841897 | 841897 - HANDGUARD GUIDE, CPL |
$46.99
|
|
| 165 | 841907 | 841907 - FOAM SPONGE |
$19.99
|
|
| 167 | 841896 | 841896 - HAND GUARD CPL. |
$74.99
|
|
| 168 | 841972 | 841972 - LABEL |
$2.99
|
|
| 169 | 841905 | 841905 - SPACER |
$10.99
|
|
| 170 | 841906 | 841906 - BUSHING |
$14.99
|
|
| 171 | 841932 | 841932 - SCREW |
$2.99
|
|
| 173 | 841919 | 841919 - SPIKE BAR |
$43.99
|
|
| 174 | 841908 | 841908 - FOAM SPONGE |
$11.99
|
|
| 175 | 841957 | 841957 - SPROCKET GUARD CPL. |
$49.99
|
|
| 176 | 841938 | 841938 - HAXAGONAL NUT |
$5.99
|
|
| 177 | 841956 | 841956 - CHIP GUIDE |
$18.99
|
|
| 178 | 841898 | 841898 - COVER |
$23.99
|
|
| 179 | 841928 | 841928 - SCREW |
$2.99
|
