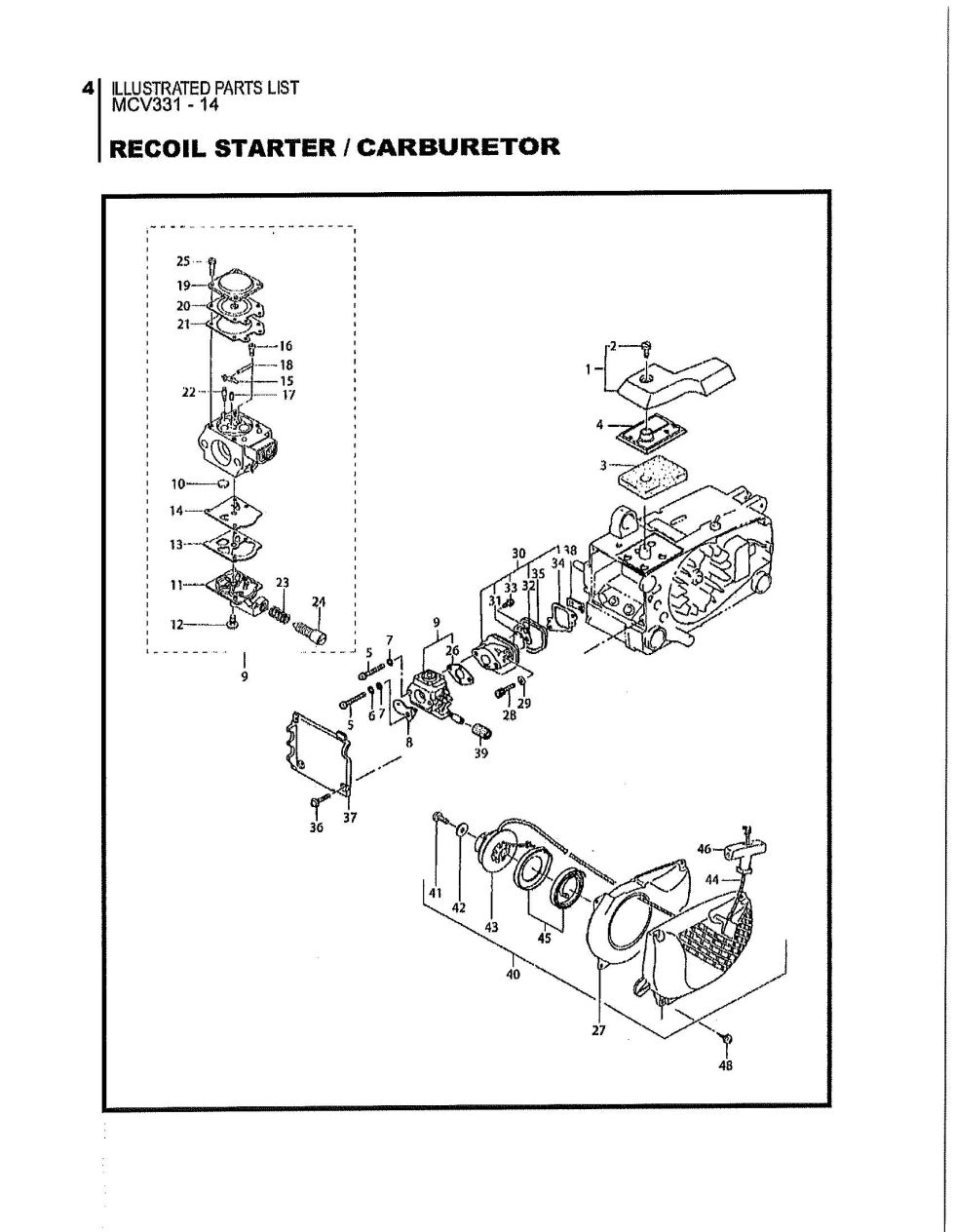

Recoil Starter/ Carburetor

Recoil Starter/ Carburetor

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MCV331-14. You have selected the Recoil Starter/ Carburetor diagram for the Maruyama MCV331-14 Chainsaws. Below you will find an interactive part diagram for the MCV331-14 Recoil Starter. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MCV331-14 parts not shown in this diagram you may select from one of the other MCV331-14 part assemblies or select a different Chainsaws altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Chainsaws parts.

Position number SKU Product title Price
1 400613 400613 - CLEANER COVER
$22.99
2 400614 400614 - CLEANER COVER BOLT
$2.99
3 620652 620652 - CLEANER SPONGE
$8.99
4 620393 620393 - AIR CLEANER ELEMENT
$18.99
5 975822 975822 - SCREW
$2.99
6 972380 972380 - WASHER M5
$2.99
7 400615 400615 - CHOKE VALVE SHIM
$17.99
8 400616 400616 - CHOKE VALVE
$8.99
9 400617 400617 - CARBURETOR ASSY WT-7
$152.99
26 991541 991541 - PACKING
$8.99
27 400633 400633 - AIR DEFLECTOR
$11.99
28 620390 620390 - HEX HOLE BOLT 5X20
$2.99
30 403968 403968 - CARBURETOR INSULATOR
$75.99
31 403969 403969 - REED
$14.99
32 403970 403970 - VALVE HOLDER
$12.99
33 620396 620396 - BINDING HEAD SCREW
$2.99
34 403971 403971 - INSULATOR GASKET
$6.99
35 400637 400637 - CARBURETOR INSULATOR
$8.99
36 625134 625134 - TAPPING SCREW
$2.99
37 625119 625119 - AIR CLEANER COVER B,
$30.99
38 620401 620401 - SEAL COVER
$7.99
39 400639 400639 - IDLE SPONGE 25L
$2.99
40 403975 403975 - RECOIL STARTER ASSY
$80.99
41 620409 620409 - TAPPING SCREW
$2.99
42 400641 400641 - BRAKE SHAFT WASHER
$2.99
43 620410 620410 - STARTER PULLEY
$30.99
44 620411 620411 - STARTER ROPE
$17.99
45 620412 620412 - RECOIL SPRING CASE
$37.99
46 400642 400642 - STARTER HANDLE
$17.99
48 620415 620415 - TAPPING SCREW
$2.99
