Oil Pump

Oil Pump

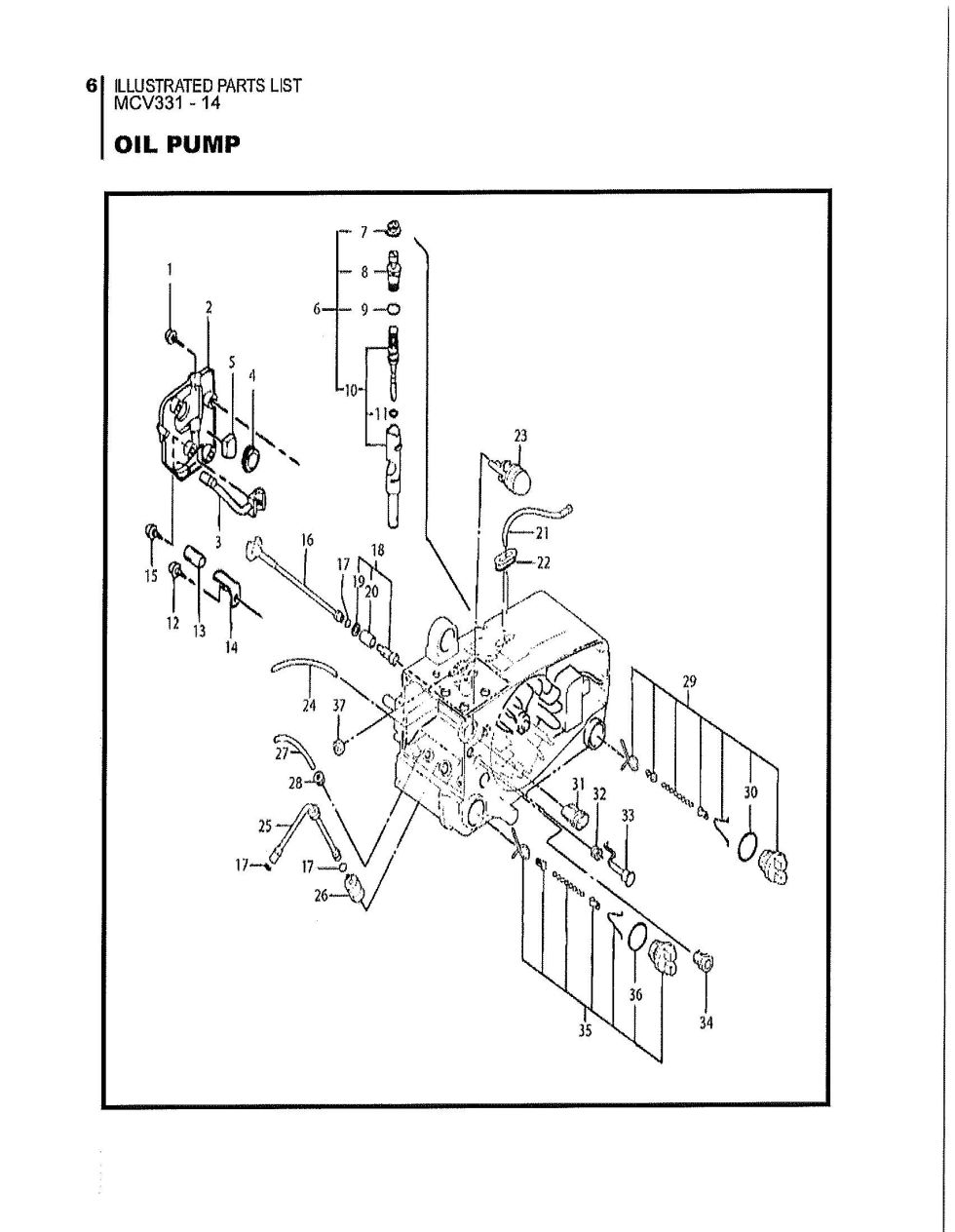

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MCV331-14. You have selected the Oil Pump diagram for the Maruyama MCV331-14 Chainsaws. Below you will find an interactive part diagram for the MCV331-14 Oil Pump. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MCV331-14 parts not shown in this diagram you may select from one of the other MCV331-14 part assemblies or select a different Chainsaws altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Chainsaws parts.

Position number SKU Product title Price
1 620420 620420 - SCREW
$2.99
2 620421 620421 - OIL PUMP COVER
$24.99
3 400644 400644 - OIL PIPE A
$21.99
4 620422 620422 - GEAR
$56.99
5 400645 400645 - AIR VENT SPONGE
$2.99
6 620423 620423 - OIL PUMP ASSY
$112.99
7 400646 400646 - OIL ADJUST GROMMET
$2.99
8 400647 400647 - OIL PUMP ADJUSTER
$18.99
9 979658 979658 - ORING
$2.99
10 620424 620424 - OIL PUMP CASE SET
$93.99
12 620409 620409 - TAPPING SCREW
$2.99
13 400648 400648 - VINYL PIPE
$2.99
14 400649 400649 - CHAIN CATCHER
$8.99
15 625134 625134 - TAPPING SCREW
$2.99
16 400650 400650 - OIL PIPE B
$21.99
17 400651 400651 - CLIP 7
$2.99
18 620402 620402 - OIL FILTER BODY ASSY
$17.99
19 947034 947034 - WASHER
$2.99
20 400652 400652 - OIL FILTER
$2.99
21 403973 403973 - THROTTLE WIRE COMP
$32.99
22 403974 403974 - WIRE GROMMET
$2.99
23 620404 620404 - PRIMING PUMP ASSY
$49.99
24 620405 620405 - FUEL PIPE
$2.99
25 629287 629287 - RUBBER PIPE
$24.99
26 400655 400655 - PUMP FILTER BODY ASS
$24.99
27 400656 400656 - FUEL PIPE
$5.99
28 400657 400657 - RETURN GROMMET
$2.99
29 400658 400658 - OIL TANK CAP ASSY
$27.99
30 995368 995368 - O-RING (BUNA-N) P-18
$2.99
31 400659 400659 - ADJUSTER CAP
$8.99
32 400660 400660 - GROMMET
$2.99
33 400661 400661 - CHOKE BUTTON COMP
$21.99
34 400662 400662 - GROMMET
$2.99
35 400663 400663 - FUEL TANK CAP ASSY
$28.99
36 979662 979662 - O-RING
$2.99
37 970140 970140 - NUT
$2.99
