MC3210 Engine

MC3210 Engine

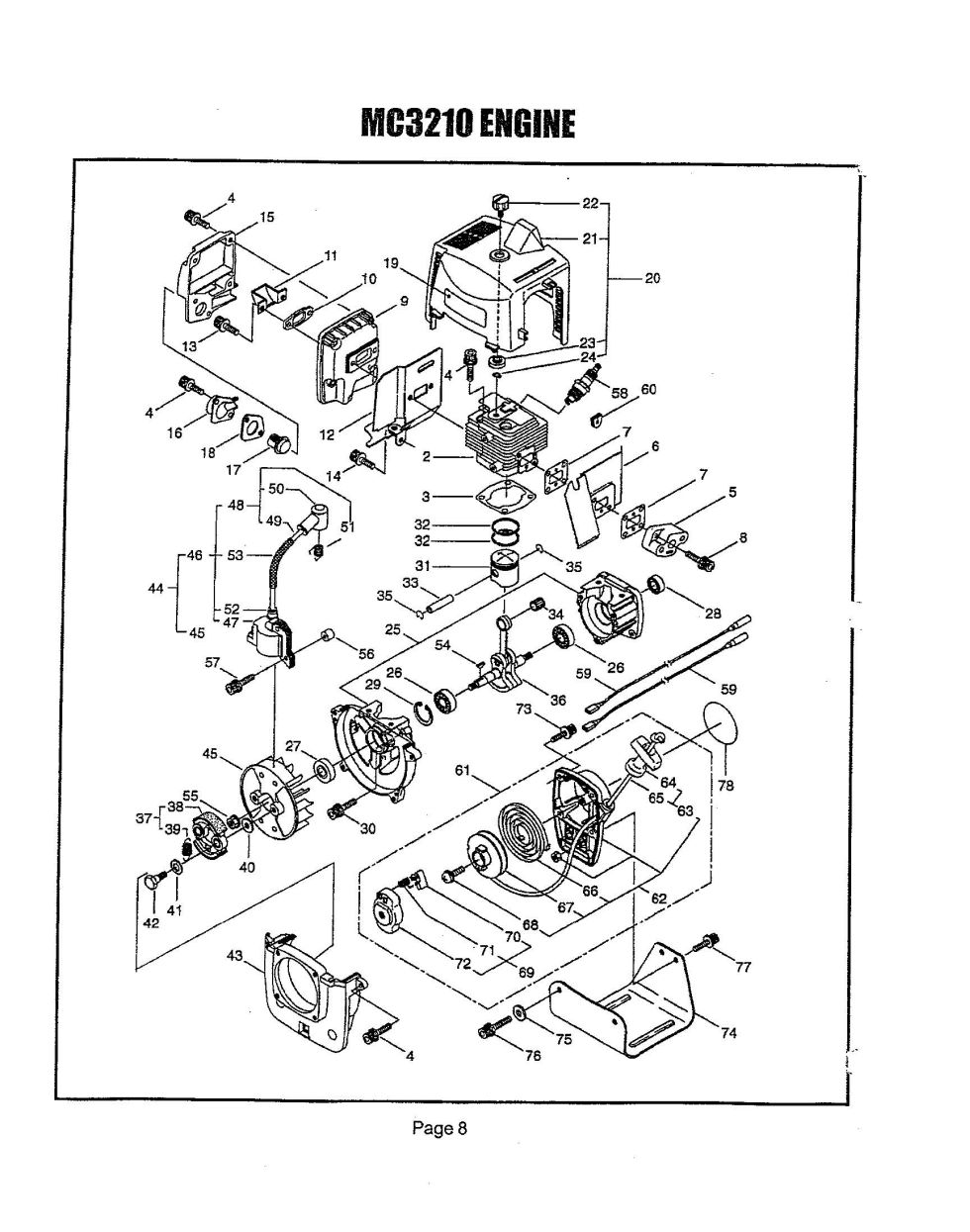

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MC2300,MC2610,MC3210. You have selected the MC3210 Engine diagram for the Maruyama MC2300,MC2610,MC3210 Multicutters. Below you will find an interactive part diagram for the MC2300,MC2610,MC3210 MC3210 Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MC2300,MC2610,MC3210 parts not shown in this diagram you may select from one of the other MC2300,MC2610,MC3210 part assemblies or select a different Multicutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Multicutters parts.

Position number SKU Product title Price
2 261360 261360 - CYLINDER
$132.99
3 262201 262201 - GASKET
$2.99
4 261250 261250 - BOLT M5X20
$2.99
5 266317 266317 - INSULATOR
$28.99
6 261364 261364 - HEAT SHIELD
$19.99
7 261171 261171 - GASKET
$2.99
8 265924 265924 - CAP SCREW 5X25
$2.99
9 262448 262448 - NLA MUFFLER BODY
$32.99
10 261368 261368 - PLATE
$17.99
12 261833 261833 - GASKET ASSY
$23.99
13 261246 261246 - CAP SCREW M5X25
$2.99
14 261607 261607 - BOLT M5X16
$2.99
15 262450 262450 - MUFFLER COVER
$34.99
16 262442 262442 - MUFFLER TAIL
$21.99
17 262443 262443 - SPARK PROTECTOR
$19.99
18 262446 262446 - GASKET
$6.99
19 262100 262100 - LABEL
$5.99
20 266341 266341 - TOP COVER ASSY
$37.99
21 265759 265759 - TOP COVER
$30.99
22 261018 261018 - KNOB
$7.99
23 261020 261020 - SPACER
$2.99
24 261734 261734 - SNAP RING
$2.99
25 261379 261379 - CRANKCASE
$145.99
26 261384 261384 - BEARING
$15.99
27 261385 261385 - OIL SEAL
$6.99
28 261386 261386 - OIL SEAL
$2.99
29 016732 016732 - C SHAPED SNAP RING 3
$2.99
30 261612 261612 - BOLT
$2.99
31 261388 261388 - USE: 266980
$22.99
32 261390 261390 - PISTON RING
$13.99
33 261555 261555 - PISTON PIN
$11.99
34 261392 261392 - NEEDLE BEARING
$21.99
35 261393 261393 - PISTON PIN CLIP
$2.99
36 261395 261395 - CRANKSHAFT
$146.99
37 264887 264887 - CLUTCH ASSY.
$28.99
38 264888 264888 - CLUTCH SHOE
$22.99
39 264889 264889 - SPRING
$5.99
40 261189 261189 - WASHER
$2.99
41 261777 261777 - WAVE WASHER
$2.99
42 264505 264505 - CLUTCH BOLT
$5.99
43 266319 266319 - USE: 281325
$34.99
44 261355 261355 - MAGNETO ASSY
$135.99
45 261356 261356 - ROTOR
$69.99
46 261301 261301 - IGNITION COIL ASSY
$108.99
48 261744 261744 - USE: 267403 (obsolete)
use part #267403
$23.99
49 261071 261071 - NLA IGNITION CABLE
$10.99
50 261074 261074 - PLUG CAP
$13.99
51 261075 261075 - CONNECTOR
$2.99
52 261072 261072 - CAP
$2.99
53 261073 261073 - TUBE
$8.99
54 261076 261076 - WOODRUFF KEY
$2.99
55 261417 261417 - ROTOR NUT
$8.99
56 261078 261078 - NLA SPACER -
$2.99
57 261256 261256 - BOLT M4X25
$2.99
58 261200 261200 - SPARK PLUG
$20.99
59 261772 261772 - LEAD
$2.99
60 261202 261202 - GROMMET
$2.99
61 262006 262006 - RECOIL STARTER ASSY
$47.99
62 262039 262039 - REWIND STARTER ASSY
$45.99
63 261723 261723 - ROPE ASSY
$24.99
64 261725 261725 - STARTER GRIP
$9.99
65 261724 261724 - STARTER ROPE
$9.99
66 261721 261721 - SPIRAL SPRING
$24.99
67 261720 261720 - NLA REEL
$13.99
68 262992 262992 - COVER PLATE
$11.99
69 263475 263475 - STARTER PAWL ASSY
$28.99
70 263477 263477 - PAWL
$10.99
71 261728 261728 - RETURN SPRING
$2.99
72 263476 263476 - STARTER
$24.99
73 261257 261257 - CAP SCREW M4X16
$2.99
74 264659 264659 - ENGINE STAND AE320
$18.99
75 263743 263743 - WASHER
$2.99
76 261999 261999 - CAP SCREW M5X40
$2.99
