Driveshaft Assembly

Driveshaft Assembly

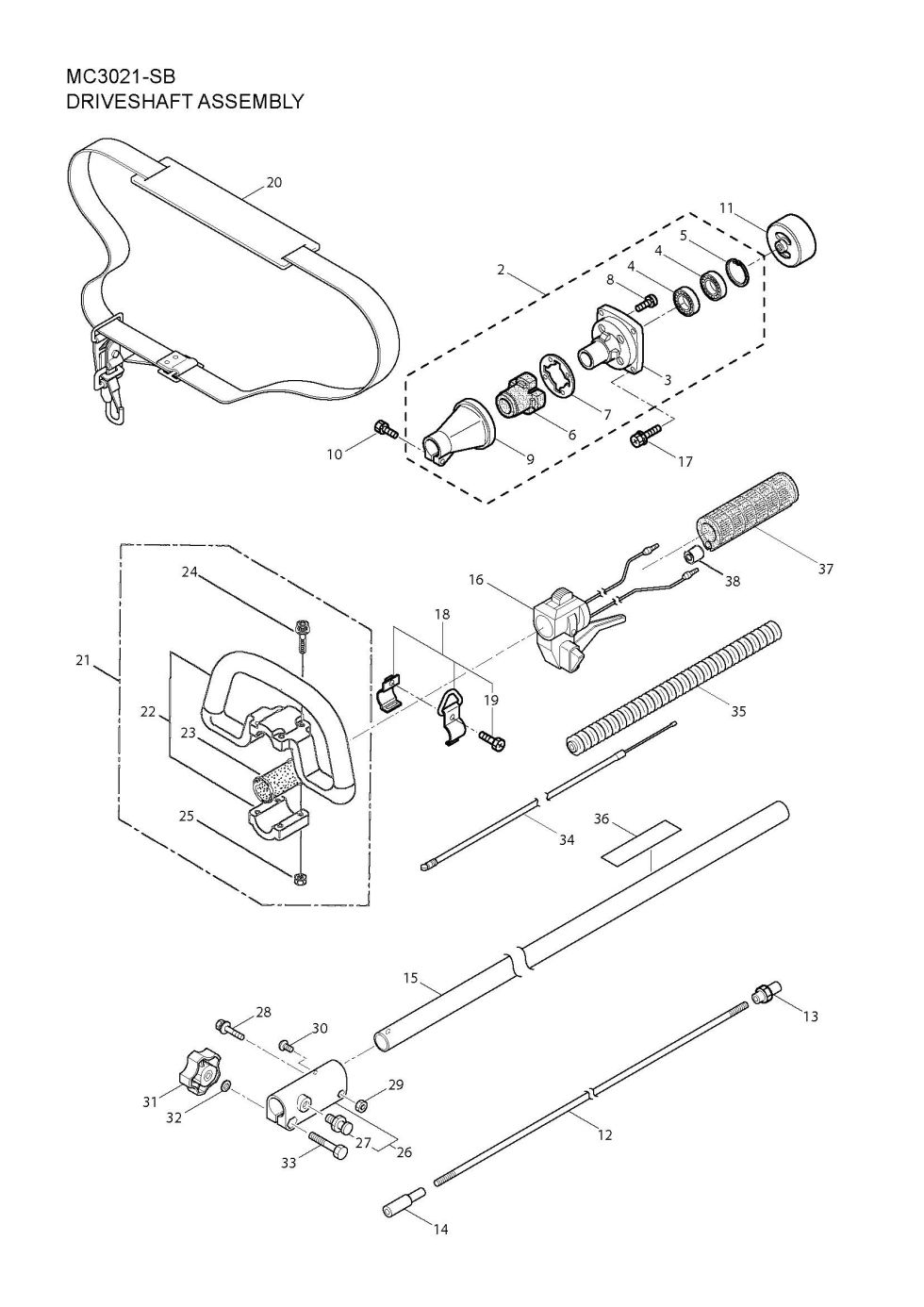

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MC3021-SB. You have selected the Driveshaft Assembly diagram for the Maruyama MC3021-SB Multicutters. Below you will find an interactive part diagram for the MC3021-SB Driveshaft Assembly. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MC3021-SB parts not shown in this diagram you may select from one of the other MC3021-SB part assemblies or select a different Multicutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Multicutters parts.

Position number SKU Product title Price
2 215512 215512 - CLUTCH CASE ASSY
$150.99
3 214592 214592 - BEARING CASE
$39.99
4 214161 214161 - USE: 102680
$13.99
5 054676 054676 - SNAP RING
$2.99
6 214162 214162 - BUFFER
$28.99
7 214163 214163 - WASHER
$11.99
8 092033 092033 - SCREW(M5X15)
$2.99
9 214593 214593 - DRIVESHAFT TUBE ADAP
$41.99
10 261246 261246 - CAP SCREW M5X25
$2.99
11 054677 054677 - CLUTCH DRUM
$32.99
12 219084 219084 - DRIVESHAFT
$27.99
13 211464 211464 - UPPER ADAPTER
$19.99
14 215276 215276 - LOWER ADAPTER
$42.99
15 219085 219085 - DRIVESHAFT TUBE
$40.99
16 221465 221465 - THROTTLE TRIGGER
$62.99
17 261250 261250 - BOLT M5X20
$2.99
18 054691 054691 - HANGING BRACKET ASSY
$13.99
19 089738 089738 - BOLT
$2.99
20 220533 220533 - SHOULDER STRAP ASSY
$28.99
21 215601 215601 - LOOP HANDLE ASSY
$27.99
22 214982 214982 - HANDLE ASSY
$28.99
23 213171 213171 - PACKING
$8.99
24 215608 215608 - CAP SCREW
$2.99
25 089846 089846 - NUT M5 (obsolete)
use part #081027
$2.99
26 219490 219490 - SHAFT COUPLER ASSY
$33.99
27 217171 217171 - PLUNGER ASSY
$19.99
28 215351 215351 - CAP SCREW(M5X25)
$2.99
30 219087 219087 - CAP SCREW
$2.99
31 219088 219088 - CLAMPING KNOB
$27.99
32 550131 550131 - WASHER
$2.99
33 089976 089976 - BOLT
$2.99
34 213444 213444 - THROTTLE CABLE
$13.99
35 213548 213548 - PLASTIC TUBE
$2.99
37 215532 215532 - SHAFT GRIP
$24.99
38 214083 214083 - OUTER GUIDE
$2.99
