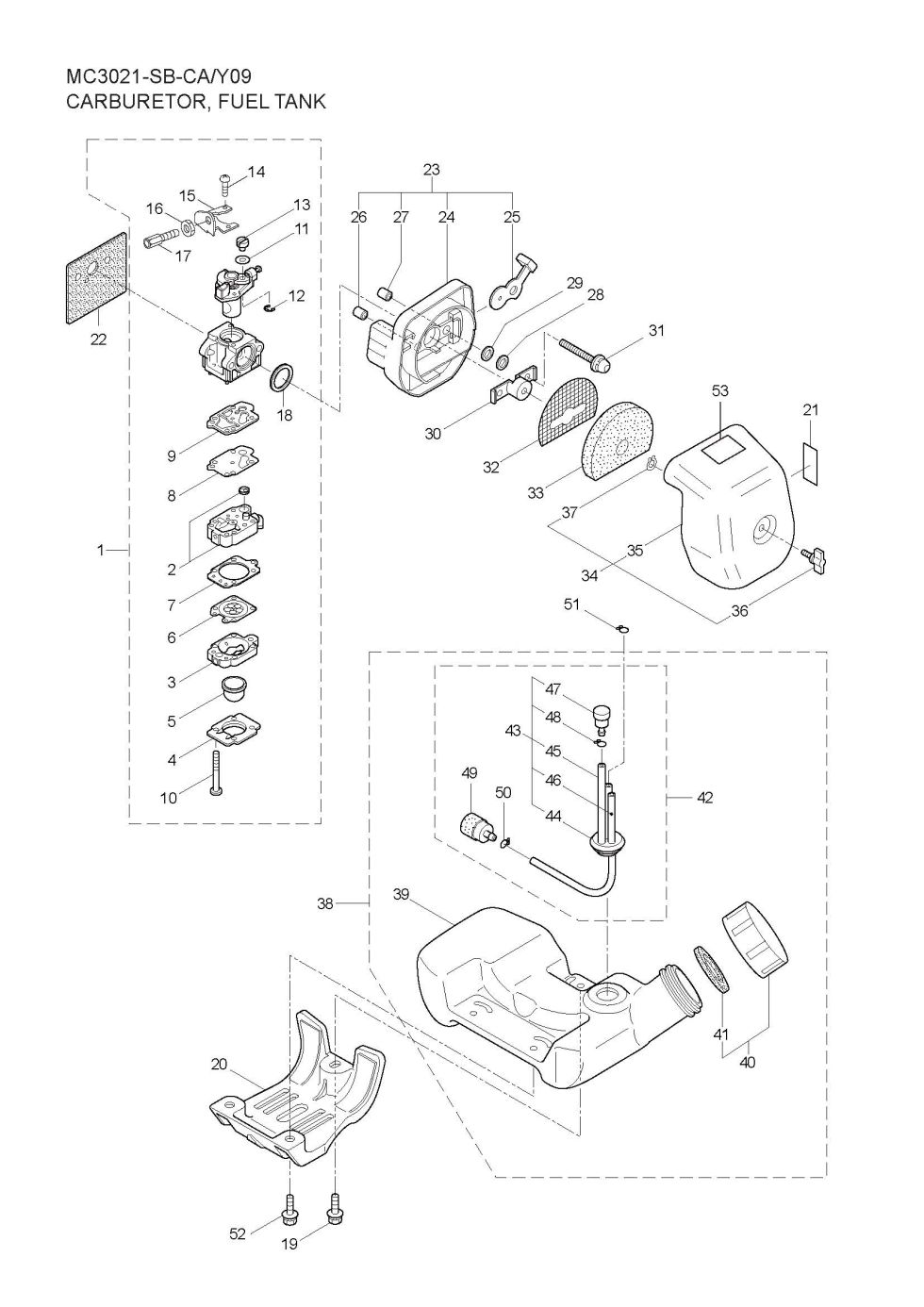

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MC3021-SB-CA. You have selected the Carburetor, Fuel Tank diagram for the Maruyama MC3021-SB-CA Multicutters. Below you will find an interactive part diagram for the MC3021-SB-CA Carburetor, Fuel Tank. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MC3021-SB-CA parts not shown in this diagram you may select from one of the other MC3021-SB-CA part assemblies or select a different Multicutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Multicutters parts.

Position number SKU Product title Price
1 282542 282542 - CARBURETOR
$156.99
2 264155 264155 - PUMP BODY
$80.99
3 262991 262991 - PURGE BODY
$23.99
4 262992 262992 - COVER PLATE
$11.99
5 261874 261874 - PRIMER
$19.99
6 283905 283905 - METERRING DIAPHRAGM
$15.99
7 262993 262993 - GASKET
$10.99
8 262994 262994 - DIAPHRAGM FUEL PUMP
$18.99
9 282576 282576 - GASKET
$8.99
10 262996 262996 - SCREW
$2.99
12 261876 261876 - E-RING
$2.99
13 261658 261658 - SWIVEL
$5.99
14 261875 261875 - SCREW
$2.99
15 264677 264677 - BRACKET
$20.99
16 261878 261878 - NUT
$2.99
17 263994 263994 - ADJUSTER
$16.99
18 261657 261657 - PACKING
$10.99
19 281715 281715 - CAP SCREW
$2.99
20 281441 281441 - STAND
$9.99
21 261352 261352 - DECAL
$2.99
22 269762 269762 - GASKET
$2.99
23 268055 268055 - AIR FILTER CASE ASSY
$19.99
24 268056 268056 - AIR FILTER CASE
$12.99
25 268057 268057 - VALVE
$11.99
26 268157 268157 - SLEEVE
$2.99
27 268412 268412 - SLEEVE
$2.99
28 263345 263345 - PACKING
$2.99
29 263942 263942 - WASHER
$2.99
30 263815 263815 - STAY
$8.99
31 264016 264016 - CAP SCREW M5X60
$2.99
32 265026 265026 - SCREEN
$2.99
33 265027 265027 - FOAM ELEMENT
$5.99
34 268058 268058 - AIR FILTER COVER ASS
$24.99
35 268059 268059 - AIR FILTER COVER
$12.99
36 281438 281438 - KNOB
$7.99
37 261734 261734 - SNAP RING
$2.99
39 284820 284820 - FUEL TANK
$29.99
40 281565 281565 - FUEL CAP ASSY (obsolete)
use part #275306
$8.99
41 269377 269377 - GASKET (obsolete)
use part #287058
$10.99
42 282538 282538 - FUEL PICK UP ASSY (obsolete)
use part #268062
$32.99
43 282539 282539 - FUEL PIPE ASSY
$34.99
44 268065 268065 - GROMMET
$8.99
45 282541 282541 - NLA RETURN PIPE
$9.99
46 261690 261690 - FUEL PIPE (obsolete)
use part #262649
$2.99
47 261590 261590 - BREATHER SUB ASSY
$12.99
48 261117 261117 - CLIP
$2.99
52 281714 281714 - SCREW
$2.99
53 285188 285188 - LABEL
$2.99
