Engine

Engine

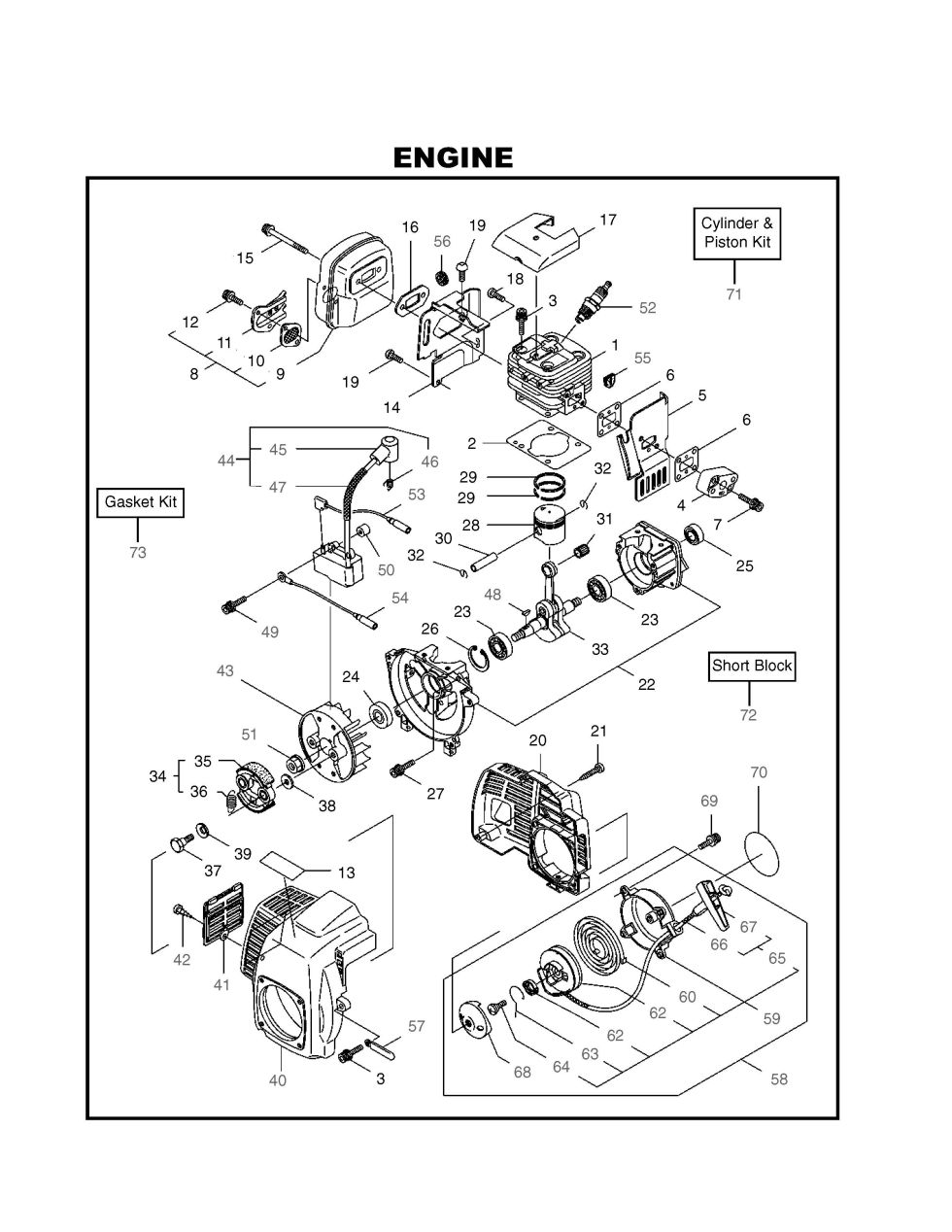

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MC3020SB. You have selected the Engine diagram for the Maruyama MC3020SB Multicutters. Below you will find an interactive part diagram for the MC3020SB Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MC3020SB parts not shown in this diagram you may select from one of the other MC3020SB part assemblies or select a different Multicutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Multicutters parts.

Position number SKU Product title Price
1 268687 268687 - NLA CYLINDER KIT (CH
$175.99
2 268231 268231 - GASKET
$2.99
3 261250 261250 - BOLT M5X20
$2.99
4 266317 266317 - INSULATOR
$28.99
5 268233 268233 - AIR DUCT
$36.99
6 261171 261171 - GASKET
$2.99
7 268563 268563 - CAP SCREW
$2.99
8 268996 268996 - MUFFLER ASSY.
$36.99
9 269651 269651 - MUFFLER
$28.99
10 267056 267056 - SPARK ARRESTER
$7.99
11 267053 267053 - TAIL
$7.99
12 265107 265107 - BOLT
$2.99
13 280288 280288 - NLA LABEL
$2.99
14 268235 268235 - PLATE
$19.99
15 266402 266402 - CAP SCREW
$5.99
16 268019 268019 - GASKET
$5.99
17 268468 268468 - PROTECTOR
$7.99
19 268195 268195 - USE: 285189
$2.99
20 268238 268238 - CYLINDER COVER
$24.99
21 266000 266000 - TAPPING SCREW
$2.99
22 268241 268241 - CRANKCASE
$50.99
23 261491 261491 - BEARING
$21.99
24 262198 262198 - NLA OIL SEAL
$5.99
25 261386 261386 - OIL SEAL
$2.99
26 055185 055185 - SNAP RING
$2.99
27 261612 261612 - BOLT
$2.99
28 268782 268782 - USE: 283380
$37.99
29 265067 265067 - PISTON RING
$13.99
30 265068 265068 - PISTON PIN
$8.99
31 265225 265225 - NEEDLE BEARING
$23.99
32 261393 261393 - PISTON PIN CLIP
$2.99
33 265141 265141 - CRANKSHAFT/CONNECTIN
$92.99
34 268439 268439 - CLUTCH ASSY
$37.99
35 267342 267342 - CLUTCH SHOE
$23.99
36 267345 267345 - CLUTCH SPRING
$10.99
37 264505 264505 - CLUTCH BOLT
$5.99
38 261189 261189 - WASHER
$2.99
39 261777 261777 - WAVE WASHER
$2.99
40 268263 268263 - FAN COVER
$29.99
41 268389 268389 - COVER
$11.99
42 268390 268390 - SCREW
$2.99
43 269656 269656 - NLA ROTOR FAN (obsolete)
use part #269807
$30.99
44 269713 269713 - IGNITION COIL ASSY.
$82.99
45 269714 269714 - PLUG BOOT
$2.99
46 269715 269715 - CONNECTOR
$2.99
47 269716 269716 - INSULATOR
$2.99
48 261076 261076 - WOODRUFF KEY
$2.99
49 261417 261417 - ROTOR NUT
$8.99
50 268380 268380 - USE: 280381
$2.99
51 261256 261256 - BOLT M4X25
$2.99
52 261200 261200 - SPARK PLUG
$20.99
53 269722 269722 - LEAD
$6.99
54 268044 268044 - LEAD
$5.99
55 261202 261202 - GROMMET
$2.99
56 268036 268036 - GROMMET
$2.99
57 264588 264588 - CLAMP
$2.99
58 268161 268161 - RECOIL STARTER ASSY
$30.99
59 268163 268163 - RECOIL ASSY
$28.99
60 267214 267214 - SPIRAL SPRING
$15.99
62 267215 267215 - COLLAR
$2.99
63 267216 267216 - SWING ARM
$2.99
64 267213 267213 - SCREW
$2.99
65 268202 268202 - ROPE ASSY
$9.99
66 268201 268201 - STARTER ROPE
$2.99
67 267219 267219 - STARTER GRIP
$2.99
68 267098 267098 - STARTER PULLEY
$2.99
69 265726 265726 - SCREW
$2.99
70 280135 280135 - LABEL
$2.99
71 280531 280531 - NLA CYLINDER & PISTO
$201.99
72 850768 850768 - NLA SHORT BLOCK (CE3
$210.99
73 636697 636697 - GASKET KIT(CE ENGINE
$17.99
