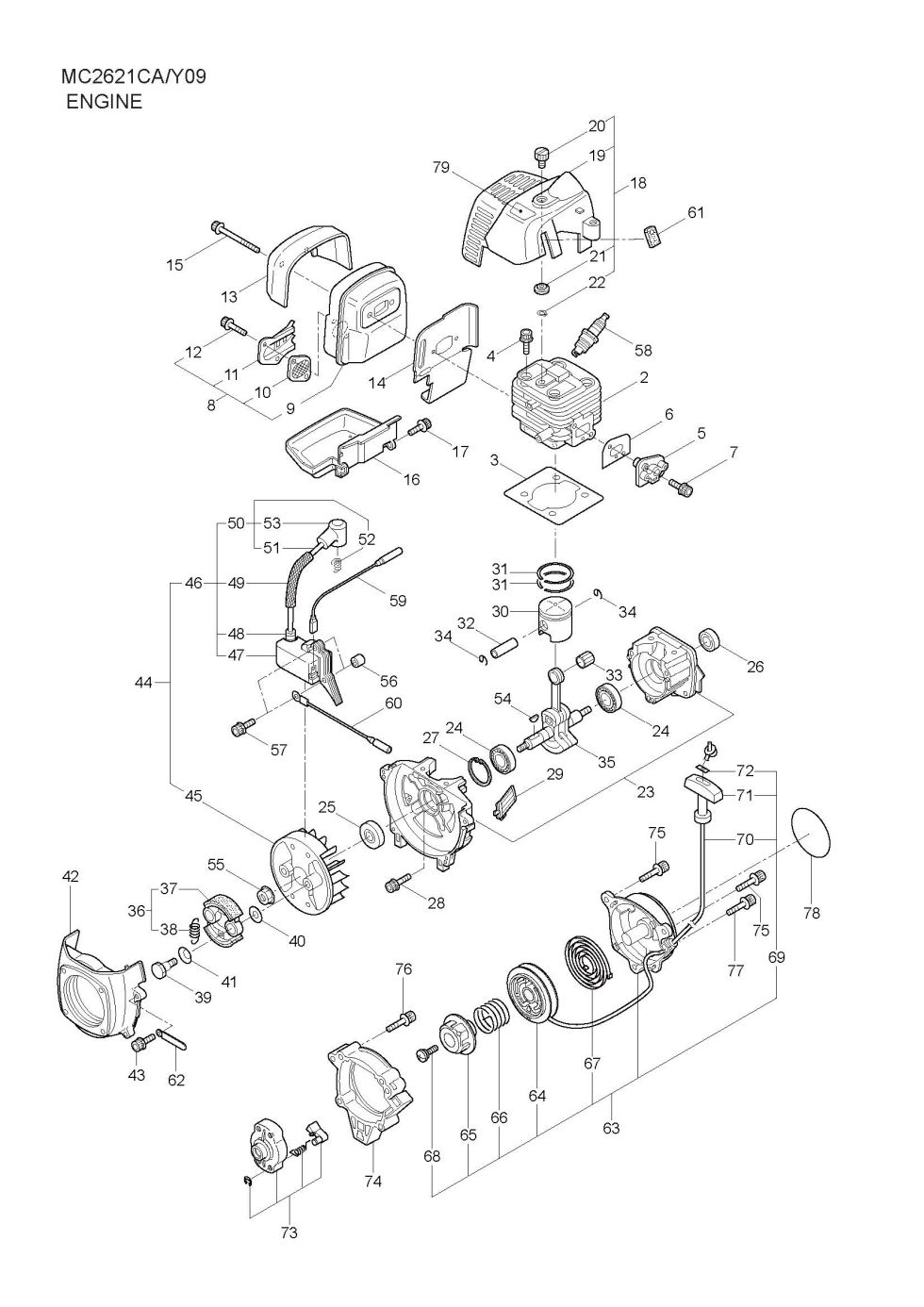

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MC2621CA. You have selected the Engine diagram for the Maruyama MC2621CA Multicutters. Below you will find an interactive part diagram for the MC2621CA Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MC2621CA parts not shown in this diagram you may select from one of the other MC2621CA part assemblies or select a different Multicutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Multicutters parts.

Position number SKU Product title Price
2 283734 283734 - CYLINDER
$89.99
4 261250 261250 - BOLT M5X20
$2.99
5 269144 269144 - INSULATOR
$22.99
6 267049 267049 - GASKET
$2.99
7 265924 265924 - CAP SCREW 5X25
$2.99
8 282208 282208 - MUFFLER ASSY.
$97.99
9 282209 282209 - MUFFLER
$114.99
10 267056 267056 - SPARK ARRESTER
$7.99
11 268171 268171 - MUFFLER TAIL
$11.99
12 265107 265107 - BOLT
$2.99
13 284071 284071 - HOLDER
$15.99
14 283940 283940 - GASKET
$7.99
15 266402 266402 - CAP SCREW
$5.99
16 281435 281435 - UNDER COVER
$5.99
17 267191 267191 - CAP SCREW
$2.99
18 281742 281742 - TOP COVER ASSY
$23.99
19 281434 281434 - TOP COVER
$21.99
20 261018 261018 - KNOB
$7.99
21 261020 261020 - SPACER
$2.99
22 261734 261734 - SNAP RING
$2.99
23 268241 268241 - CRANKCASE
$50.99
24 261491 261491 - BEARING
$21.99
25 261492 261492 - OIL SEAL
$2.99
26 261386 261386 - OIL SEAL
$2.99
27 055185 055185 - SNAP RING
$2.99
28 261612 261612 - BOLT
$2.99
29 281442 281442 - SCREEN
$2.99
30 268247 268247 - USE: 272809
$34.99
31 261496 261496 - PISTON RING
$13.99
32 261497 261497 - PISTON PIN
$17.99
33 261037 261037 - NEEDLE BEARING
$15.99
34 261576 261576 - CIRCLIP
$2.99
35 265197 265197 - CRANKSHAFT CPL.
$149.99
37 267342 267342 - CLUTCH SHOE
$23.99
38 267345 267345 - CLUTCH SPRING
$10.99
39 264505 264505 - CLUTCH BOLT
$5.99
40 261189 261189 - WASHER
$2.99
41 261777 261777 - WAVE WASHER
$2.99
42 281433 281433 - FAN COVER
$25.99
44 283729 283729 - MAGNETO ASSEMBLY
$89.99
45 268253 268253 - ROTOR FAN
$53.99
46 283705 283705 - IGNITION COIL ASSY
$44.99
47 283730 283730 - COIL
$36.99
48 261072 261072 - CAP
$2.99
49 283731 283731 - TUBE
$2.99
50 283732 283732 - SPARK PLUG WIRE ASSY
$22.99
51 283733 283733 - SPARK PLUG WIRE
$2.99
52 261075 261075 - CONNECTOR
$2.99
53 261074 261074 - PLUG CAP
$13.99
54 261076 261076 - WOODRUFF KEY
$2.99
55 261417 261417 - ROTOR NUT
$8.99
56 280381 280381 - SPACER
$2.99
57 261256 261256 - BOLT M4X25
$2.99
58 261200 261200 - SPARK PLUG
$20.99
59 261772 261772 - LEAD
$2.99
60 268044 268044 - LEAD
$5.99
61 269189 269189 - GROMMET
$2.99
62 264588 264588 - CLAMP
$2.99
63 283477 283477 - RECOIL ASSEMBLY
$33.99
64 283504 283504 - REEL
$11.99
65 283505 283505 - CAM PLATE
$5.99
66 283506 283506 - SPRING
$9.99
67 280931 280931 - USE: 261721
$14.99
68 267213 267213 - SCREW
$2.99
69 283578 283578 - STARTER ROPE ASSY
$20.99
70 283579 283579 - STARTER ROPE
$2.99
71 261725 261725 - STARTER GRIP
$9.99
72 283511 283511 - ROPE STOPPER
$2.99
73 283575 283575 - STARTER PAWL ASSEMBL
$13.99
74 284698 284698 - ADAPTER ASSEMBLY
$10.99
75 283391 283391 - SCREW
$2.99
76 265726 265726 - SCREW
$2.99
77 282096 282096 - SCREW
$2.99
78 283944 283944 - LABEL
$2.99
79 282558 282558 - LABEL
$2.99
