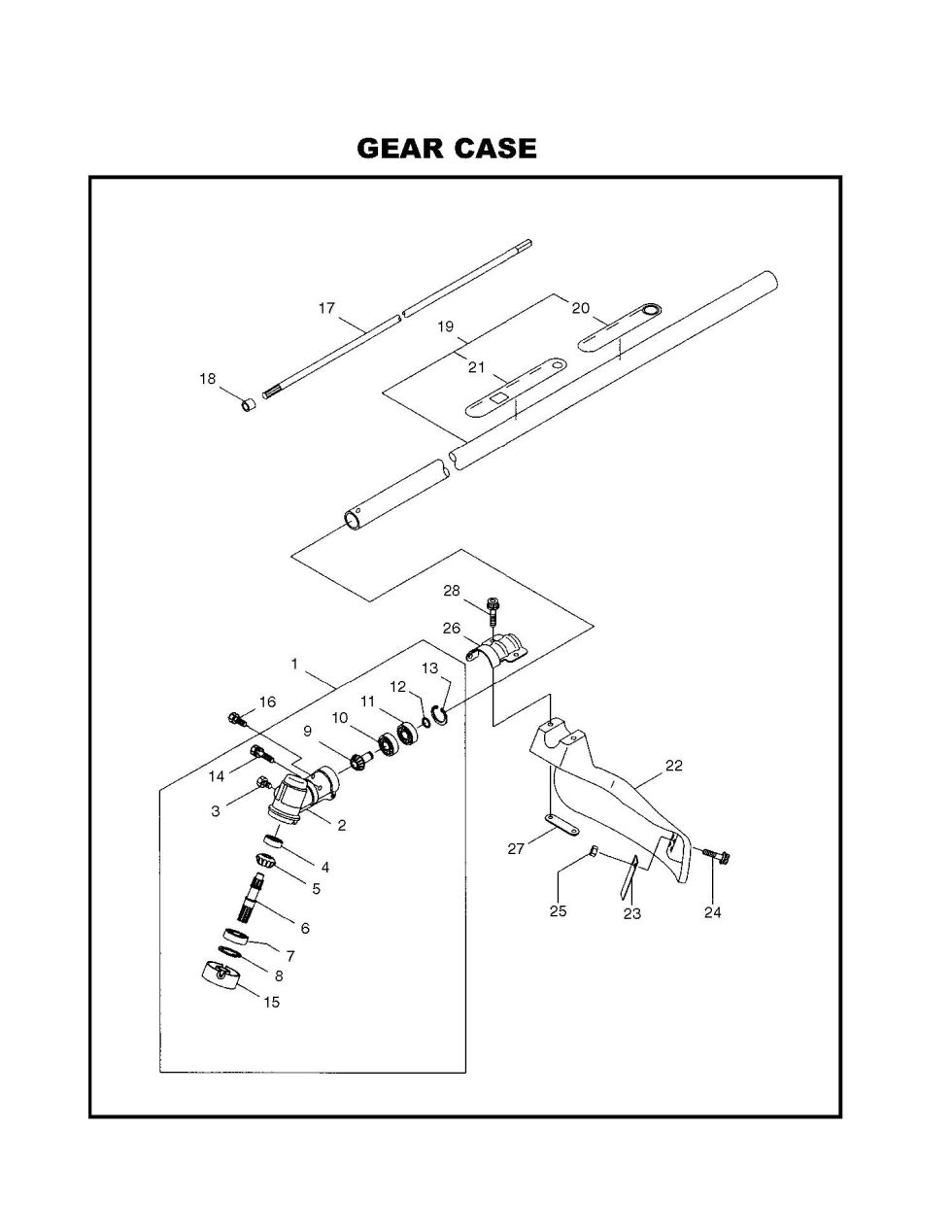

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MC23SB. You have selected the Gearcase diagram for the Maruyama MC23SB Multicutters. Below you will find an interactive part diagram for the MC23SB Gearcase. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MC23SB parts not shown in this diagram you may select from one of the other MC23SB part assemblies or select a different Multicutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Multicutters parts.

Position number SKU Product title Price
1 226418 226418 - GEARCASE ASSY.
$156.99
2 225960 225960 - GEARCASE
$37.99
3 089884 089884 - BOLT(M8X10)
$2.99
4 210554 210554 - BEARING
$9.99
5 225806 225806 - USE: 227106
$23.99
6 215762 215762 - BLADE SHAFT
$46.99
7 212999 212999 - BEARING
$21.99
8 055185 055185 - SNAP RING
$2.99
9 225808 225808 - USE: 227106
$24.99
10 210560 210560 - BEARING
$10.99
11 217042 217042 - USE: 140268
$19.99
12 140269 140269 - USE: 228477
$2.99
13 140270 140270 - SNAP RING
$2.99
14 092561 092561 - BOLT
$2.99
15 222890 222890 - BOSS ADAPTER
$12.99
17 216090 216090 - DRIVESHAFT
$37.99
18 216079 216079 - STOPPER
$8.99
19 220086 220086 - DRIVESHAFT TUBE ASSY
$72.99
20 221501 221501 - LABEL
$9.99
21 221502 221502 - LABEL
$14.99
22 225961 225961 - SAFETY COVER
$27.99
23 222900 222900 - NLA STRING CUTTER
$8.99
24 092548 092548 - BOLT M5X15
$2.99
25 081027 081027 - NUT M5
$2.99
26 225962 225962 - BRACKET
$7.99
27 225963 225963 - THREADED BRACKET
$2.99
28 096042 096042 - BOLT (M5X30)
$2.99
