Engine

Engine

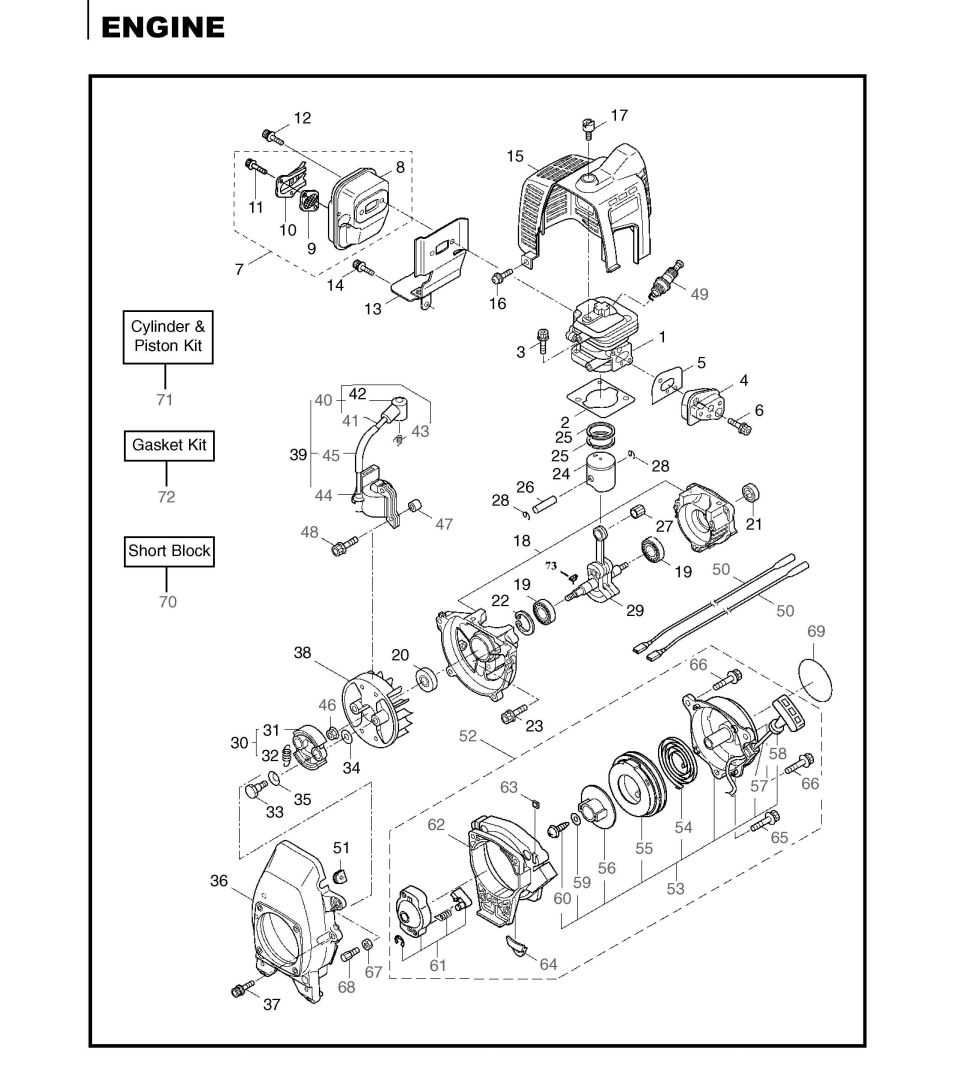

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MC23SB. You have selected the Engine diagram for the Maruyama MC23SB Multicutters. Below you will find an interactive part diagram for the MC23SB Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MC23SB parts not shown in this diagram you may select from one of the other MC23SB part assemblies or select a different Multicutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Multicutters parts.

Position number SKU Product title Price
1 266249 266249 - CYLINDER
$114.99
2 267178 267178 - NLA GASKET (obsolete)
use part #283420
$2.99
3 267290 267290 - CAP SCREW
$2.99
4 265802 265802 - INSULATOR
$27.99
5 267049 267049 - GASKET
$2.99
6 265924 265924 - CAP SCREW 5X25
$2.99
7 267051 267051 - MUFFLER ASSEMBLY
$27.99
8 267052 267052 - MUFFLER COMP
$22.99
9 267056 267056 - SPARK ARRESTER
$7.99
10 267053 267053 - TAIL
$7.99
11 265107 265107 - BOLT
$2.99
12 266264 266264 - CAP SCREW
$2.99
13 267189 267189 - GASKET
$16.99
14 261607 261607 - BOLT M5X16
$2.99
15 267060 267060 - TOP COVER ASSY
$21.99
16 267177 267177 - SCREW
$2.99
17 265742 265742 - USE: 286399
$5.99
18 267063 267063 - CRANKCASE
$49.99
19 261491 261491 - BEARING
$21.99
20 262198 262198 - NLA OIL SEAL
$5.99
21 261386 261386 - OIL SEAL
$2.99
22 055185 055185 - SNAP RING
$2.99
23 261612 261612 - BOLT
$2.99
24 266467 266467 - USE: 281300
$31.99
25 264891 264891 - PISTON RING
$14.99
26 261036 261036 - PISTON PIN
$16.99
27 263957 263957 - BEARING NEEDLE
$21.99
28 261576 261576 - CIRCLIP
$2.99
29 267193 267193 - CRANKSHAFT COMP
$74.99
30 268439 268439 - CLUTCH ASSY
$37.99
31 264026 264026 - CLUTCH SHOE
$23.99
32 264028 264028 - SPRING CLUTCH
$7.99
33 264505 264505 - CLUTCH BOLT
$5.99
34 261189 261189 - WASHER
$2.99
35 261777 261777 - WAVE WASHER
$2.99
36 267080 267080 - FAN COVER - RED
$34.99
37 261250 261250 - BOLT M5X20
$2.99
38 269806 269806 - FLYWHEEL
$25.99
39 280268 280268 - NLA IGNITION COI (obsolete)
use part #261301
$108.99
40 280740 280740 - SPARK PLUG WIRE ASSY
$20.99
41 280741 280741 - SPARK PLUG WIRE
$2.99
42 261074 261074 - PLUG CAP
$13.99
43 261075 261075 - CONNECTOR
$2.99
44 261072 261072 - CAP
$2.99
45 280742 280742 - INSULATOR
$2.99
46 261417 261417 - ROTOR NUT
$8.99
47 280394 280394 - SPACER
$2.99
48 261256 261256 - BOLT M4X25
$2.99
49 261200 261200 - SPARK PLUG
$20.99
50 261772 261772 - LEAD
$2.99
51 261202 261202 - GROMMET
$2.99
52 269276 269276 - NLA RECOIL STARTER A
$107.99
53 280283 280283 - RECOIL ASSEMBLY
$67.99
54 269495 269495 - RECOIL SPRING
$24.99
55 280113 280113 - SPRING CASE ASSY
$78.99
56 280110 280110 - PULLEY
$21.99
57 269499 269499 - ROPE
$21.99
58 269500 269500 - STARTER GRIP
$26.99
59 269501 269501 - WASHER
$2.99
60 269502 269502 - 269502G SCREW
$2.99
61 269492 269492 - STARTER PAWL ASSEMBL
$21.99
63 280008 280008 - NUT
$2.99
64 269208 269208 - NUT
$2.99
65 265726 265726 - SCREW
$2.99
66 269273 269273 - CAP SCREW
$2.99
67 261878 261878 - NUT
$2.99
68 265409 265409 - ADAPTER
$2.99
69 280800 280800 - NLA LABEL
$5.99
71 644532 644532 - GASKET KIT(BE230)
$7.99
72 644533 644533 - CYLINDER & PISTON KI
$111.99
73 261076 261076 - WOODRUFF KEY
$2.99
