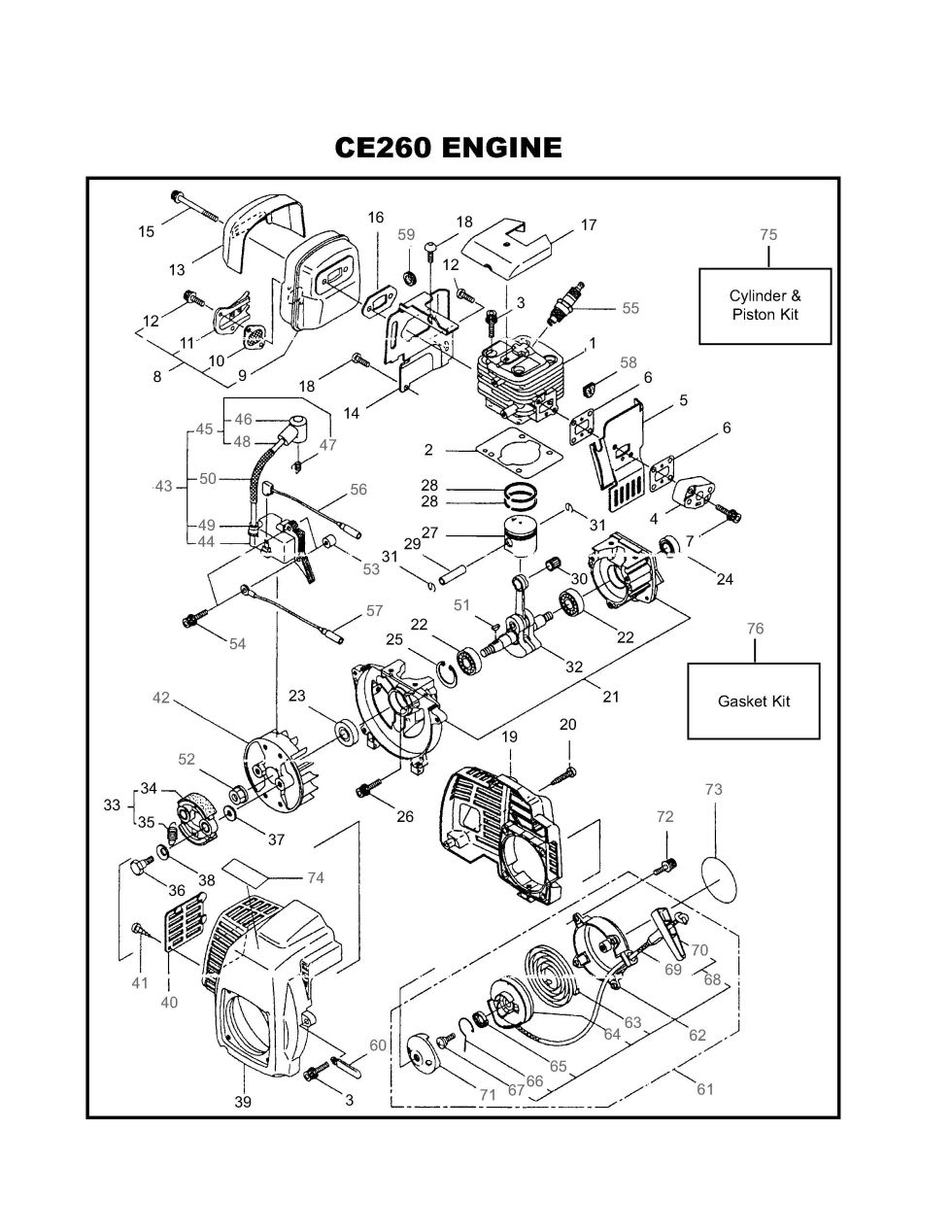

CE260 Engine

CE260 Engine

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MC2320,MC2620. You have selected the CE260 Engine diagram for the Maruyama MC2320,MC2620 Multicutters. Below you will find an interactive part diagram for the MC2320,MC2620 CE260 Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MC2320,MC2620 parts not shown in this diagram you may select from one of the other MC2320,MC2620 part assemblies or select a different Multicutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Multicutters parts.

Position number SKU Product title Price
1 268229 268229 - CYLINDER
$120.99
2 268231 268231 - GASKET
$2.99
3 261250 261250 - BOLT M5X20
$2.99
4 266317 266317 - INSULATOR
$28.99
5 268233 268233 - AIR DUCT
$36.99
6 261171 261171 - GASKET
$2.99
7 265924 265924 - CAP SCREW 5X25
$2.99
8 268016 268016 - MUFFLER ASSY
$99.99
9 268017 268017 - MUFFLER
$73.99
10 267056 267056 - SPARK ARRESTER
$7.99
11 268171 268171 - MUFFLER TAIL
$11.99
12 265107 265107 - BOLT
$2.99
13 268461 268461 - HOLDER
$7.99
14 268235 268235 - PLATE
$19.99
15 266402 266402 - CAP SCREW
$5.99
16 268019 268019 - GASKET
$5.99
17 268468 268468 - PROTECTOR
$7.99
18 268195 268195 - USE: 285189
$2.99
19 268238 268238 - CYLINDER COVER
$24.99
20 268051 268051 - NLA SCREW
$2.99
21 268241 268241 - CRANKCASE
$50.99
22 261491 261491 - BEARING
$21.99
23 261492 261492 - OIL SEAL
$2.99
24 261386 261386 - OIL SEAL
$2.99
25 055185 055185 - SNAP RING
$2.99
26 261612 261612 - BOLT
$2.99
27 268247 268247 - USE: 272809
$34.99
28 261496 261496 - PISTON RING
$13.99
29 261497 261497 - PISTON PIN
$17.99
30 261037 261037 - NEEDLE BEARING
$15.99
31 261576 261576 - CIRCLIP
$2.99
32 265197 265197 - CRANKSHAFT CPL.
$149.99
33 268439 268439 - CLUTCH ASSY
$37.99
34 267342 267342 - CLUTCH SHOE
$23.99
35 267345 267345 - CLUTCH SPRING
$10.99
36 264505 264505 - CLUTCH BOLT
$5.99
37 261189 261189 - WASHER
$2.99
38 261777 261777 - WAVE WASHER
$2.99
39 268263 268263 - FAN COVER
$29.99
40 268389 268389 - COVER
$11.99
41 268390 268390 - SCREW
$2.99
42 268253 268253 - ROTOR FAN
$53.99
43 268041 268041 - NLA IGNITION COIL AS (obsolete)
use part #287278
$50.99
44 268040 268040 - NLA CAN USE ASSY 287
$65.99
45 268042 268042 - SPARK PLUG WIRE ASSY
$30.99
46 261074 261074 - PLUG CAP
$13.99
47 261075 261075 - CONNECTOR
$2.99
48 268043 268043 - SPARK PLUG WIRE
$2.99
49 261072 261072 - CAP
$2.99
50 267402 267402 - INSULATOR
$2.99
51 261076 261076 - WOODRUFF KEY
$2.99
52 261417 261417 - ROTOR NUT
$8.99
53 268380 268380 - USE: 280381
$2.99
54 261256 261256 - BOLT M4X25
$2.99
55 261200 261200 - SPARK PLUG
$20.99
56 261772 261772 - LEAD
$2.99
57 268044 268044 - LEAD
$5.99
58 261202 261202 - GROMMET
$2.99
59 268036 268036 - GROMMET
$2.99
60 264588 264588 - CLAMP
$2.99
61 268161 268161 - RECOIL STARTER ASSY
$30.99
62 268163 268163 - RECOIL ASSY
$28.99
63 267214 267214 - SPIRAL SPRING
$15.99
64 268050 268050 - PULLEY
$19.99
65 267215 267215 - COLLAR
$2.99
66 267216 267216 - SWING ARM
$2.99
67 267213 267213 - SCREW
$2.99
68 268202 268202 - ROPE ASSY
$9.99
69 268201 268201 - STARTER ROPE
$2.99
70 267219 267219 - STARTER GRIP
$2.99
71 267098 267098 - STARTER PULLEY
$2.99
72 265726 265726 - SCREW
$2.99
73 268473 268473 - LABEL
$5.99
74 268518 268518 - LABEL
$2.99
75 634609 634609 - CYLINDER & PISTON KI
$174.99
76 636697 636697 - GASKET KIT(CE ENGINE
$17.99
