Main Body

Main Body

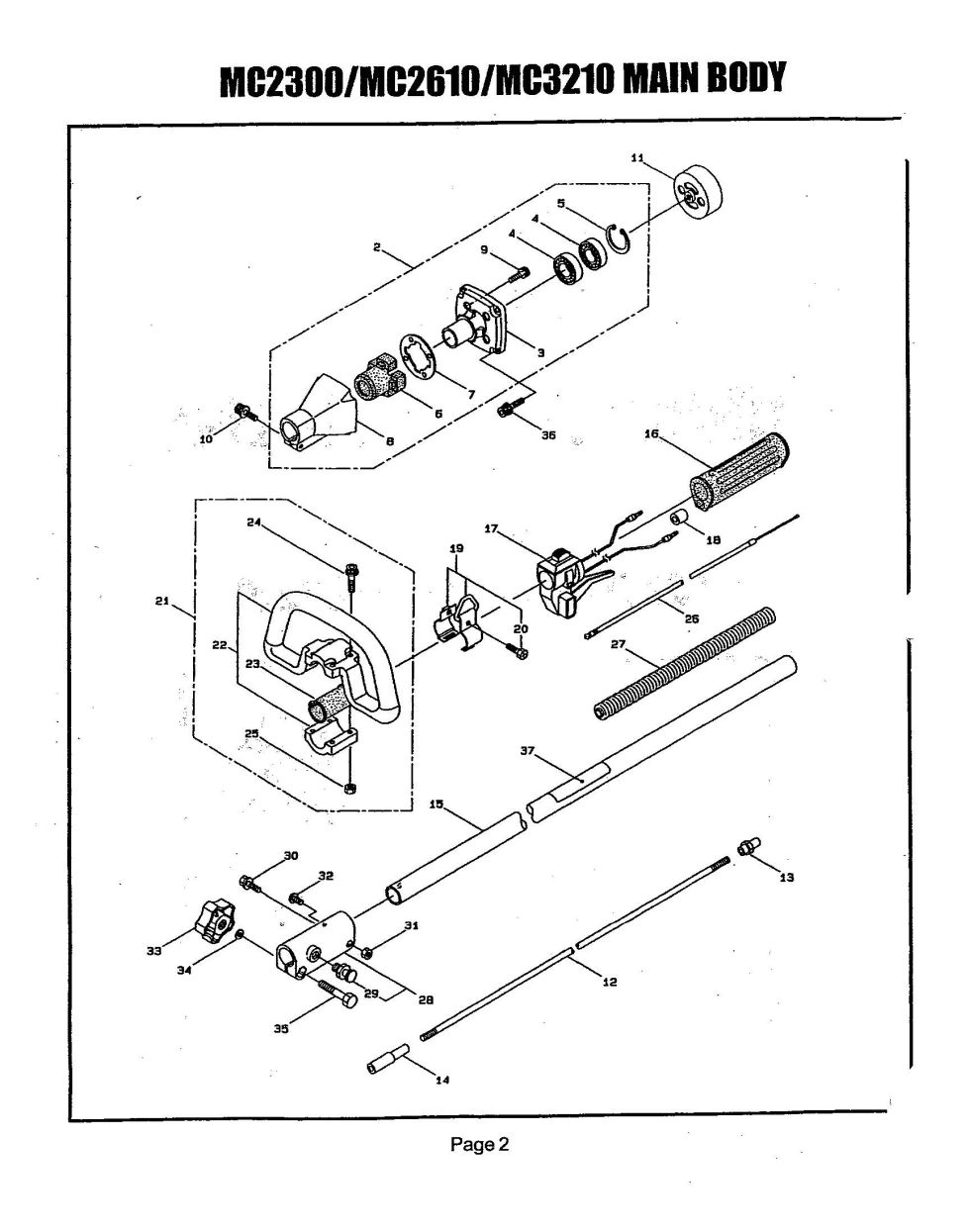

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your MC2300,MC2610,MC3210. You have selected the Main Body diagram for the Maruyama MC2300,MC2610,MC3210 Multicutters. Below you will find an interactive part diagram for the MC2300,MC2610,MC3210 Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the MC2300,MC2610,MC3210 parts not shown in this diagram you may select from one of the other MC2300,MC2610,MC3210 part assemblies or select a different Multicutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Multicutters parts.

Position number SKU Product title Price
2 219469 219469 - CLUTCH CASE ASSY
$136.99
3 218879 218879 - BEARING CASE
$29.99
4 102680 102680 - BEARING
$13.99
5 054676 054676 - SNAP RING
$2.99
6 214162 214162 - BUFFER
$28.99
7 214163 214163 - WASHER
$11.99
8 218880 218880 - DRIVESHAFT TUBE ADAP
$36.99
9 092033 092033 - SCREW(M5X15)
$2.99
10 261246 261246 - CAP SCREW M5X25
$2.99
11 219083 219083 - CLUTCH DRUM
$28.99
12 219084 219084 - DRIVESHAFT
$27.99
13 211464 211464 - UPPER ADAPTER
$19.99
14 215276 215276 - LOWER ADAPTER
$42.99
15 219085 219085 - DRIVESHAFT TUBE
$40.99
16 215532 215532 - SHAFT GRIP
$24.99
17 221783 221783 - THROTTLE TRIGGER (obsolete)
use part #221465
$62.99
18 214083 214083 - OUTER GUIDE
$2.99
19 054691 054691 - HANGING BRACKET ASSY
$13.99
20 089738 089738 - BOLT
$2.99
21 215601 215601 - LOOP HANDLE ASSY
$27.99
22 214982 214982 - HANDLE ASSY
$28.99
23 213171 213171 - PACKING
$8.99
24 215608 215608 - CAP SCREW
$2.99
25 089846 089846 - NUT M5 (obsolete)
use part #081027
$2.99
26 213444 213444 - THROTTLE CABLE
$13.99
27 213548 213548 - PLASTIC TUBE
$2.99
28 219490 219490 - SHAFT COUPLER ASSY
$33.99
29 217171 217171 - PLUNGER ASSY
$19.99
30 215351 215351 - CAP SCREW(M5X25)
$2.99
32 219087 219087 - CAP SCREW
$2.99
33 219088 219088 - CLAMPING KNOB
$27.99
34 550131 550131 - WASHER
$2.99
35 089976 089976 - BOLT
$2.99
37 221772 221772 - USE: 222237
$12.99
