 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |

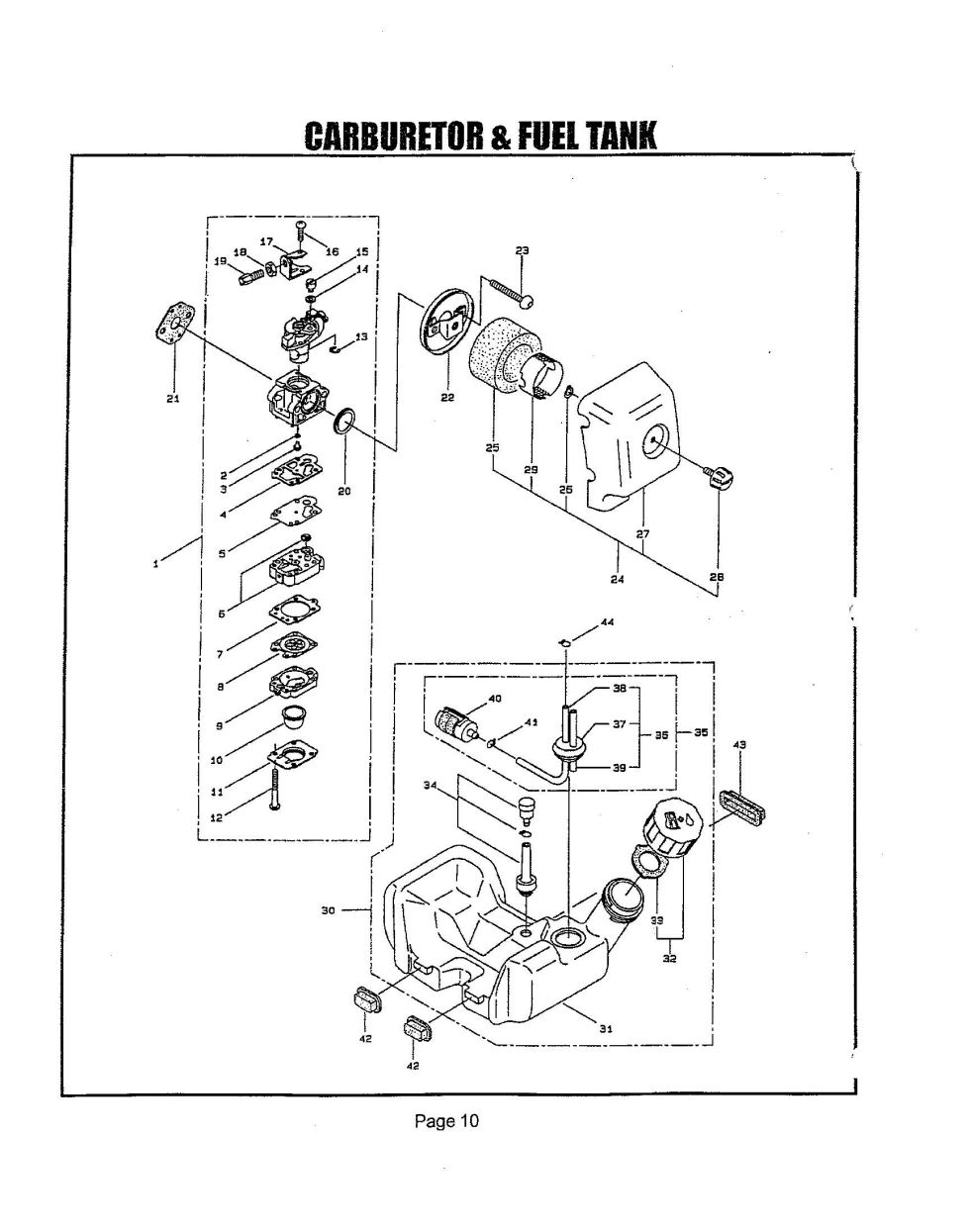

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 (MC2300) | 266598 | 266598 - CARBURETOR ASSY |
$85.99
|
|
| 1 (MC2610) | 265926 | 265926 - CARBURETOR |
$156.99
|
|
| 1 (MC3210) | 265927 | 265927 - CARBURETOR ASSY |
$92.99
|
|
| 2 | 261871 | 261871 - O-RING |
$2.99
|
|
| 3 (MC2300) | 266462 | 266462 - MAIN JET #41.5 |
$17.99
|
|
| 3 (MC2610) | 262120 | 262120 - MAIN JET #40 |
$21.99
|
|
| 3 (MC3210) | 266175 | 266175 - MAIN JET #40.5 |
$9.99
|
|
| 4 | 262995 | 262995 - GASKET |
$13.99
|
|
| 5 | 262994 | 262994 - DIAPHRAGM FUEL PUMP |
$18.99
|
|
| 6 | 263739 | 263739 - PUMP BODY |
$49.99
|
|
| 7 | 262993 | 262993 - GASKET |
$10.99
|
|
| 8 | 261873 | 261873 - DIAPHRAGM ASSY |
$17.99
|
|
| 9 | 262991 | 262991 - PURGE BODY |
$23.99
|
|
| 10 | 261874 | 261874 - PRIMER |
$19.99
|
|
| 11 | 262992 | 262992 - COVER PLATE |
$11.99
|
|
| 12 | 262996 | 262996 - SCREW |
$2.99
|
|
| 13 | 261876 | 261876 - E-RING |
$2.99
|
|
| 14 | 264678 | 264678 - WASHER |
$2.99
|
|
| 15 | 261658 | 261658 - SWIVEL |
$5.99
|
|
| 16 | 261875 | 261875 - SCREW |
$2.99
|
|
| 17 | 264677 | 264677 - BRACKET |
$20.99
|
|
| 18 | 261878 | 261878 - NUT |
$2.99
|
|
| 19 | 263994 | 263994 - ADJUSTER |
$16.99
|
|
| 20 | 261657 | 261657 - PACKING |
$10.99
|
|
| 21 | 261864 | 261864 - GASKET |
$2.99
|
|
| 22 | 261090 | 261090 - AIR FILTER PLATE |
$20.99
|
|
| 23 | 262720 | 262720 - BOLT |
$2.99
|
|
| 24 (2610,3210) | 262447 | 262447 - AIR FILTER ASSY |
$20.99
|
|
| 25 | 261598 | 261598 - ELEMENT |
$7.99
|
|
| 26 | 261734 | 261734 - SNAP RING |
$2.99
|
|
| 27 (2610,3210) | 261813 | 261813 - AIR FILTER ASSY. |
$16.99
|
|
| 27 (MC2300) | 266785 | 266785 - CLEANER CASE |
$23.99
|
|
| 28 (2610,3210) | 261018 | 261018 - KNOB |
$7.99
|
|
| 28 (MC2300) | 263128 | 263128 - USE: 263129 |
$2.99
|
|
| 29 | 261993 | 261993 - SCREEN |
$8.99
|
|
| 30 (MC2300) | 266745 | 266745 - USE: 266128 |
$48.99
|
|
| 30 (MC2610) | 266522 | 266522 - USE: 264749 |
$53.99
|
|
| 31 (MC2300) | 264750 | 264750 - FUEL TANK |
$38.99
|
|
| 31 (MC2610) | 264751 | 264751 - FUEL TANK |
$31.99
|
|
| 31 (MC3210) | 264752 | 264752 - FUEL TANK |
$39.99
|
|
| 32 | 264784 | 264784 - USE: 261584 |
$15.99
|
|
| 33 | 261105 | 261105 - PACKING |
$2.99
|
|
| 34 | 261696 | 261696 - BREATHER ASSY |
$8.99
|
|
| 35 (2610,3210) | 263800 | 263800 - USE: 265752 |
$23.99
|
|
| 35 (MC2300) | 262645 | 262645 - FUEL PIPE ASSY |
$26.99
|
|
| 36a | 262646 | 262646 - FUEL PIPE ASSEMBLY |
$11.99
|
|
| 37 | 261115 |
261115 - USE: 266955 (obsolete) use part #266955 |
$17.99
|
|
| 38 (2610,3210) | 261690 |
261690 - FUEL PIPE (obsolete) use part #262649 |
$2.99
|
|
| 38 (MC2300) | 262649 | 262649 - FUEL PIPE |
$2.99
|
|
| 39 | 263038 | 263038 - RETURN PIPE |
$2.99
|
|
| 40 | 261797 | 261797 - NLA FUEL FILTER ASSY |
$12.99
|
|
| 41 | 261117 | 261117 - CLIP |
$2.99
|
|
| 42 | 261118 | 261118 - PAD |
$2.99
|
|
| 43 | 261119 | 261119 - PAD |
$2.99
|
