Main Body

Main Body

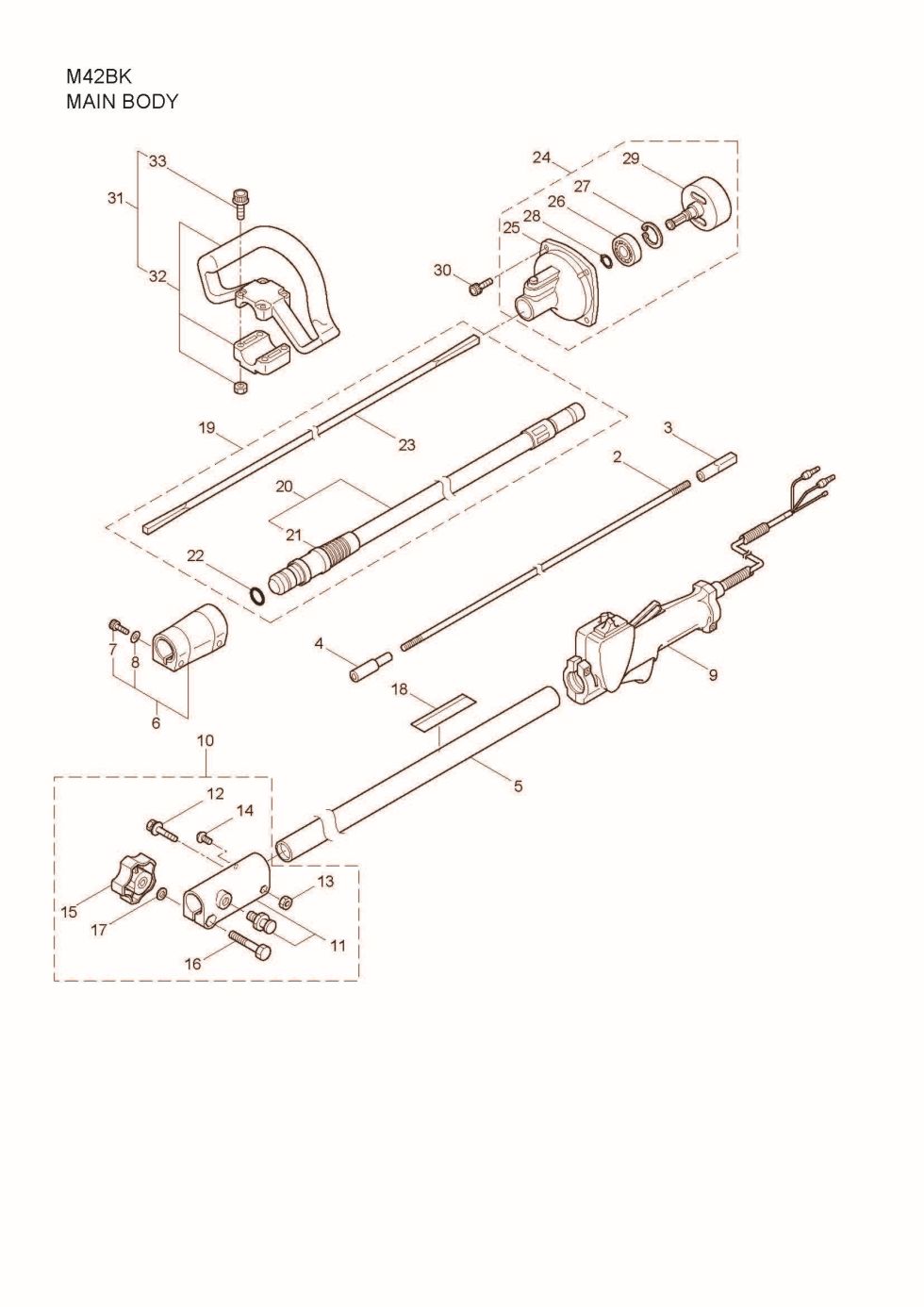

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your M42BK. You have selected the Main Body diagram for the Maruyama M42BK Multicutters. Below you will find an interactive part diagram for the M42BK Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the M42BK parts not shown in this diagram you may select from one of the other M42BK part assemblies or select a different Multicutters altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Multicutters parts.

Position number SKU Product title Price
2 221978 221978 - DRIVESHAFT
$24.99
3 216924 216924 - ADAPTER
$14.99
4 215276 215276 - LOWER ADAPTER
$42.99
5 221979 221979 - DRIVESHAFT TUBE
$41.99
6 214365 214365 - JOINT PIPE ASSY
$32.99
7 087786 087786 - CAP SCREW
$2.99
8 012487 012487 - WASHER
$2.99
9 233221 233221 - THROTTLE TRIGGER
$66.99
10 219489 219489 - SHAFT COUPLER ASSY
$38.99
11 219490 219490 - SHAFT COUPLER ASSY
$33.99
12 215351 215351 - CAP SCREW(M5X25)
$2.99
13 089846 089846 - NUT M5 (obsolete)
use part #081027
$2.99
14 219087 219087 - CAP SCREW
$2.99
15 219088 219088 - CLAMPING KNOB
$27.99
16 089976 089976 - BOLT
$2.99
17 550131 550131 - WASHER
$2.99
18 233222 233222 - LABEL
$12.99
19 223700 223700 - OUTER ASSY
$163.99
20 223701 223701 - OUTER
$220.99
21 215885 215885 - COVER
$22.99
22 011338 011338 - O-RING
$2.99
23 223690 223690 - INNER SHAFT
$39.99
24 222416 222416 - CLUTCH CASE ASSY MD1
$60.99
25 222085 222085 - CLUTCH CASE MD180DX
$27.99
26 222442 222442 - BEARING
$14.99
27 012380 012380 - SNAP RING
$2.99
28 550118 550118 - SNAP RING
$2.99
29 220336 220336 - CLUTCH DRUM 78MM
$34.99
30 219113 219113 - CAP SCREW(M6X20)
$6.99
31 227816 227816 - LOOP HANDLE ASSY
$28.99
32 222139 222139 - USE: 222059
$32.99
33 215608 215608 - CAP SCREW
$2.99
