 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |

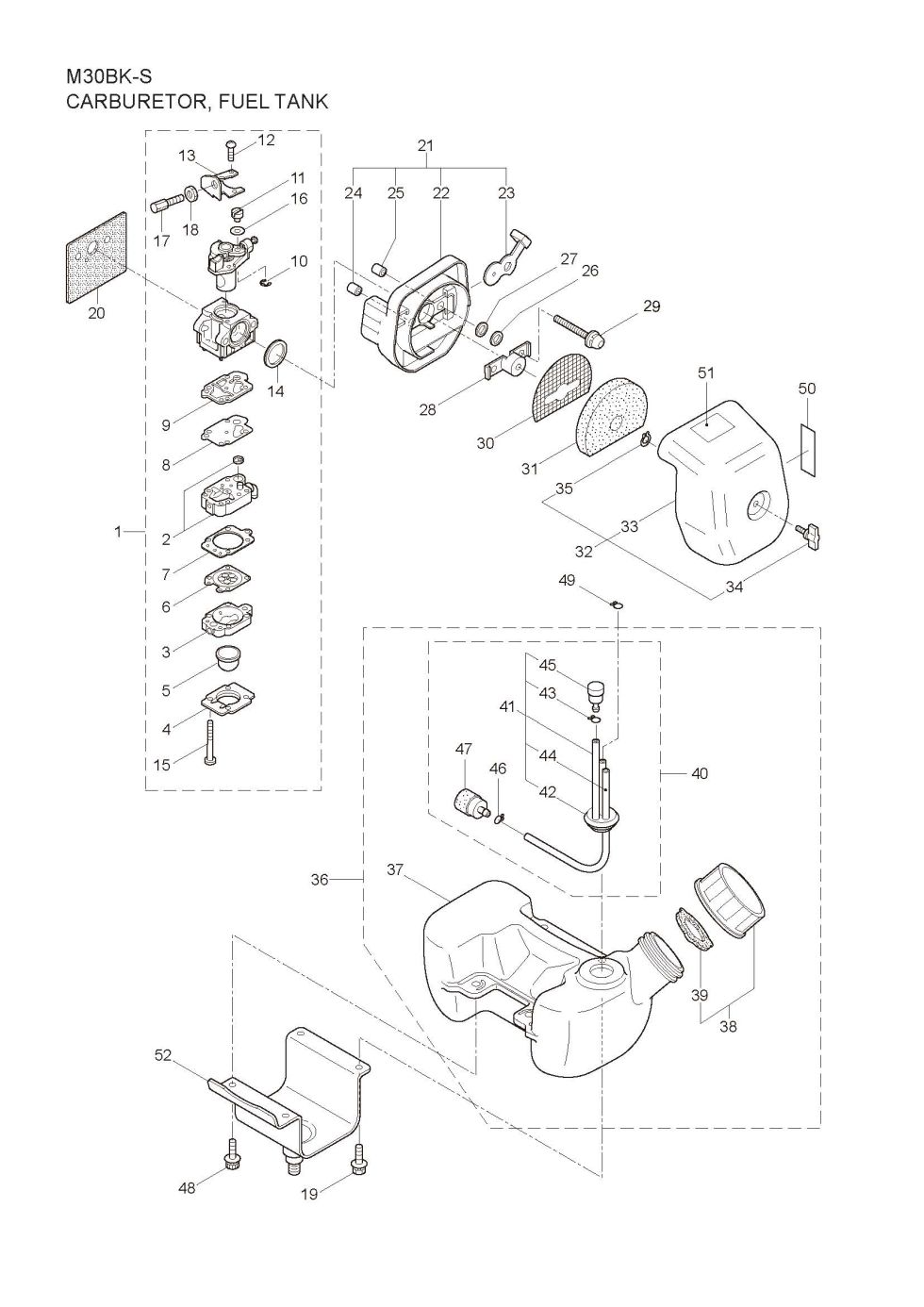

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 282542 | 282542 - CARBURETOR |
$156.99
|
|
| 2 | 264155 | 264155 - PUMP BODY |
$80.99
|
|
| 3 | 262991 | 262991 - PURGE BODY |
$23.99
|
|
| 4 | 262992 | 262992 - COVER PLATE |
$11.99
|
|
| 5 | 261874 | 261874 - PRIMER |
$19.99
|
|
| 6 | 283905 | 283905 - METERRING DIAPHRAGM |
$15.99
|
|
| 7 | 262993 | 262993 - GASKET |
$10.99
|
|
| 8 | 262994 | 262994 - DIAPHRAGM FUEL PUMP |
$18.99
|
|
| 9 | 282576 | 282576 - GASKET |
$8.99
|
|
| 10 | 261876 | 261876 - E-RING |
$2.99
|
|
| 11 | 261658 | 261658 - SWIVEL |
$5.99
|
|
| 12 | 261875 | 261875 - SCREW |
$2.99
|
|
| 13 | 264677 | 264677 - BRACKET |
$20.99
|
|
| 14 | 261657 | 261657 - PACKING |
$10.99
|
|
| 15 | 262996 | 262996 - SCREW |
$2.99
|
|
| 16 | 264678 | 264678 - WASHER |
$2.99
|
|
| 17 | 263994 | 263994 - ADJUSTER |
$16.99
|
|
| 18 | 261878 | 261878 - NUT |
$2.99
|
|
| 19 | 267290 | 267290 - CAP SCREW |
$2.99
|
|
| 20 | 269762 | 269762 - GASKET |
$2.99
|
|
| 21 | 268055 | 268055 - AIR FILTER CASE ASSY |
$19.99
|
|
| 22 | 268056 | 268056 - AIR FILTER CASE |
$12.99
|
|
| 23 | 268057 | 268057 - VALVE |
$11.99
|
|
| 24 | 268157 | 268157 - SLEEVE |
$2.99
|
|
| 25 | 268412 | 268412 - SLEEVE |
$2.99
|
|
| 26 | 263345 | 263345 - PACKING |
$2.99
|
|
| 27 | 263942 | 263942 - WASHER |
$2.99
|
|
| 28 | 263815 | 263815 - STAY |
$8.99
|
|
| 29 | 264016 | 264016 - CAP SCREW M5X60 |
$2.99
|
|
| 30 | 265026 | 265026 - SCREEN |
$2.99
|
|
| 31 | 265027 | 265027 - FOAM ELEMENT |
$5.99
|
|
| 32 | 268058 | 268058 - AIR FILTER COVER ASS |
$24.99
|
|
| 33 | 268059 | 268059 - AIR FILTER COVER |
$12.99
|
|
| 34 | 281438 | 281438 - KNOB |
$7.99
|
|
| 35 | 261734 | 261734 - SNAP RING |
$2.99
|
|
| 36 | 286287 | 286287 - FUEL TANK ASSY |
$65.99
|
|
| 37 | 286288 | 286288 - FUEL TANK |
$31.99
|
|
| 38 | 281565 |
281565 - FUEL CAP ASSY (obsolete) use part #275306 |
$8.99
|
|
| 39 | 269377 |
269377 - GASKET (obsolete) use part #287058 |
$10.99
|
|
| 40 | 282538 |
282538 - FUEL PICK UP ASSY (obsolete) use part #268062 |
$32.99
|
|
| 41 | 282539 | 282539 - FUEL PIPE ASSY |
$34.99
|
|
| 42 | 268065 | 268065 - GROMMET |
$8.99
|
|
| 43 | 261117 | 261117 - CLIP |
$2.99
|
|
| 44 | 261690 |
261690 - FUEL PIPE (obsolete) use part #262649 |
$2.99
|
|
| 45 | 261590 | 261590 - BREATHER SUB ASSY |
$12.99
|
|
| 48 | 261250 | 261250 - BOLT M5X20 |
$2.99
|
|
| 50 | 261352 | 261352 - DECAL |
$2.99
|
|
| 51 | 285188 | 285188 - LABEL |
$2.99
|
|
| 52 | 286098 | 286098 - BRACKET |
$28.99
|
