Main Body

Main Body

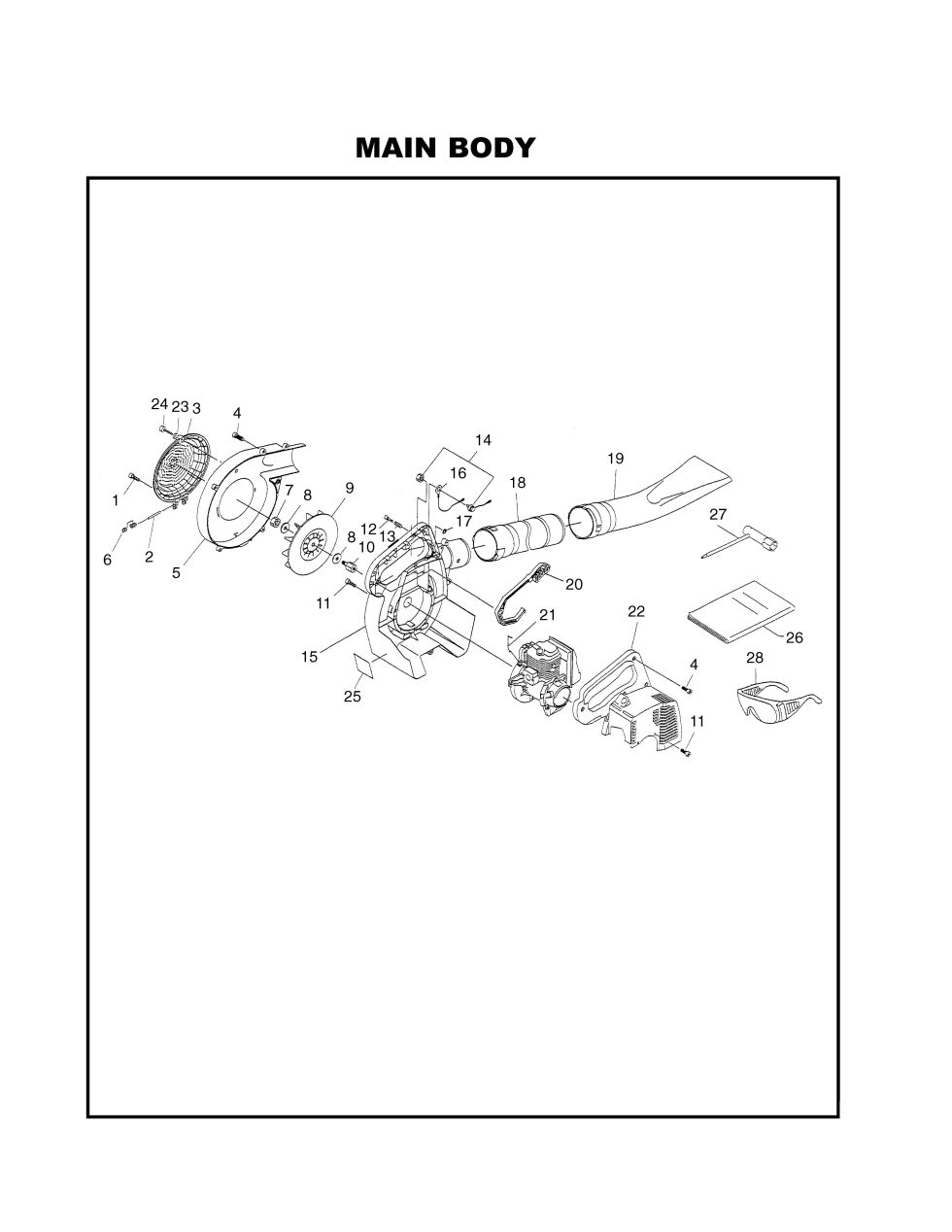

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your M260B. You have selected the Main Body diagram for the Maruyama M260B Big M Equipment. Below you will find an interactive part diagram for the M260B Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the M260B parts not shown in this diagram you may select from one of the other M260B part assemblies or select a different Big M Equipment altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Big M Equipment parts.

Position number SKU Product title Price
1 627447 627447 - BOLT (M5X14)
$2.99
2 627448 627448 - SHAFT
$2.99
3 627449 627449 - FAN GUARD
$24.99
4 627450 627450 - BOLT (PC5X18)
$2.99
5 645475 645475 - CASING
$57.99
6 627452 627452 - SPRING
$5.99
7 627453 627453 - NUT
$2.99
8 627454 627454 - WASHER
$2.99
9 627455 627455 - FAN
$36.99
10 627456 627456 - SHAFT
$28.99
11 627411 627411 - BOLT (M5X20)
$2.99
12 627457 627457 - THROTTLE LEVER
$5.99
13 627458 627458 - THROTTLE SPRING
$2.99
14 627459 627459 - SWITCH ASSY
$47.99
15 645476 645476 - CASING
$99.99
16 627461 627461 - WIRE HARNESS
$21.99
17 627462 627462 - SNAP RING (E-3)
$2.99
18 627463 627463 - STRAIGHT PIPE
$26.99
19 627464 627464 - BLOWER NOZZLE
$33.99
20 627465 627465 - THROTTLE LEVER
$18.99
21 627466 627466 - THROTTLE LEVER
$5.99
22 645477 645477 - COWLING
$35.99
23 627468 627468 - WASHER
$2.99
24 627469 627469 - BOLT (M4X30)
$2.99
25 627471 627471 - DECAL
$5.99
27 119529 119529 - SPANNER WRENCH
$36.99
28 119943 119943 - NLA GOGGLES
$37.99
