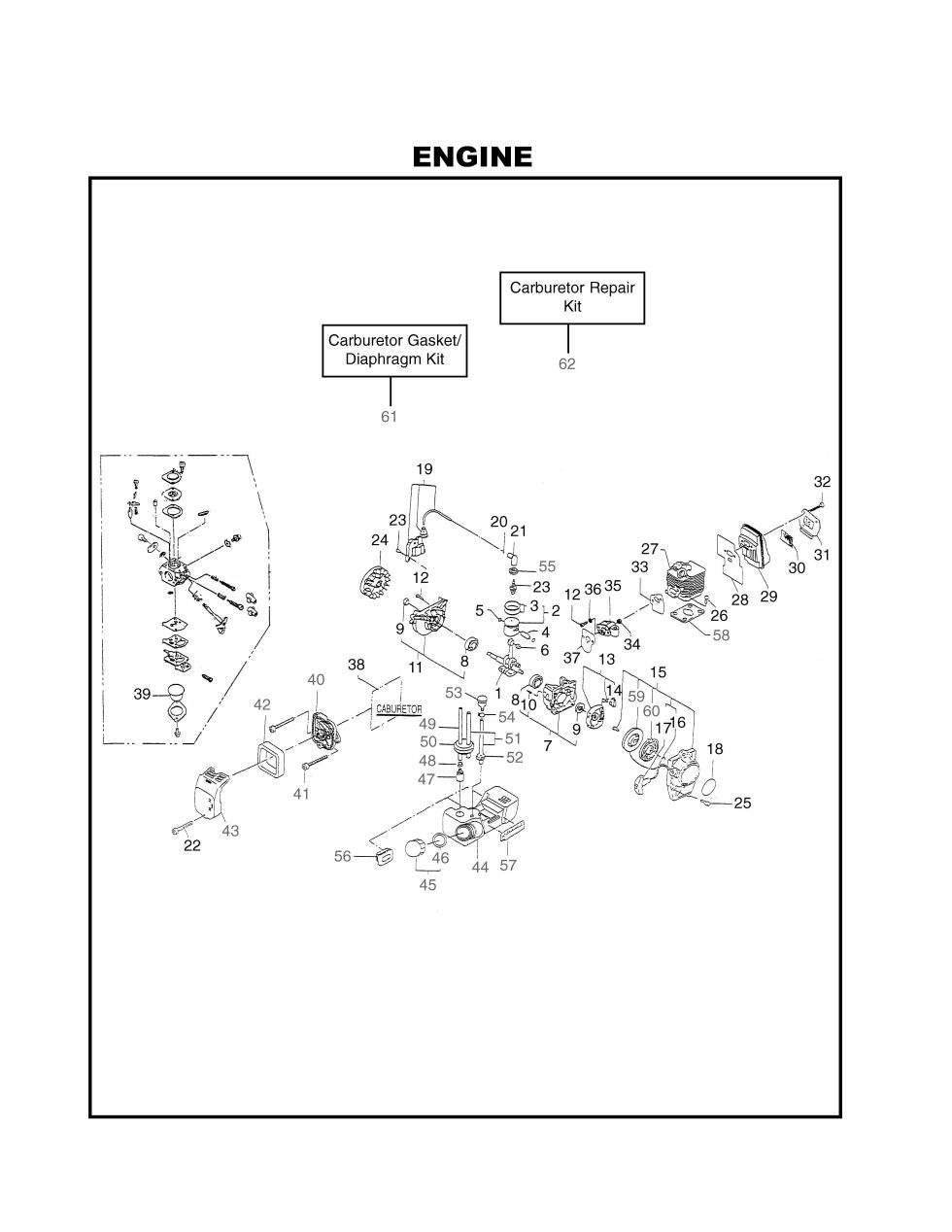

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your M260B. You have selected the Engine diagram for the Maruyama M260B Big M Equipment. Below you will find an interactive part diagram for the M260B Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the M260B parts not shown in this diagram you may select from one of the other M260B part assemblies or select a different Big M Equipment altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Big M Equipment parts.

Position number SKU Product title Price
1 627388 627388 - CRANKSHAFT
$149.99
2 627389 627389 - PISTON ASSY
$57.99
3 627390 627390 - PISTON RING
$17.99
4 627391 627391 - PISTON PIN
$15.99
5 627392 627392 - PISTON PIN CLIP
$2.99
6 627393 627393 - NEEDLE BEARING
$17.99
7 627394 627394 - CRANKCASE ASSY
$57.99
8 627395 627395 - NLA BALL BEARING
$19.99
9 627396 627396 - OIL SEAL
$16.99
10 627397 627397 - DOWEL PIN
$2.99
11 627398 627398 - CRANKCASE ASSY
$83.99
12 119572 119572 - BOLT (M5X25)
$2.99
13 627399 627399 - STARTER PULLEY ASSY
$17.99
14 627400 627400 - RATCHET
$7.99
15 627401 627401 - RECOIL ASSY
$72.99
16 627402 627402 - STARTER ROPE
$22.99
17 627403 627403 - STARTER HANDLE
$23.99
18 645474 645474 - DECAL(MODEL NAME)
$7.99
19 627405 627405 - IGNITION COIL ASSY
$72.99
20 627406 627406 - SPRING
$2.99
21 627407 627407 - SPARKPLUG BOOT
$7.99
22 627408 627408 - BOLT (M4X20)
$2.99
23 627409 627409 - SPARK PLUG BPMR7A
$24.99
24 627410 627410 - FLYWHEEL
$61.99
25 627411 627411 - BOLT (M5X20)
$2.99
26 119548 119548 - BOLT (M5X16)
$2.99
27 627412 627412 - NLA CYLINDER
$151.99
28 627413 627413 - MUFFLER SHIELD
$19.99
29 627414 627414 - MUFFLER
$61.99
30 627415 627415 - SPARK ARRESTER
$8.99
31 627416 627416 - OUTER BAFFLE PLATE
$15.99
32 636575 636575 - BOLT
$2.99
33 627418 627418 - INSULATER GASKET
$6.99
34 627419 627419 - NUT
$2.99
35 627420 627420 - INSULATOR BLOCK
$27.99
36 073363 073363 - WASHER
$2.99
37 627421 627421 - GASKET
$2.99
38 627422 627422 - NLA CARBURETOR ASSY
$80.99
39 627428 627428 - PRIMER BULB
$23.99
40 627429 627429 - AIR FILTER CASE
$23.99
41 627430 627430 - BOLT M5X50
$6.99
42 627431 627431 - AIR FILTER ELEMENT
$8.99
43 627432 627432 - AIR FILTER COVER
$14.99
44 627433 627433 - FUEL TANK
$28.99
45 119180 119180 - FUEL CAP ASSY
$22.99
46 627434 627434 - GASKET
$2.99
47 627435 627435 - FUEL FILTER
$17.99
48 627436 627436 - CLIP
$2.99
49 627437 627437 - FUEL LINE
$10.99
50 627438 627438 - GROMMET
$11.99
51 627439 627439 - FUEL LINE
$12.99
52 627440 627440 - GROMMET
$7.99
53 627441 627441 - BREATHER ASSY
$30.99
54 627442 627442 - CLIP
$2.99
55 627443 627443 - GROMMET
$9.99
56 627444 627444 - PAD
$2.99
57 627445 627445 - PAD
$5.99
58 644917 644917 - GASKET
$22.99
59 631723 631723 - PULLEY
$27.99
60 631722 631722 - RECOIL SPRING
$28.99
61 840650 840650 - GASKET/DIAPHRAGM KIT
$21.99
62 840651 840651 - COMPLETE REPAIR KIT
$23.99
