Gearcase

Gearcase

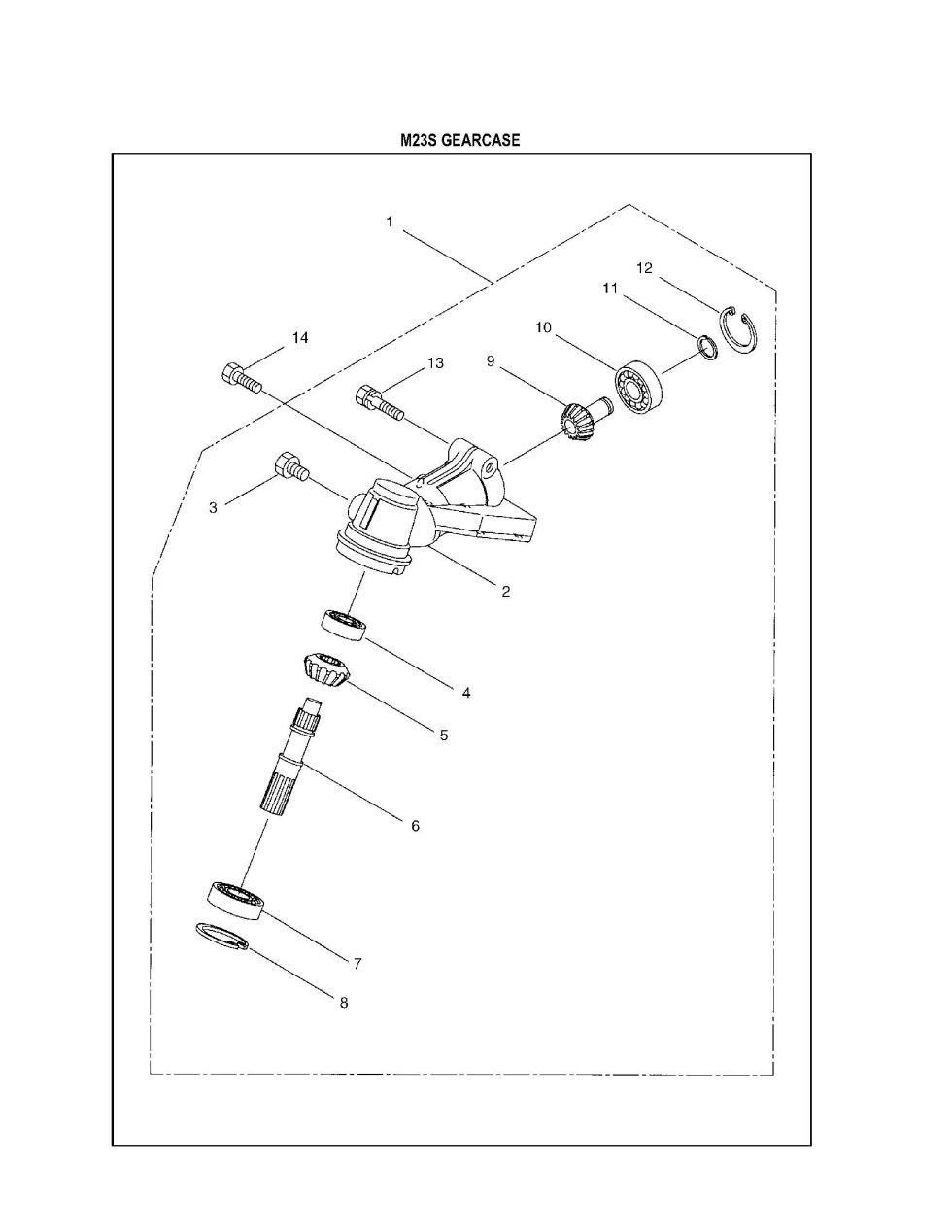

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your M23S. You have selected the Gearcase diagram for the Maruyama M23S Big M Equipment. Below you will find an interactive part diagram for the M23S Gearcase. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the M23S parts not shown in this diagram you may select from one of the other M23S part assemblies or select a different Big M Equipment altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Big M Equipment parts.

Position number SKU Product title Price
2 222888 222888 - GEARCASE
$42.99
3 089884 089884 - BOLT(M8X10)
$2.99
4 219205 219205 - BEARING #626
$22.99
5 222121 222121 - USE: 227105 (obsolete)
use part #227105
$47.99
6 219430 219430 - BLADE SHAFT
$30.99
7 212999 212999 - BEARING
$21.99
8 055185 055185 - SNAP RING
$2.99
9 222122 222122 - USE: 227105 (obsolete)
use part #227105
$47.99
10 217042 217042 - USE: 140268
$19.99
11 140269 140269 - USE: 228477
$2.99
12 140270 140270 - SNAP RING
$2.99
13 092561 092561 - BOLT
$2.99
