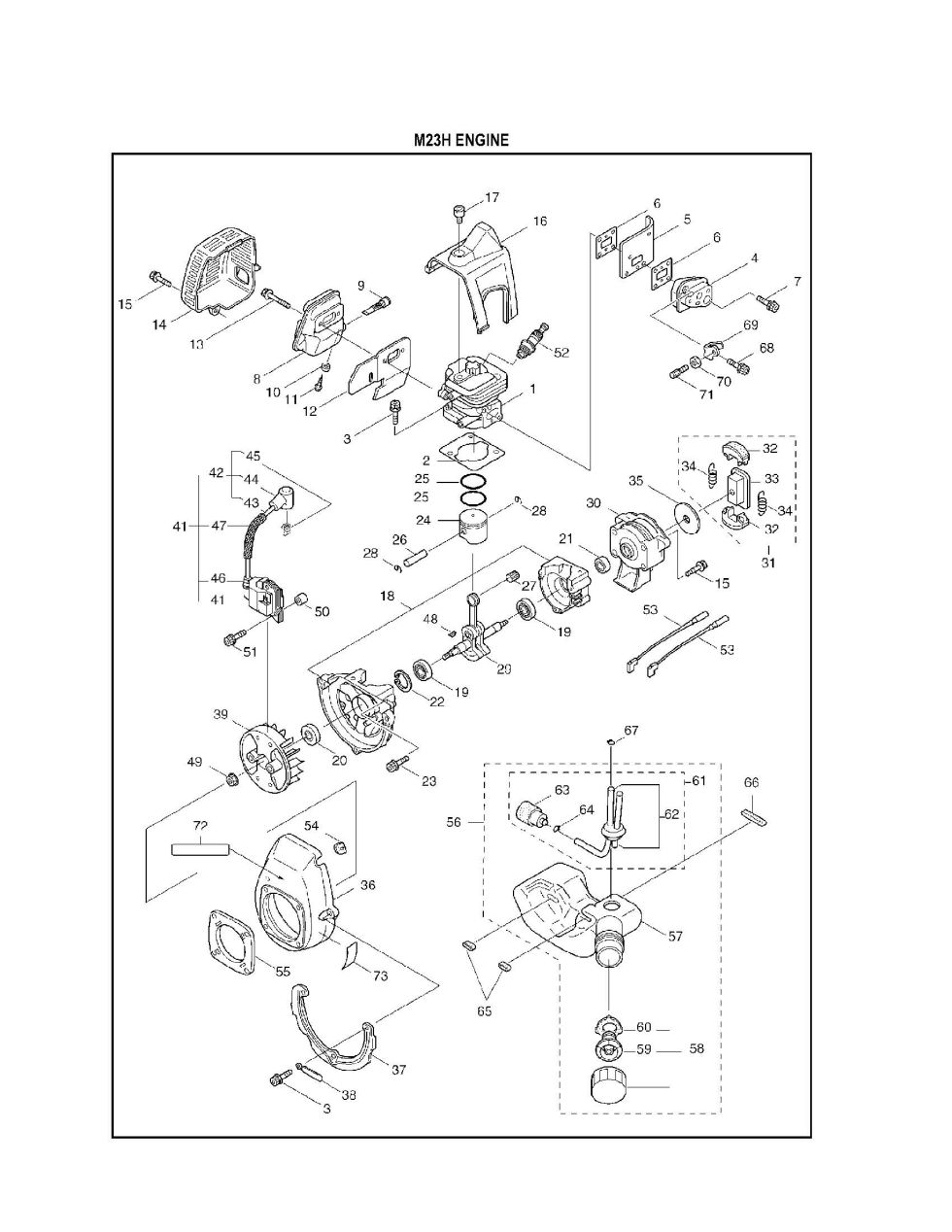

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your M23H. You have selected the Engine diagram for the Maruyama M23H Big M Equipment. Below you will find an interactive part diagram for the M23H Engine. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the M23H parts not shown in this diagram you may select from one of the other M23H part assemblies or select a different Big M Equipment altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Big M Equipment parts.

Position number SKU Product title Price
1 264981 264981 - CYLINDER
$117.99
2 263770 263770 - GASKET
$2.99
3 261250 261250 - BOLT M5X20
$2.99
4 267924 267924 - INSULATOR BLOCK
$19.99
5 265794 265794 - AIR DUCT
$2.99
6 261171 261171 - GASKET
$2.99
7 265924 265924 - CAP SCREW 5X25
$2.99
8 264729 264729 - MUFFLER
$59.99
9 262388 262388 - USE: 262395
$16.99
10 264857 264857 - WASHER
$2.99
11 089530 089530 - SCREW(M3X10)
$2.99
12 263777 263777 - GASKET
$22.99
13 264223 264223 - CAP SCREW(M5X40)
$2.99
14 263802 263802 - MUFFLER COVER
$19.99
15 261607 261607 - BOLT M5X16
$2.99
16 268892 268892 - NLA CYLINDER COV
$20.99
17 265742 265742 - USE: 286399
$5.99
18 264542 264542 - CRANKCASE
$131.99
19 261181 261181 - BEARING
$16.99
20 262712 262712 - NLA OIL SEAL
$2.99
21 261120 261120 - OIL SEAL
$2.99
22 054676 054676 - SNAP RING
$2.99
23 261246 261246 - CAP SCREW M5X25
$2.99
24 266467 266467 - USE: 281300
$31.99
25 264891 264891 - PISTON RING
$14.99
26 261036 261036 - PISTON PIN
$16.99
27 263957 263957 - BEARING NEEDLE
$21.99
28 264588 264588 - CLAMP
$2.99
28 261576 261576 - CIRCLIP
$2.99
29 264643 264643 - CRANKSHAFT
$112.99
30 264585 264585 - CLUTCH CASE
$31.99
31 264959 264959 - NLA CLUTCH ASSY
$29.99
32 264960 264960 - CLUTCH SHOE
$22.99
33 264963 264963 - CLUTCH BOSS
$20.99
34 264964 264964 - SPRING
$6.99
35 264646 264646 - NLA WASHER
$5.99
36 265561 265561 - FAN COVER
$24.99
37 265972 265972 - PLATE
$13.99
39 263570 263570 - ROTOR/ FAN
$76.99
41 267174 267174 - USE: 267401
$69.99
42 267403 267403 - SPARK PLUG WIRE ASSY
$23.99
43 267404 267404 - SPARK PLUG WIRE
$2.99
44 261074 261074 - PLUG CAP
$13.99
45 261075 261075 - CONNECTOR
$2.99
46 261072 261072 - CAP
$2.99
47 267402 267402 - INSULATOR
$2.99
48 261076 261076 - WOODRUFF KEY
$2.99
49 261077 261077 - NUT
$7.99
50 261078 261078 - NLA SPACER -
$2.99
51 261256 261256 - BOLT M4X25
$2.99
52 264652 264652 - USE: 571421
$13.99
53 267492 267492 - LEAD
$7.99
54 261202 261202 - GROMMET
$2.99
55 265081 265081 - PLATE
$7.99
56 265637 265637 - FUEL TANK ASSY
$62.99
57 264545 264545 - FUEL TANK
$27.99
58 265638 265638 - FUEL TANK CAP ASSY
$22.99
59 264580 264580 - USE: 269415
$15.99
60 265593 265593 - USE: 269417
$2.99
61 265928 265928 - FUEL PIPE PICK-UP AS
$33.99
62 265929 265929 - FUEL PIPE ASSY
$18.99
64 261117 261117 - CLIP
$2.99
65 264318 264318 - PAD
$2.99
66 263824 263824 - PAD
$2.99
68 265925 265925 - CAP SCREW M5X25
$2.99
69 265199 265199 - STAY
$10.99
70 261878 261878 - NUT
$2.99
71 264736 264736 - ADAPTER
$10.99
72 268790 268790 - NLA LABEL
$2.99
73 266425 266425 - NLA LABEL
$2.99
