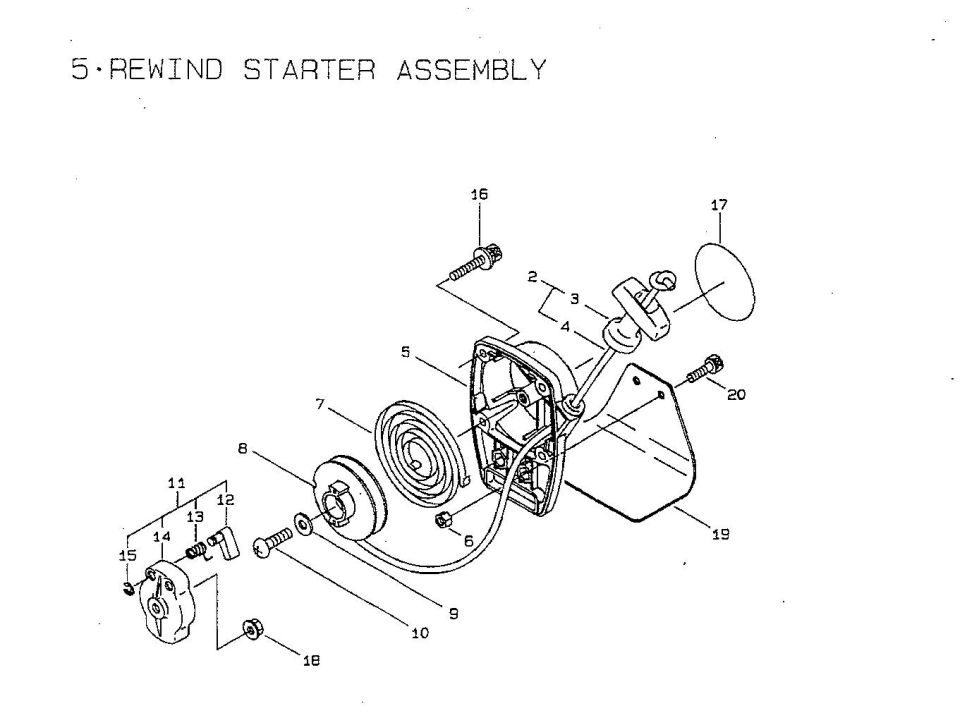

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your HT260D. You have selected the Rewind Starter diagram for the Maruyama HT260D Hedge Trimmers. Below you will find an interactive part diagram for the HT260D Rewind Starter. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the HT260D parts not shown in this diagram you may select from one of the other HT260D part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 2 | 261723 | 261723 - ROPE ASSY |
$24.99
|
|
| 3 | 261725 | 261725 - STARTER GRIP |
$9.99
|
|
| 4 | 261724 | 261724 - STARTER ROPE |
$9.99
|
|
| 5 | 262040 | 262040 - STARTER CASE |
$16.99
|
|
| 6 | 081028 | 081028 - NUT |
$2.99
|
|
| 7 | 261721 | 261721 - SPIRAL SPRING |
$24.99
|
|
| 8 | 261720 | 261720 - NLA REEL |
$13.99
|
|
| 9 | 261722 | 261722 - NLA WASHER |
$2.99
|
|
| 10 | 261624 | 261624 - NLA SET SCREW |
$2.99
|
|
| 11 | 261421 |
261421 - STARTER PAWL (obsolete) use part #263475 |
$28.99
|
|
| 12 | 261727 | 261727 - NLA PAWL |
$7.99
|
|
| 13 | 261728 | 261728 - RETURN SPRING |
$2.99
|
|
| 14 | 261726 | 261726 - PAWL CASE |
$12.99
|
|
| 15 | 020299 | 020299 - E-SHAPED SNAP RING |
$2.99
|
|
| 16 | 261257 | 261257 - CAP SCREW M4X16 |
$2.99
|
|
| 17 | 260459 | 260459 - LABEL |
$2.99
|
|
| 19 | 262415 | 262415 - USE: 264658 |
$10.99
|
|
| 20 | 261607 | 261607 - BOLT M5X16 |
$2.99
|
