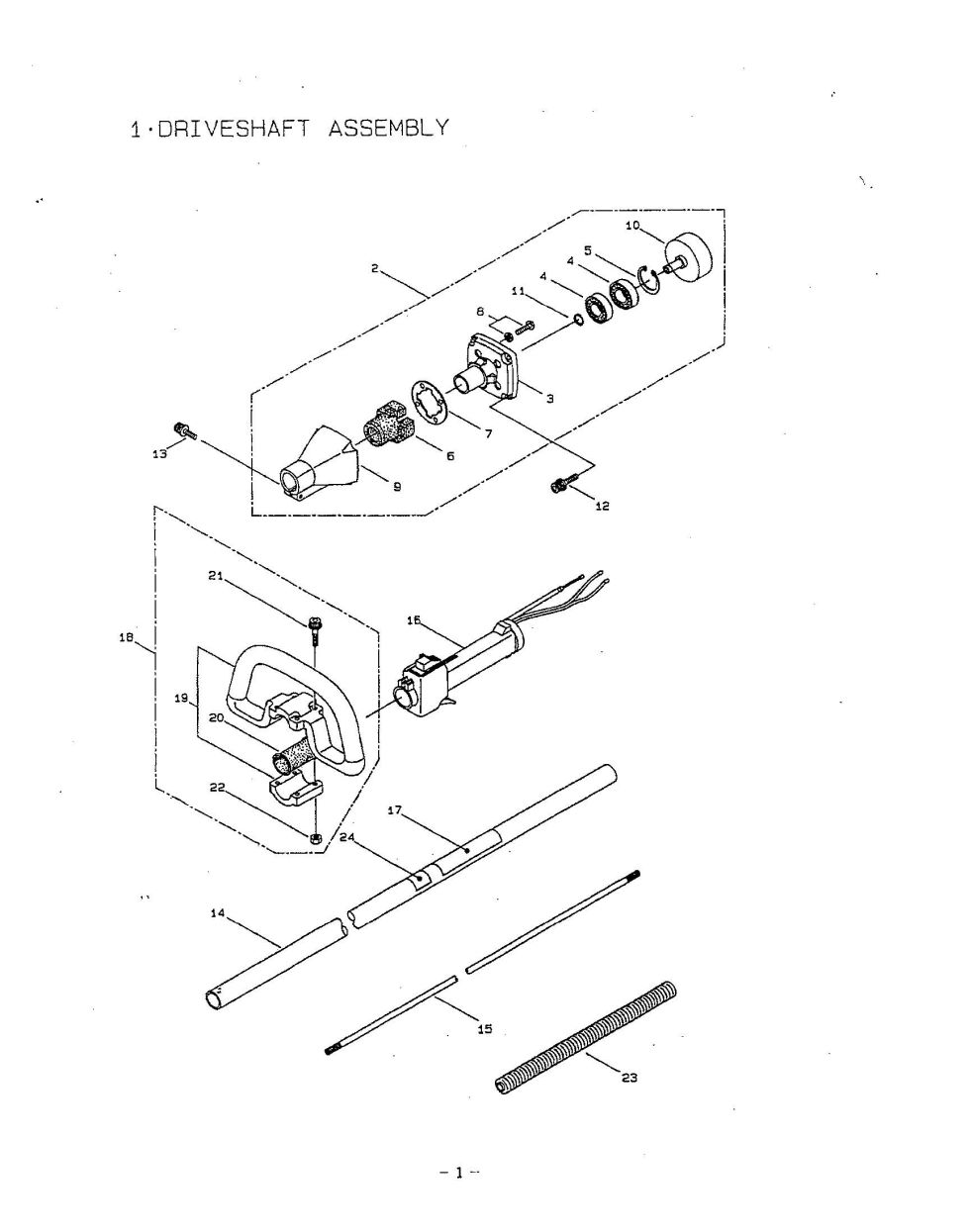

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your HT260D. You have selected the Driveshaft diagram for the Maruyama HT260D Hedge Trimmers. Below you will find an interactive part diagram for the HT260D Driveshaft. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the HT260D parts not shown in this diagram you may select from one of the other HT260D part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 2 | 215583 | 215583 - NLA CLUTCH CASE ASSY |
$162.99
|
|
| 3 | 215606 | 215606 - NLA CASE |
$32.99
|
|
| 4 | 214161 | 214161 - USE: 102680 |
$13.99
|
|
| 5 | 054676 | 054676 - SNAP RING |
$2.99
|
|
| 6 | 214162 | 214162 - BUFFER |
$28.99
|
|
| 7 | 214163 | 214163 - WASHER |
$11.99
|
|
| 8 | 092033 | 092033 - SCREW(M5X15) |
$2.99
|
|
| 9 | 215653 | 215653 - NLA BRACKET,TUBE |
$39.99
|
|
| 10 | 217722 | 217722 - CLUTCH DRUM |
$18.99
|
|
| 11 | 014210 | 014210 - C-SHAPED SNAP RING 1 |
$2.99
|
|
| 12 | 261250 | 261250 - BOLT M5X20 |
$2.99
|
|
| 13 | 261246 | 261246 - CAP SCREW M5X25 |
$2.99
|
|
| 14 | 217648 | 217648 - DRIVESHAFT TUBE |
$56.99
|
|
| 15 | 217649 | 217649 - NLA DRIVESHAFT |
$23.99
|
|
| 16 | 217658 | 217658 - NLA THROTTLE & GRIP |
$59.99
|
|
| 17 | 217653 | 217653 - LABEL, HT260D |
$15.99
|
|
| 18 | 215601 | 215601 - LOOP HANDLE ASSY |
$27.99
|
|
| 19 | 214982 | 214982 - HANDLE ASSY |
$28.99
|
|
| 20 | 213171 | 213171 - PACKING |
$8.99
|
|
| 21 | 215608 | 215608 - CAP SCREW |
$2.99
|
|
| 22 | 089846 |
089846 - NUT M5 (obsolete) use part #081027 |
$2.99
|
|
| 23 | 215403 | 215403 - PLASTIC TUBE |
$2.99
|
|
| 24 | 217879 | 217879 - LABEL |
$6.99
|
