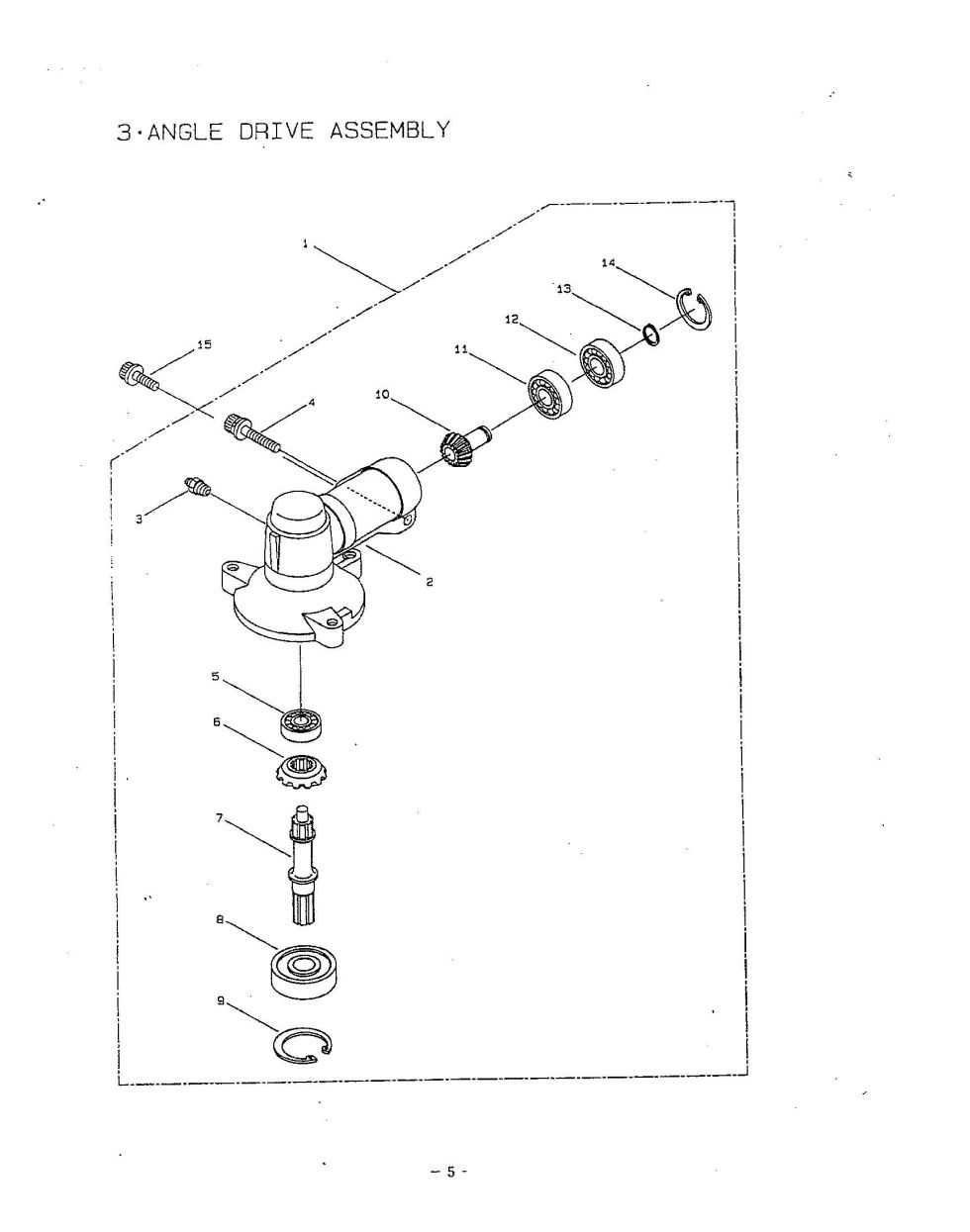

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your HT250, HT250L. You have selected the Angle Drive Assembly diagram for the Maruyama HT250, HT250L Hedge Trimmers. Below you will find an interactive part diagram for the HT250, HT250L Angle Drive Assembly. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the HT250, HT250L parts not shown in this diagram you may select from one of the other HT250, HT250L part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.
 |
| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 217655 | 217655 - GEARCASE ASSY |
$114.99
|
|
| 2 | 217656 | 217656 - GEARCASE |
$50.99
|
|
| 3 | 069553 | 069553 - GREASE FITTING |
$2.99
|
|
| 4 | 261246 | 261246 - CAP SCREW M5X25 |
$2.99
|
|
| 5 | 210554 | 210554 - BEARING |
$9.99
|
|
| 6 | 217650 | 217650 - NS GEAR |
$37.99
|
|
| 7 | 210556 | 210556 - BLADE AXIS |
$38.99
|
|
| 8 | 217659 | 217659 - BEARING #6201 2RK |
$21.99
|
|
| 9 | 016732 | 016732 - C SHAPED SNAP RING 3 |
$2.99
|
|
| 10 | 217660 | 217660 - NS PINION GEAR |
$39.99
|
|
| 11 | 210560 | 210560 - BEARING |
$10.99
|
|
| 12 | 140268 | 140268 - BEARING |
$12.99
|
|
| 13 | 140269 | 140269 - USE: 228477 |
$2.99
|
|
| 14 | 140270 | 140270 - SNAP RING |
$2.99
|
|
| 15 | 261762 | 261762 - SCREW |
$2.99
|
