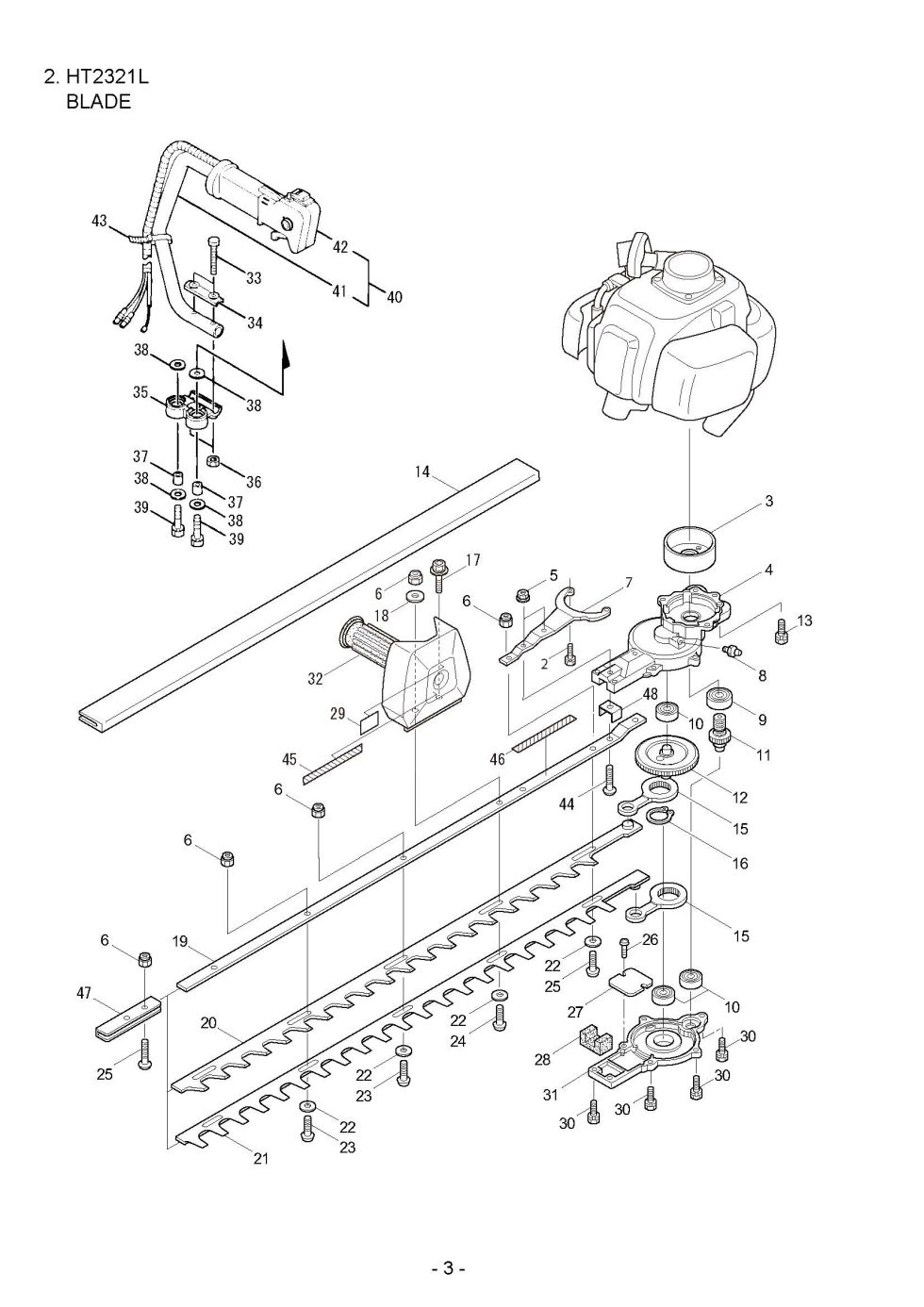

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your HT2321L. You have selected the Blade diagram for the Maruyama HT2321L Hedge Trimmers. Below you will find an interactive part diagram for the HT2321L Blade. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the HT2321L parts not shown in this diagram you may select from one of the other HT2321L part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.

Position number SKU Product title Price
2 270031 270031 - BOLT
$2.99
3 270021 270021 - DRUM
$45.99
4 270755 270755 - UPPER CASE
$122.99
5 997244 997244 - USE: 127226
$2.99
6 991941 991941 - USE: 290560
$2.99
7 270775 270775 - REINFORCING PLATE
$91.99
8 991937 991937 - NIPPLE, GREASE
$6.99
9 580767 580767 - BALL BEARING (#6001-
$29.99
10 270423 270423 - BEARING
$22.99
11 584666 584666 - PINION GEAR
$88.99
12 591443 591443 - CRANK COMPLETE
$148.99
13 270030 270030 - BOLT(M6X20)
$2.99
14 270069 270069 - BLADE COVER
$40.99
15 997282 997282 - USE: 271466
$62.99
16 580777 580777 - SNAP RING
$7.99
17 270121 270121 - SCREW
$2.99
18 991964 991964 - WASHER, PLAIN
$2.99
19 580815 580815 - GUIDE BAR 40
$61.99
20 591445 591445 - UPPER BLADE 40 INCH
$105.99
21 591446 591446 - LOWER BLADE 40 INCH
$105.99
22 991913 991913 - WASHER
$2.99
23 991914 991914 - SCREW
$10.99
24 991918 991918 - SCREW FOR FITTING BL
$10.99
25 991912 991912 - SCREW FOR FITTING BL
$5.99
26 991924 991924 - SCREW
$2.99
27 991919 991919 - PLATE ROD SLIDE
$19.99
28 270758 270758 - FELT
$14.99
29 223925 223925 - LABEL
$2.99
30 580791 580791 - HEX HEAD BOLT
$2.99
31 270756 270756 - LOWER CASE
$44.99
32 591463 591463 - RIGHT HANDLE ASSY
$62.99
33 580796 580796 - HEX HEAD BOLT
$2.99
34 577133 577133 - HANDLE FITTING
$9.99
35 577136 577136 - HANDLE BRACKET
$17.99
36 991938 991938 - HEXEGON NUT
$2.99
37 270028 270028 - COLLAR
$27.99
38 270027 270027 - WASHER
$2.99
40 270602 270602 - LEFT HANDLE ASSY
$142.99
41 270603 270603 - LEFT HANDLE
$46.99
42 270604 270604 - THROTTLE TRIGGER ASS
$76.99
43 580808 580808 - CORD BAND
$2.99
44 991931 991931 - SCREW
$2.99
45 591449 591449 - NLA LABEL
$5.99
46 591450 591450 - LABEL
$5.99
47 591464 591464 - PLATE
$19.99
48 270757 270757 - PLATE
$14.99
