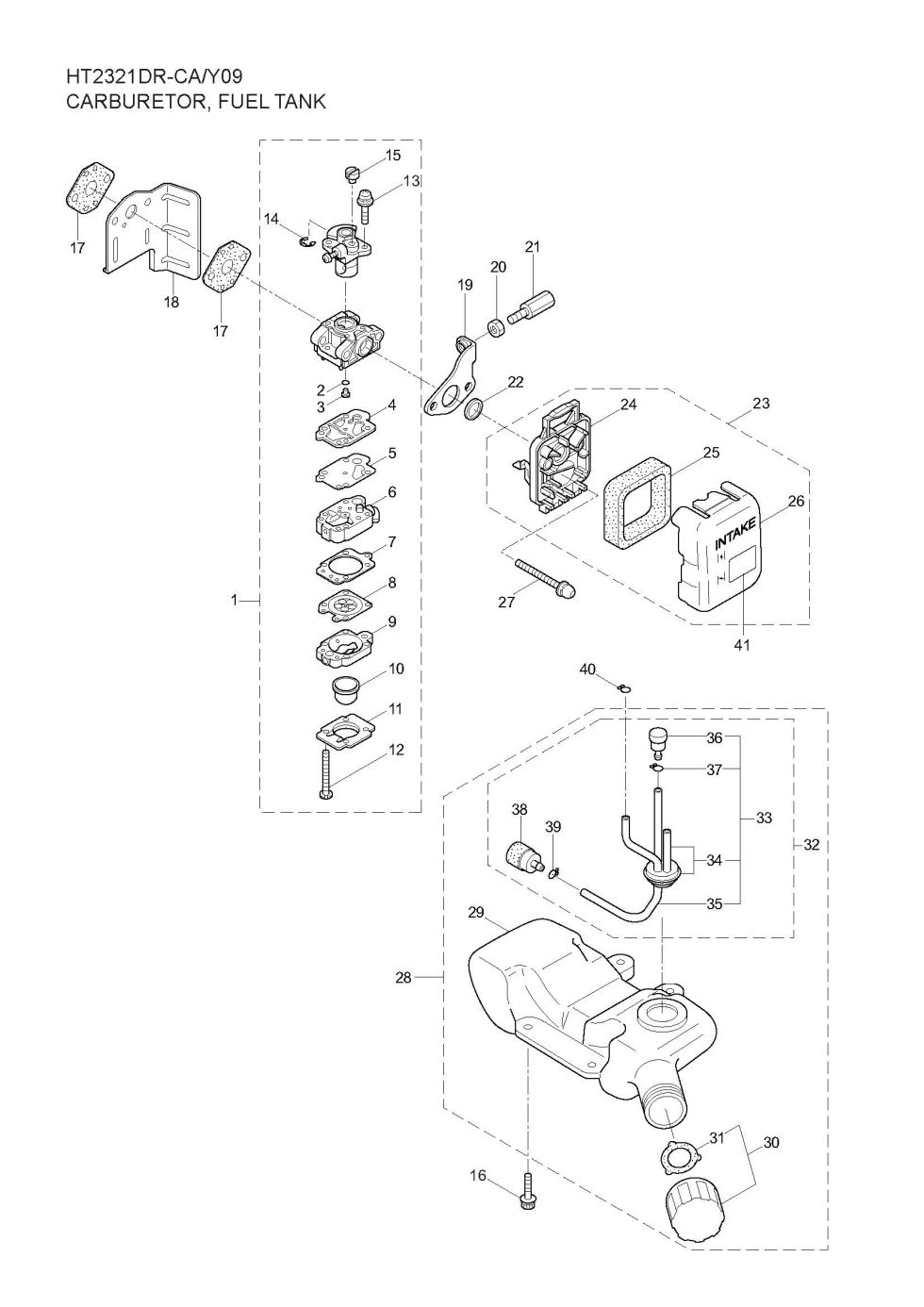

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your HT2321DR-CA. You have selected the Carburetor, Fuel Tank diagram for the Maruyama HT2321DR-CA Hedge Trimmers. Below you will find an interactive part diagram for the HT2321DR-CA Carburetor, Fuel Tank. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the HT2321DR-CA parts not shown in this diagram you may select from one of the other HT2321DR-CA part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.

Position number SKU Product title Price
1 269056 269056 - CARBURETOR ASSY.
$61.99
2 261871 261871 - O-RING
$2.99
3 268953 268953 - MAIN JET #34.5
$24.99
4 262995 262995 - GASKET
$13.99
5 262994 262994 - DIAPHRAGM FUEL PUMP
$18.99
6 268499 268499 - PUMP BODY
$47.99
7 262993 262993 - GASKET
$10.99
8 268501 268501 - USE: 283905
$11.99
9 262991 262991 - PURGE BODY
$23.99
10 261874 261874 - PRIMER
$19.99
11 262992 262992 - COVER PLATE
$11.99
12 262996 262996 - SCREW
$2.99
13 264682 264682 - SCREW
$5.99
14 261876 261876 - E-RING
$2.99
15 261658 261658 - SWIVEL
$5.99
16 268940 268940 - SCREW
$2.99
17 261864 261864 - GASKET
$2.99
18 268951 268951 - BAFFLE PLATE
$8.99
19 268535 268535 - BRACKET
$8.99
20 261878 261878 - NUT
$2.99
21 265410 265410 - ADAPTER
$2.99
22 268963 268963 - GASKET
$2.99
23 266420 266420 - AIR FILTER ASSY. (obsolete)
use part #277926
$16.99
24 266433 266433 - CASE ASSY
$21.99
25 264695 264695 - FILTER
$12.99
26 264709 264709 - CLEANER COVER (obsolete)
use part #277554
$17.99
27 264016 264016 - CAP SCREW M5X60
$2.99
28 285225 285225 - FUEL TANK ASSY
$61.99
29 284421 284421 - FUEL TANK
$30.99
30 261584 261584 - FUEL TANK CAP ASSY
$15.99
31 261105 261105 - PACKING
$2.99
32 268062 268062 - FUEL PIPE PICK-UP AS
$32.99
33 268185 268185 - FUEL PIPE ASSY (obsolete)
use part #282539
$34.99
34 268497 268497 - FUEL PIPE & GROMMET
$23.99
35 262649 262649 - FUEL PIPE
$2.99
36 261590 261590 - BREATHER SUB ASSY
$12.99
37 261117 261117 - CLIP
$2.99
41 285188 285188 - LABEL
$2.99
