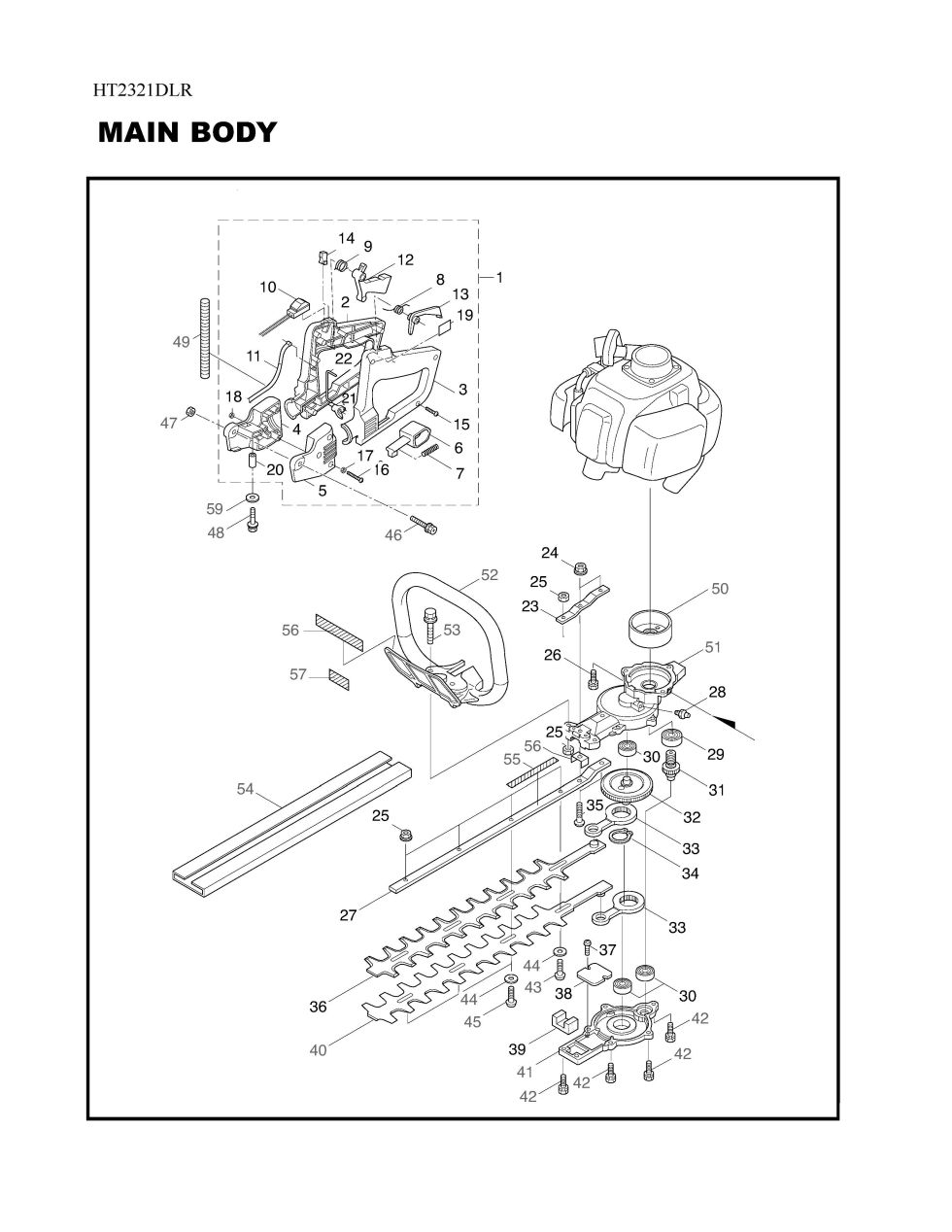

Thank you for shopping at MaruyamaParts.com and for using the parts lookup system to find parts for your HT2321DLR. You have selected the Main Body diagram for the Maruyama HT2321DLR Hedge Trimmers. Below you will find an interactive part diagram for the HT2321DLR Main Body. If you find the part in the diagram you need you may click on the item number in the diagram or find it in the parts list below the diagram. For the HT2321DLR parts not shown in this diagram you may select from one of the other HT2321DLR part assemblies or select a different Hedge Trimmers altogether. Thanks for shopping with us at MaruyamaParts.com and for making us your source for Maruyama Hedge Trimmers parts.

Position number SKU Product title Price
1 270884 270884 - REAR HANDLE ASSY
$88.99
2 270468 270468 - REAR HANDLE(RT)
$37.99
3 270469 270469 - REAR HANDLE(L)
$30.99
4 270397 270397 - HANDLE STAY(RT)
$19.99
5 270398 270398 - HANDLE STAY(L)
$19.99
6 270470 270470 - LOCK LEVER
$26.99
7 270400 270400 - SPRING
$18.99
8 270401 270401 - SPRING
$17.99
9 270402 270402 - SPRING
$17.99
10 270886 270886 - SWITCH, STOP
$34.99
11 270885 270885 - CABLE COMPLETE
$18.99
12 270472 270472 - LEVER
$19.99
13 270406 270406 - STOP LEVER
$17.99
14 270618 270618 - STOPPER
$13.99
15 270408 270408 - SCREW
$2.99
16 270409 270409 - SCREW
$2.99
17 270410 270410 - WASHER
$2.99
18 081024 081024 - NUT
$2.99
19 270085 270085 - LABEL
$2.99
20 270424 270424 - SPACER
$5.99
21 270473 270473 - LOCK LEVER STOPPER
$11.99
22 270474 270474 - ROD
$17.99
23 270759 270759 - PLATE
$17.99
24 103549 103549 - NLA FLANGE NUT
$2.99
25 290560 290560 - HEXEGON UNUT
$2.99
26 270030 270030 - BOLT(M6X20)
$2.99
27 270056 270056 - BLADE GUIDE - 30IN
$57.99
28 991937 991937 - NIPPLE, GREASE
$6.99
29 580767 580767 - BALL BEARING (#6001-
$29.99
30 270423 270423 - BEARING
$22.99
31 584666 584666 - PINION GEAR
$88.99
32 591443 591443 - CRANK COMPLETE
$148.99
33 997282 997282 - USE: 271466
$62.99
34 580777 580777 - SNAP RING
$7.99
35 991931 991931 - SCREW
$2.99
36 582446 582446 - UPPER BLADE 30 INCH
$91.99
37 991924 991924 - SCREW
$2.99
38 991919 991919 - PLATE ROD SLIDE
$19.99
39 270758 270758 - FELT
$14.99
40 582428 582428 - LOWER BLADE 30 INCH
$91.99
41 270756 270756 - LOWER CASE
$44.99
42 580791 580791 - HEX HEAD BOLT
$2.99
43 991912 991912 - SCREW FOR FITTING BL
$5.99
44 991913 991913 - WASHER
$2.99
45 991914 991914 - SCREW
$10.99
46 270420 270420 - SCREW
$2.99
47 997253 997253 - HEX NUT(M6)
$2.99
48 270120 270120 - SCREW(M6X40)
$2.99
49 270615 270615 - TUBE
$9.99
50 270021 270021 - DRUM
$45.99
51 270760 270760 - UPPER CASE
$126.99
52 582441 582441 - FRONT HANDLE
$87.99
53 270029 270029 - BOLT M6X35
$2.99
54 270071 270071 - BLADE COVER
$29.99
55 591450 591450 - LABEL
$5.99
56 591449 591449 - NLA LABEL
$5.99
57 223925 223925 - LABEL
$2.99
59 270843 270843 - WASHER
$2.99
