 Welcome to the Maruyama parts lookup system. With your model number you will be able to find all of the parts for your Maruyama quickly and easily. If you are not able to locate the Maruyama parts you need or do not see your specific model in our catalog please do not hesitate to contact us. |
 |

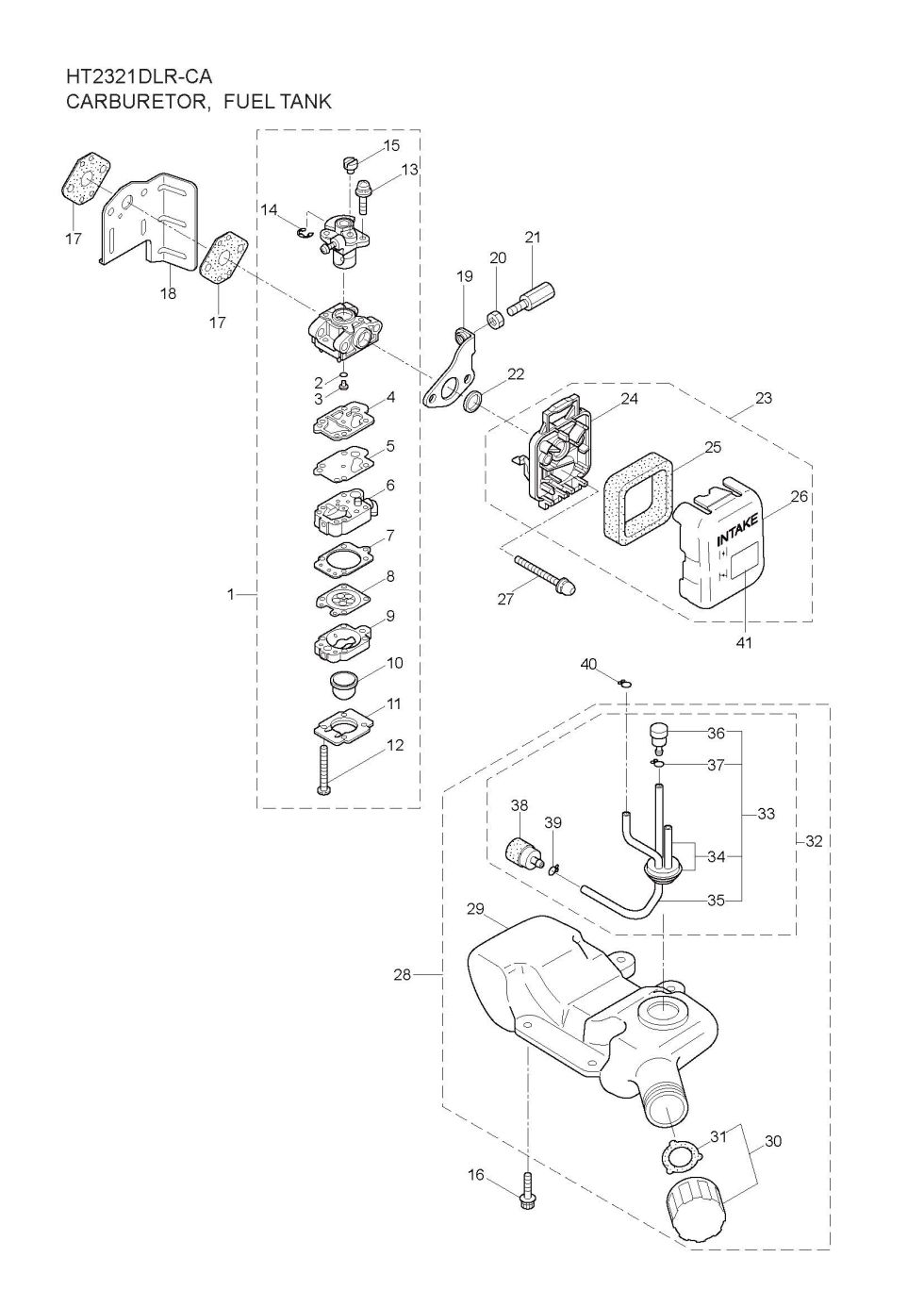

| Position number | SKU | Product title | Price | |
|---|---|---|---|---|
| 1 | 269056 | 269056 - CARBURETOR ASSY. |
$61.99
|
|
| 2 | 261871 | 261871 - O-RING |
$2.99
|
|
| 3 | 268953 | 268953 - MAIN JET #34.5 |
$24.99
|
|
| 4 | 262995 | 262995 - GASKET |
$13.99
|
|
| 5 | 262994 | 262994 - DIAPHRAGM FUEL PUMP |
$18.99
|
|
| 6 | 268499 | 268499 - PUMP BODY |
$47.99
|
|
| 7 | 262993 | 262993 - GASKET |
$10.99
|
|
| 8 | 268501 | 268501 - USE: 283905 |
$11.99
|
|
| 9 | 262991 | 262991 - PURGE BODY |
$23.99
|
|
| 10 | 261874 | 261874 - PRIMER |
$19.99
|
|
| 11 | 262992 | 262992 - COVER PLATE |
$11.99
|
|
| 12 | 262996 | 262996 - SCREW |
$2.99
|
|
| 13 | 264682 | 264682 - SCREW |
$5.99
|
|
| 14 | 261876 | 261876 - E-RING |
$2.99
|
|
| 15 | 261658 | 261658 - SWIVEL |
$5.99
|
|
| 16 | 268940 | 268940 - SCREW |
$2.99
|
|
| 17 | 261864 | 261864 - GASKET |
$2.99
|
|
| 18 | 268951 | 268951 - BAFFLE PLATE |
$8.99
|
|
| 19 | 268535 | 268535 - BRACKET |
$8.99
|
|
| 20 | 261878 | 261878 - NUT |
$2.99
|
|
| 21 | 265410 | 265410 - ADAPTER |
$2.99
|
|
| 22 | 268963 | 268963 - GASKET |
$2.99
|
|
| 23 | 266420 |
266420 - AIR FILTER ASSY. (obsolete) use part #277926 |
$16.99
|
|
| 24 | 266433 | 266433 - CASE ASSY |
$21.99
|
|
| 25 | 264695 | 264695 - FILTER |
$12.99
|
|
| 26 | 264709 |
264709 - CLEANER COVER (obsolete) use part #277554 |
$17.99
|
|
| 27 | 264016 | 264016 - CAP SCREW M5X60 |
$2.99
|
|
| 28 | 285225 | 285225 - FUEL TANK ASSY |
$61.99
|
|
| 29 | 284421 | 284421 - FUEL TANK |
$30.99
|
|
| 30 | 261584 | 261584 - FUEL TANK CAP ASSY |
$15.99
|
|
| 31 | 261105 | 261105 - PACKING |
$2.99
|
|
| 32 | 268062 | 268062 - FUEL PIPE PICK-UP AS |
$32.99
|
|
| 33 | 268185 |
268185 - FUEL PIPE ASSY (obsolete) use part #282539 |
$34.99
|
|
| 34 | 268497 | 268497 - FUEL PIPE & GROMMET |
$23.99
|
|
| 35 | 262649 | 262649 - FUEL PIPE |
$2.99
|
|
| 36 | 261590 | 261590 - BREATHER SUB ASSY |
$12.99
|
|
| 37 | 261117 | 261117 - CLIP |
$2.99
|
|
| 41 | 285188 | 285188 - LABEL |
$2.99
|
